Wago 2216-7607

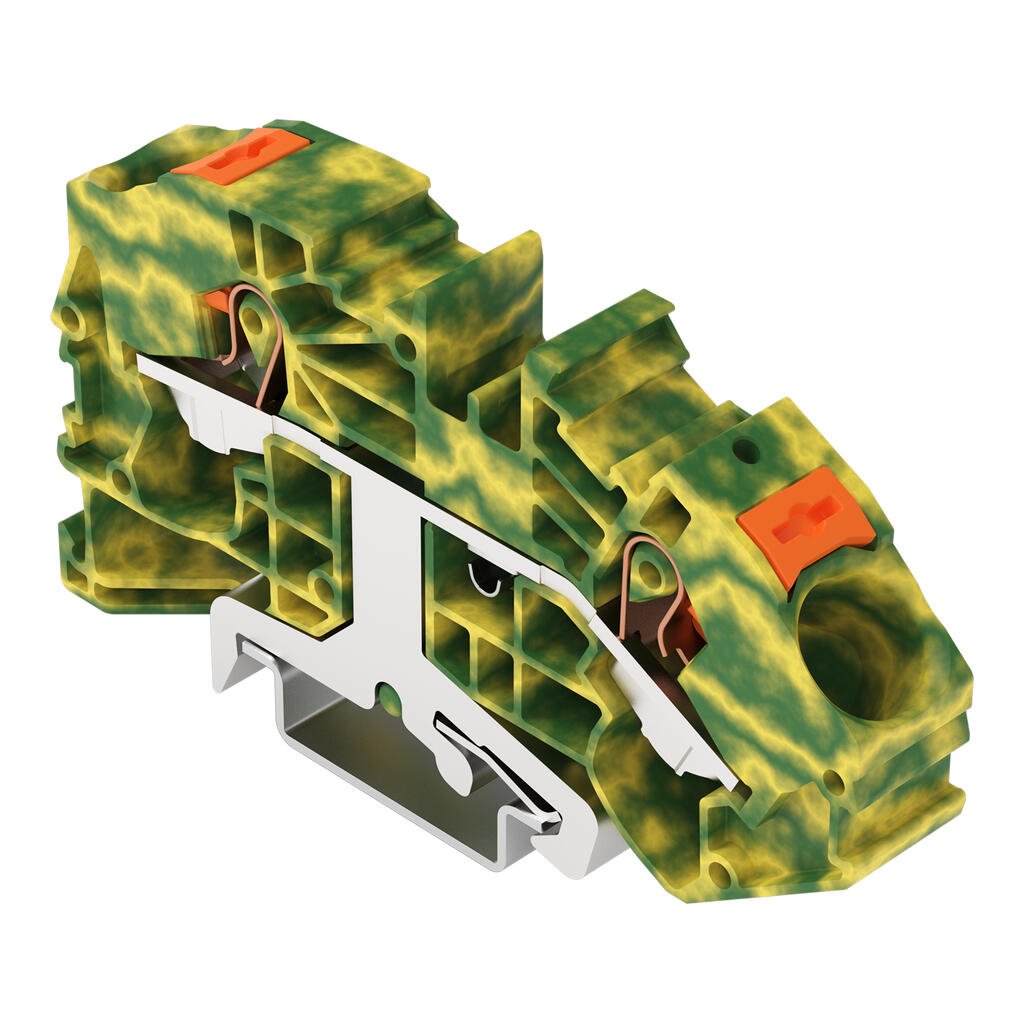

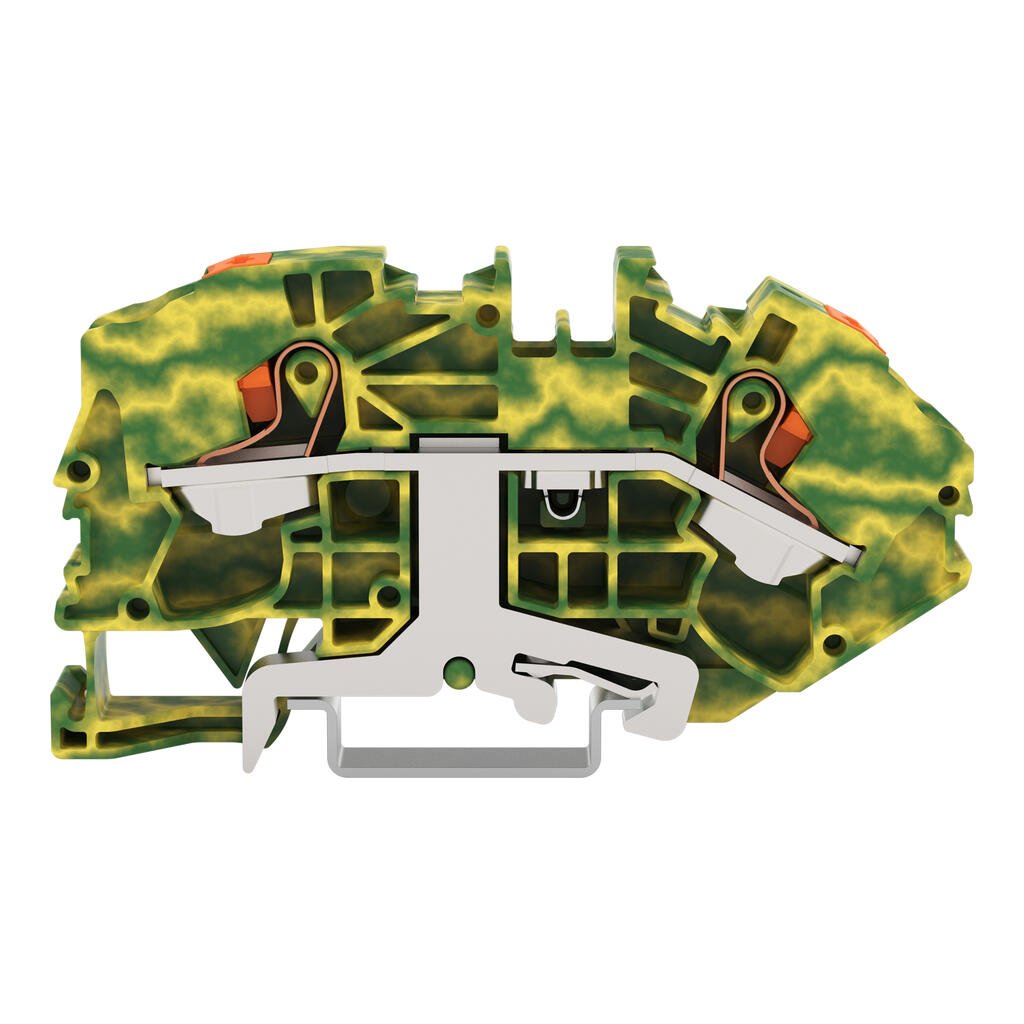

Ground terminal block, 2216 Series, green-yellowOur ground terminal block (item number 2216-7607) ensures effortless electrical installations. Ensure that the strip lengths are between 18 and 20 mm w…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ground terminal block, 2216 Series, green-yellowOur ground terminal block (item number 2216-7607) ensures effortless electrical installations. Ensure that the strip lengths are between 18 and 20 mm when connecting conductors to this ground terminal block. The ground terminal block also functions as a supply module. This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. This ground terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 16 mm².
Specification
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
| Number of jumper slots | 2 |
Connection data - Connection 1
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Push-button |
| Connectable conductor materials | Copper |
| Nominal cross-section | 16 mm² |
| Solid conductor | 0.5 … 16 mm² / 20 … 6 AWG |
| Solid conductor; push-in termination | 6 … 16 mm² / 14 … 6 AWG |
| Fine-stranded conductor | 0.5 … 25 mm² / 20 … 4 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 16 mm² / 20 … 6 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 6 … 16 mm² / 10 … 6 AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. AWG specifications were converted according to IEC. |
| Strip length | 18 … 20 mm / 0.71 … 0.79 inches |
| Wiring direction | Front-entry wiring |

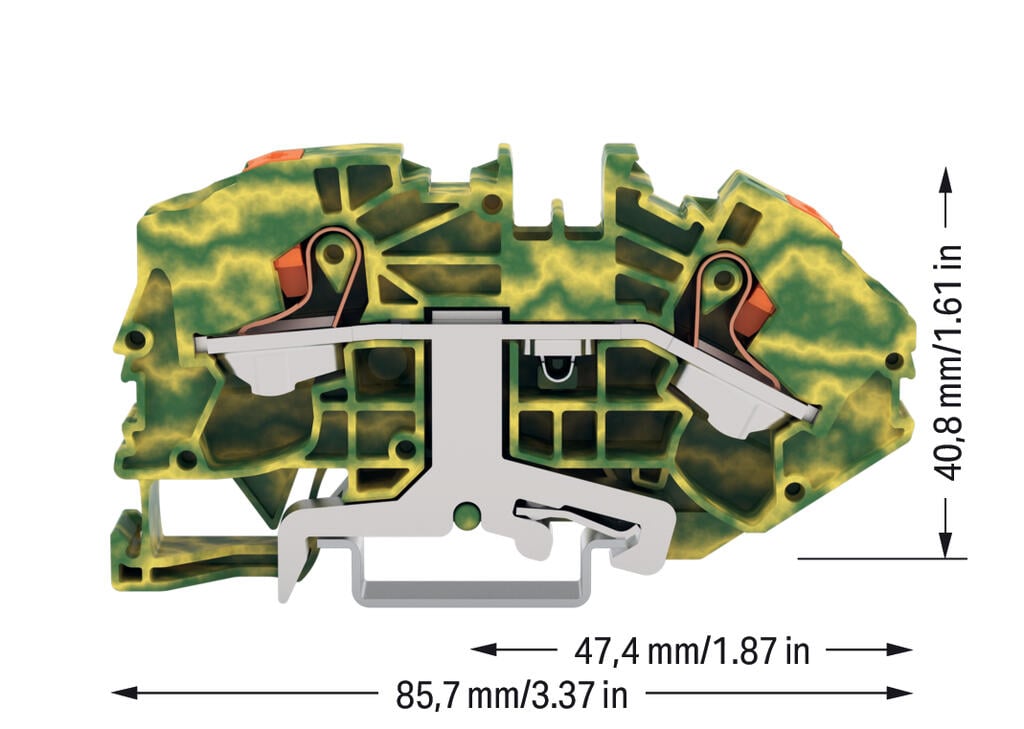

Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 85.7 mm / 3.374 inches |
| Depth from upper-edge of DIN-rail | 40.8 mm / 1.606 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Marking level | Center/side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | green-yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.474 MJ |
| Weight | 42.3 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| PU (SPU) | 20 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | PL |
| GTIN | 4066966487220 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ETIM 9.0 | EC000897 |
| ETIM 10.0 | EC000897 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | 44f6cb6a-4f80-4fb9-b136-c583b4b5f61f |
| SCIP notification number (Belgium) | 9ed3163e-c366-4947-8627-bfa57f096e20 |
| SCIP notification number (Bulgaria) | ab840c48-f140-4246-977e-8a33195bc3ff |
| SCIP notification number (Czech Republic) | 007819e0-251f-4778-89aa-5cbda8184461 |
| SCIP notification number (Denmark) | d3459e29-02ee-48bc-8e1f-15fff420e321 |
| SCIP notification number (Finland) | a656a1a4-68c9-4251-a262-d679fbda8d0a |
| SCIP notification number (France) | 4f906bce-751c-48bb-ad7e-e4158d4c0ba6 |
| SCIP notification number (Germany) | effe7840-66f0-498b-9fd7-559c993dd46b |
| SCIP notification number (Hungary) | f5dc1f43-ea90-45a3-9596-e77e4e79cf1e |
| SCIP notification number (Italy) | 6927de61-7355-4a27-b6ef-13e301a346a6 |
| SCIP notification number (Netherlands) | bc7f748f-7344-4899-aaeb-d3355f295db5 |
| SCIP notification number (Poland) | dbbc75f9-8b6b-4e95-ad07-3ee15bb0fbf3 |
| SCIP notification number (Romania) | 7c858e9b-0786-4bbe-b97e-97f7c8de37cd |
| SCIP notification number (Sweden) | db7570b0-8ac5-4f37-aef8-b9cc5d833b67 |
