Wago 221-942/000-006

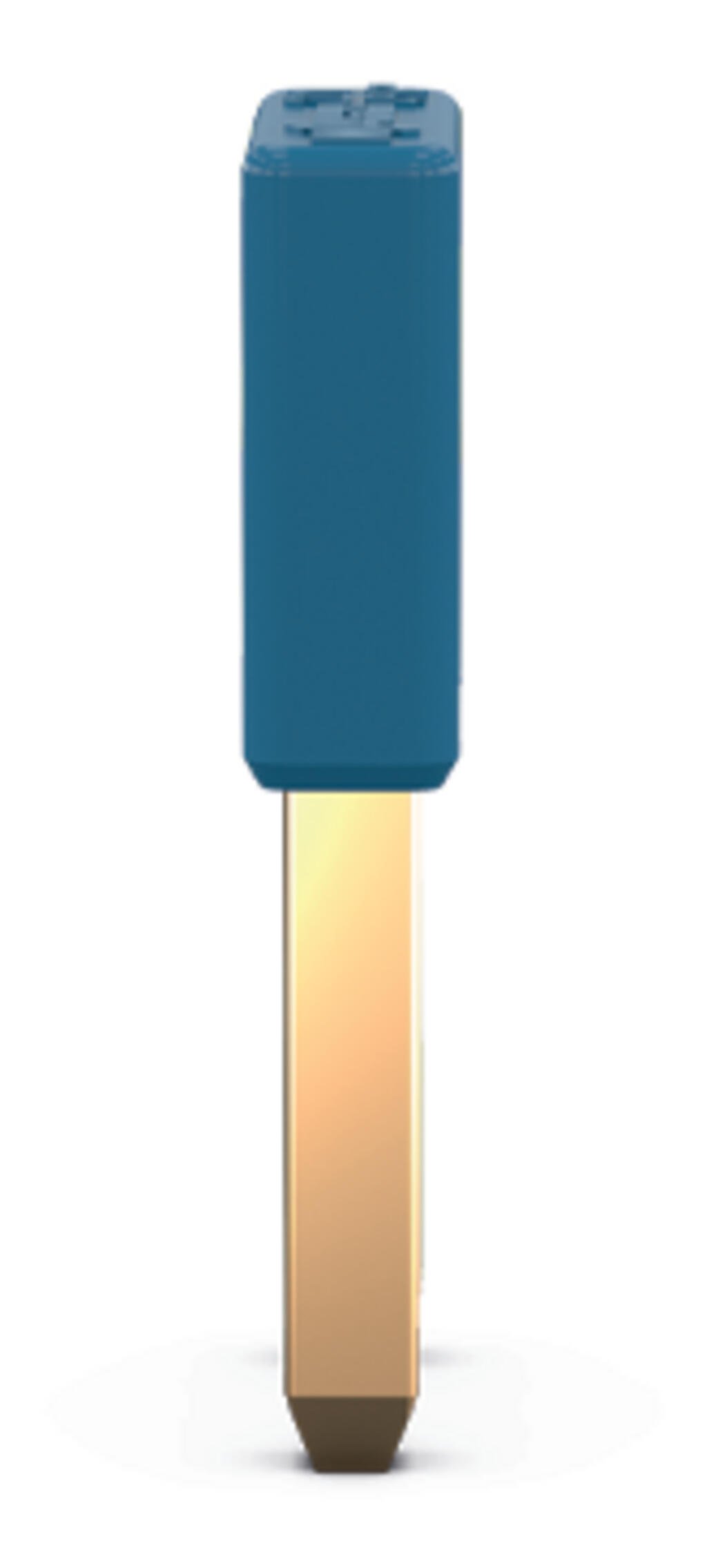

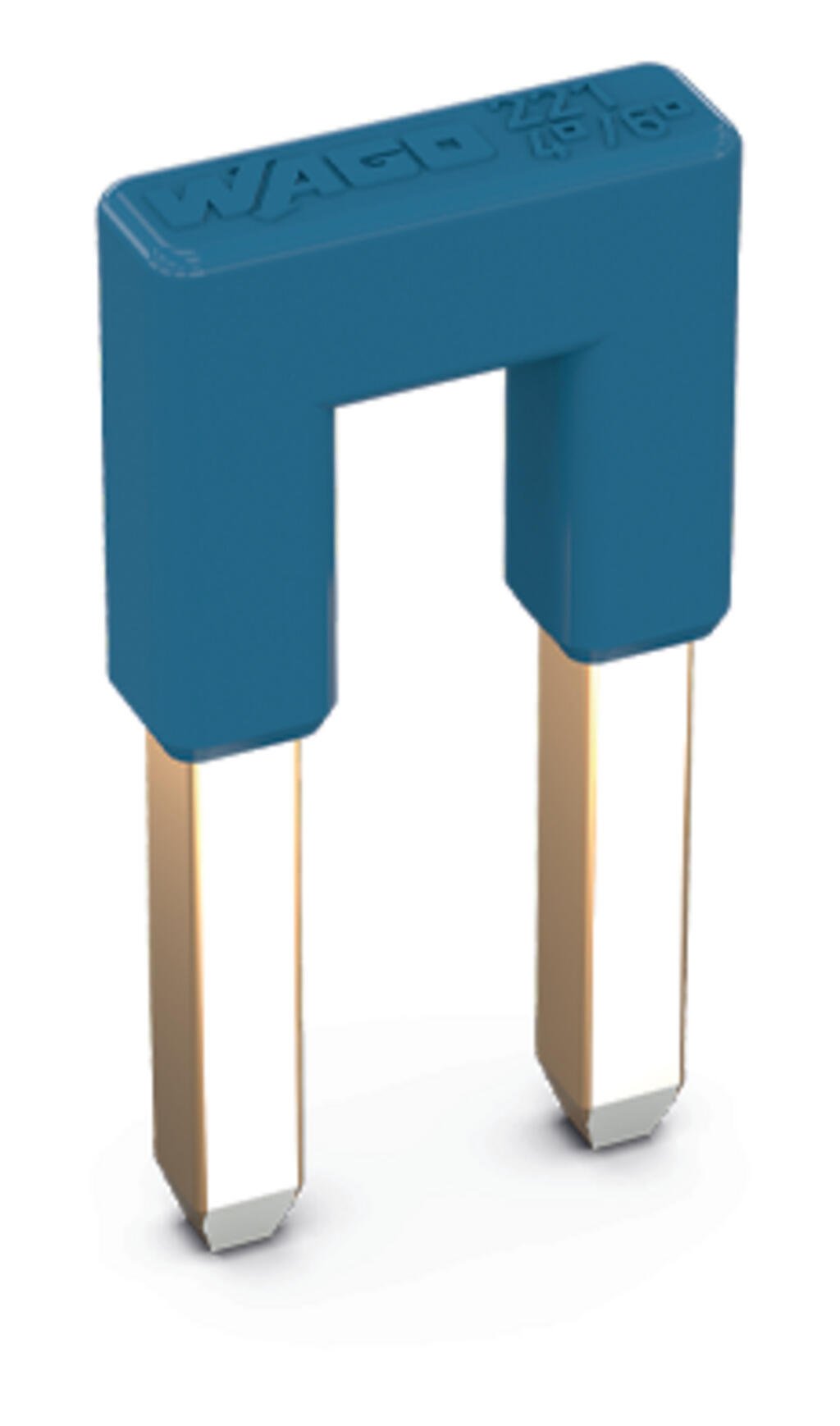

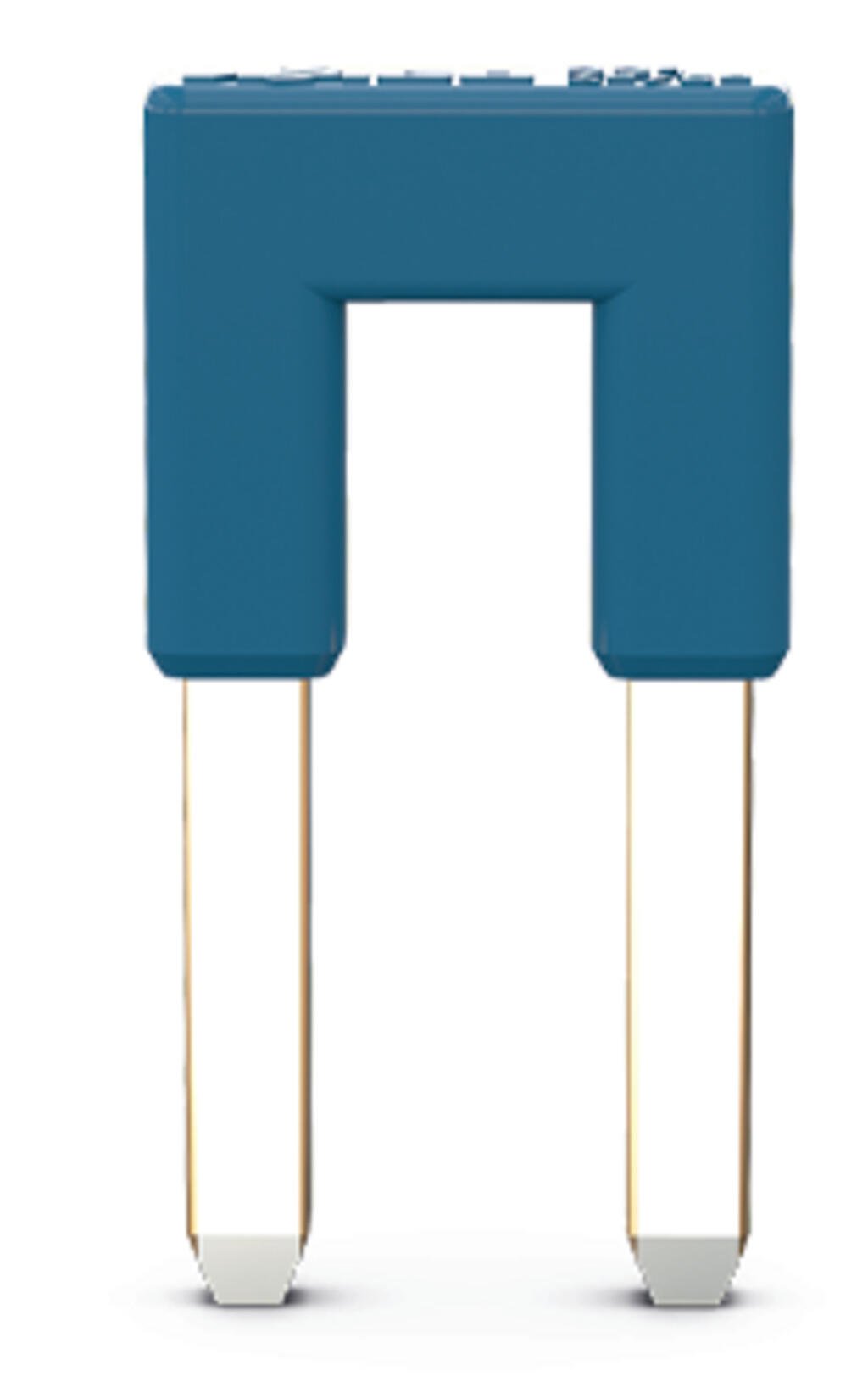

Jumper; for conductor entry; 2-way; insulated; blue 221-942/000-006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Jumper; for conductor entry; 2-way; insulated; blue 221-942/000-006
Specification
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 400 V |
|---|---|
| Rated current | 41 A |
Physical data
| Width | 12.3 mm / 0.484 inches |
|---|---|
| Height | 3.8 mm / 0.15 inches |
| Depth | 23.9 mm / 0.941 inches |
| Jumper assignment | 1-2 |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | blue |
| Insulation material (main housing) | Polyamide (PA66) |
| Weight of insulation material | 0.28 g |
| Weight | 2.7 g |
Environmental requirements
| Continuous operating temperature | -60 … +105 °C |
|---|
Commercial data
| PU (SPU) | 5 pcs |
|---|---|
| Packaging type | Bag |
| Country of origin | CN |
| GTIN | 4055144068115 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| ETIM 9.0 | EC000489 |
| ETIM 10.0 | EC000489 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
