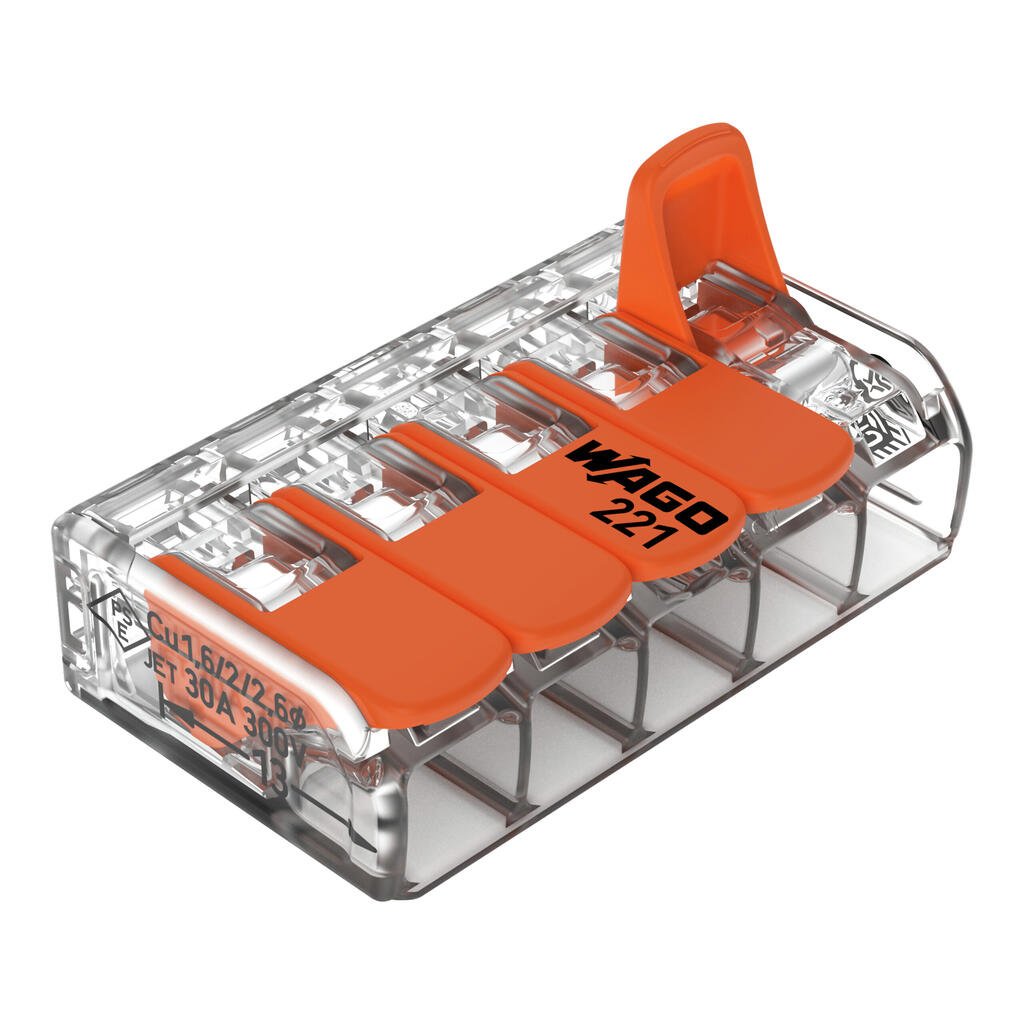

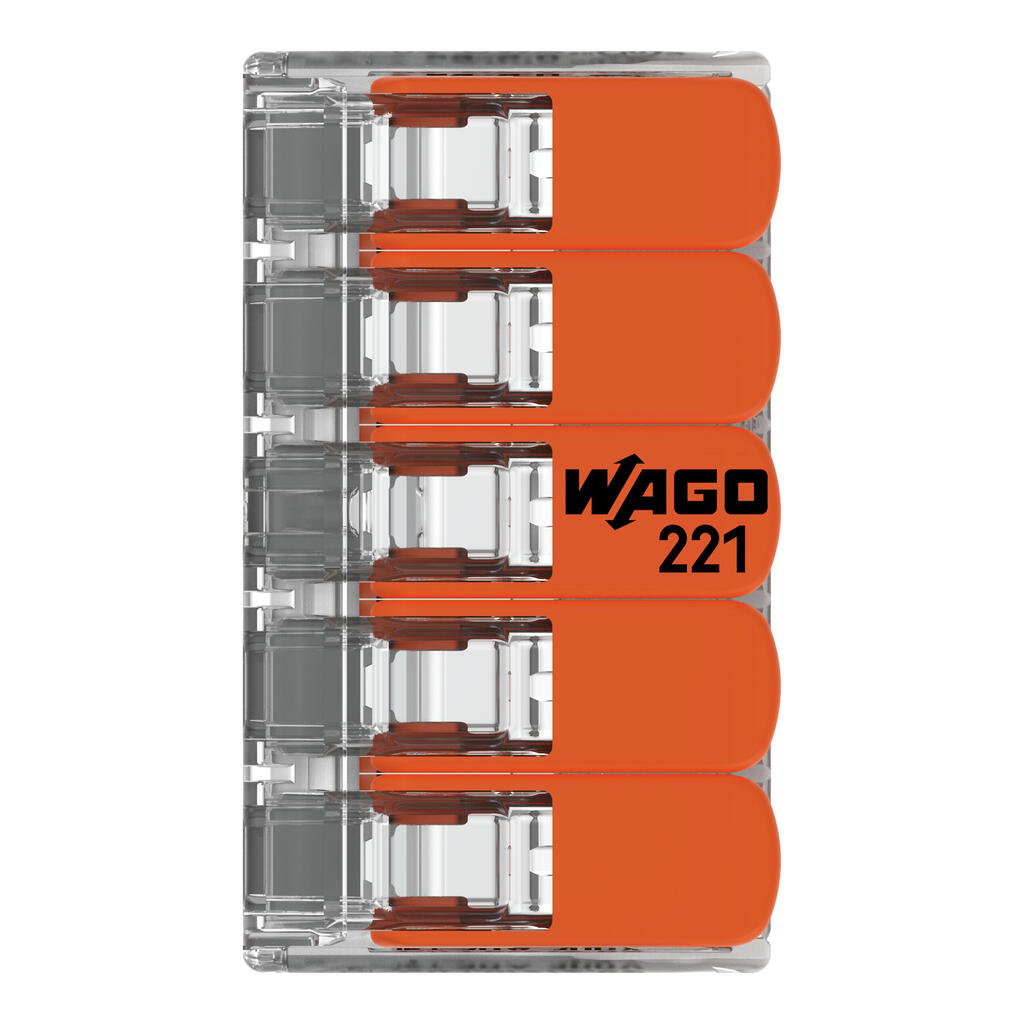

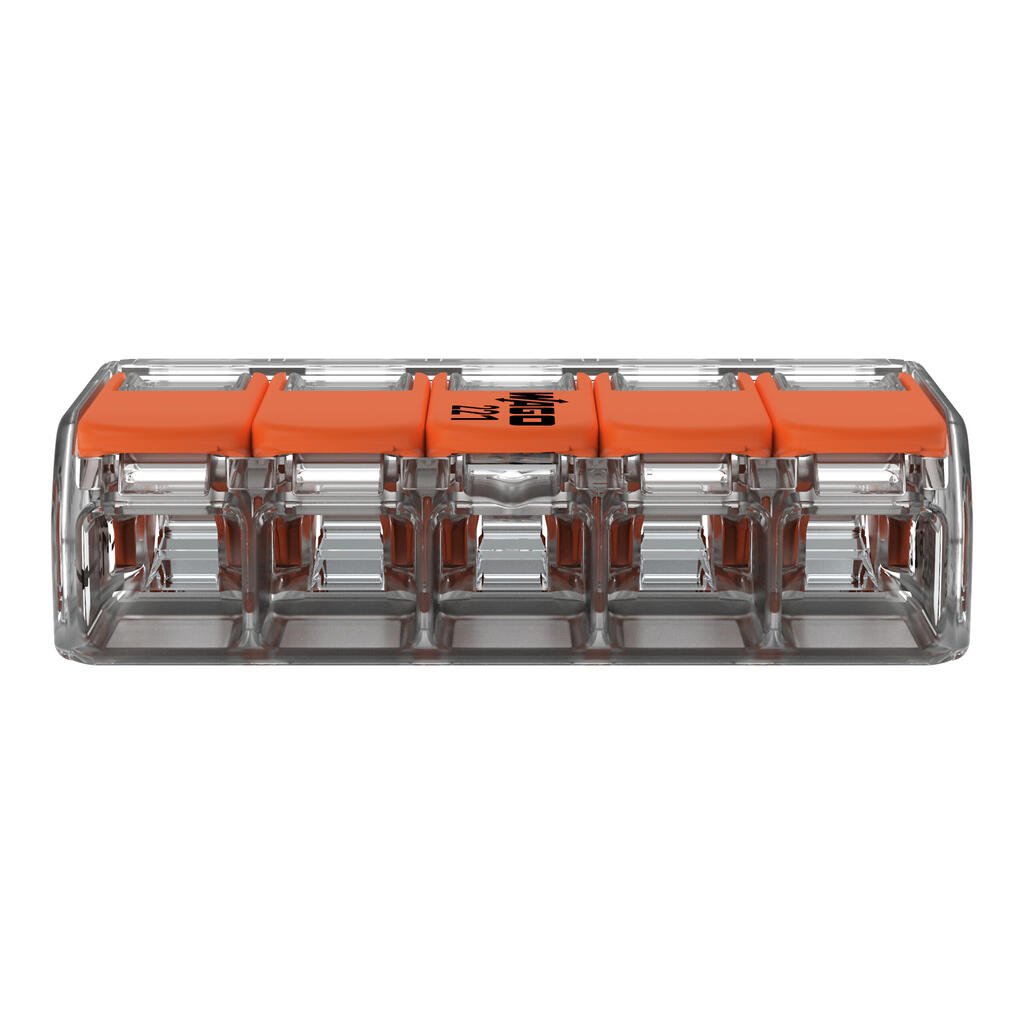

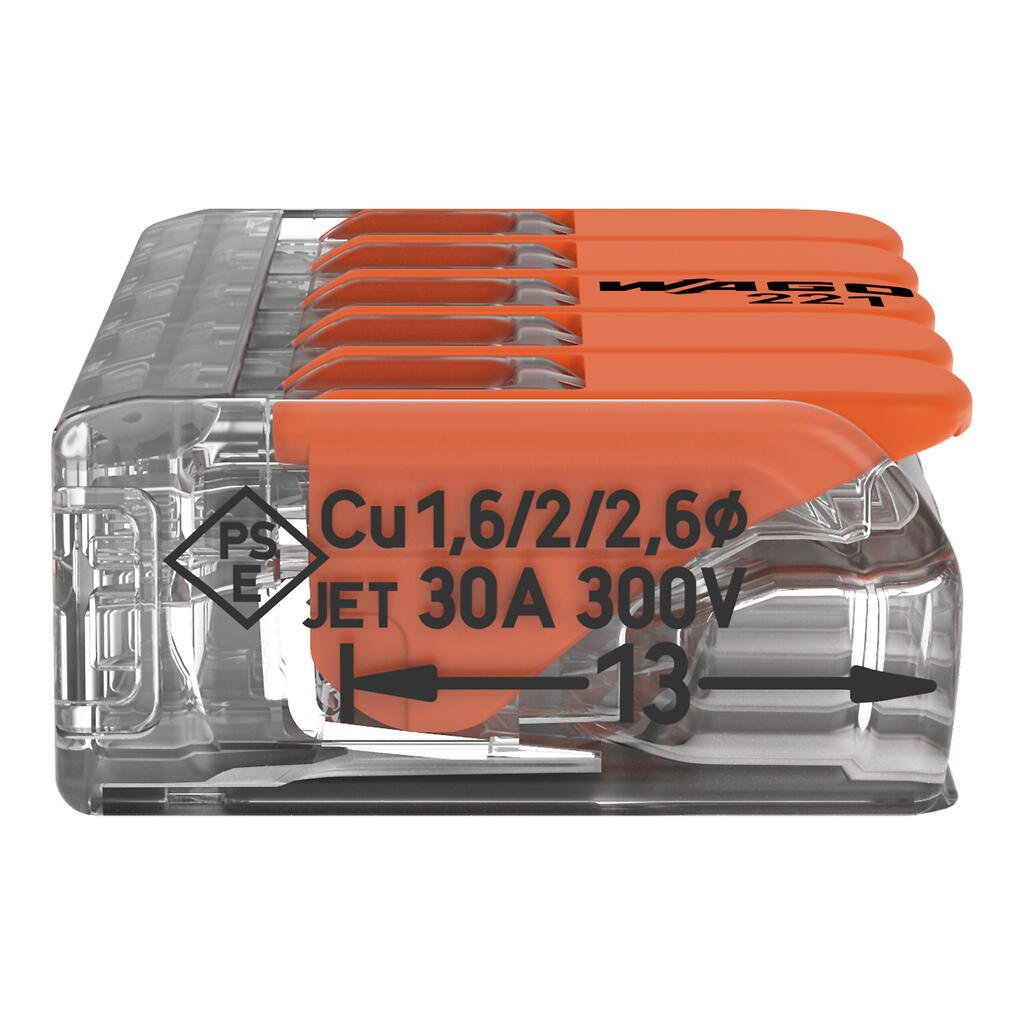

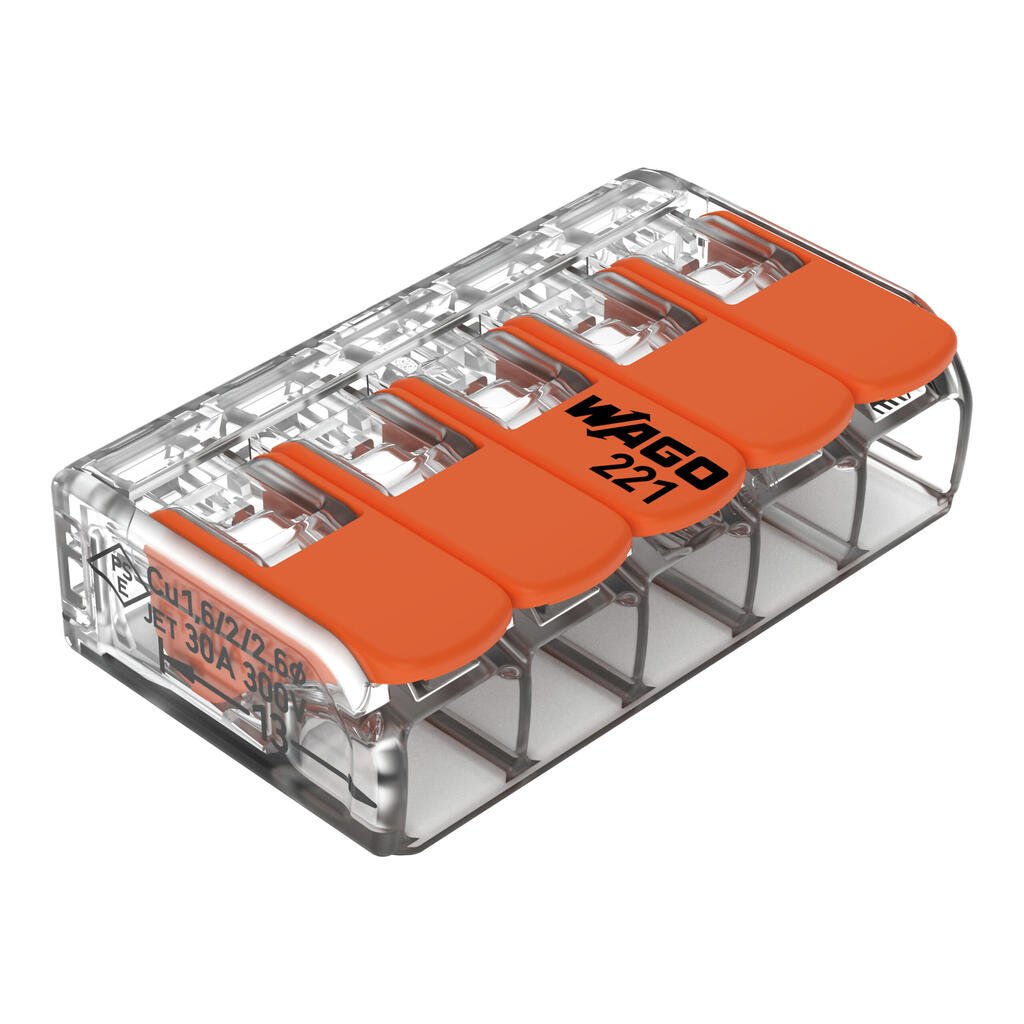

Wago 221-615

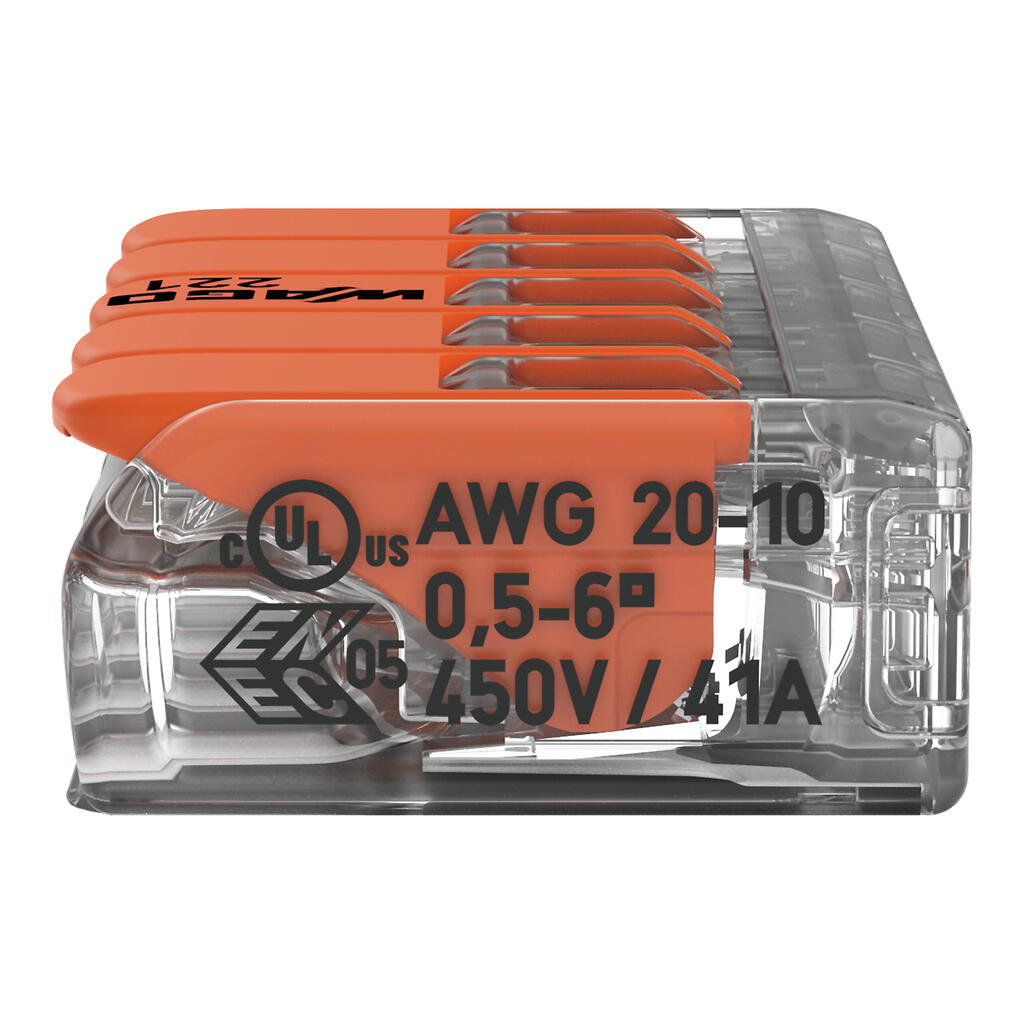

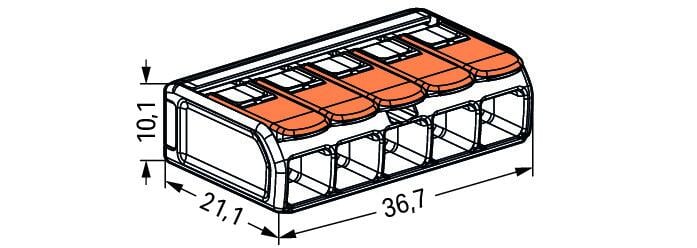

Splicing connector with levers, 221 Series, transparentSplicing connector with levers (item number 221-615) is designed for fault-free electrical installations. From intercom system wiring to electric ovens—connecting different conductor types is quick and hassle-free with WAGO’s practical 221 Series splicing connector. Conductors should only be connected to splicing connector with levers if their strip length is between 12 and 14 mm . Our splicing connector is rated for 450 V and is designed to handle a rated current of up to 41 A. It is therefore suitable for high-load applications. Featuring conductor terminals along with CAGE CLAMP®, this connector delivers reliable performance. Our CAGE CLAMP® connection offers a dependable and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. The item’s dimensions are (36.7 x 10.1 x 21.1) mm (width x height x depth). Splicing connector with levers is suitable for conductor cross sections ranging from 0.5 mm² to 6 mm².WAGO’s 221 Series Splicing Connector with levers impresses with its innovative design for different conductor cross-sections. That’s why WAGO’s lever-equipped splicing connector holds a unique trademark within electrical interconnection technology. The flat levers, which fit seamlessly into the 221’s base, act like a cast when closed and can be positioned neatly in any housing without disturbing edges. Due to the wide design of each leaver, they can all be operated perfectly without tools for convenient conductor terminations. The transparent housing displays robust technology and enables immediate visual inspection for the correct contact of solid, stranded and fine-stranded conductors. Resembling piano keys, the levers’ design perfectly combines the functional and aesthetic connection technology “Made by WAGO.” This product is designed for specific Ex applications (please refer to the product datasheet).
