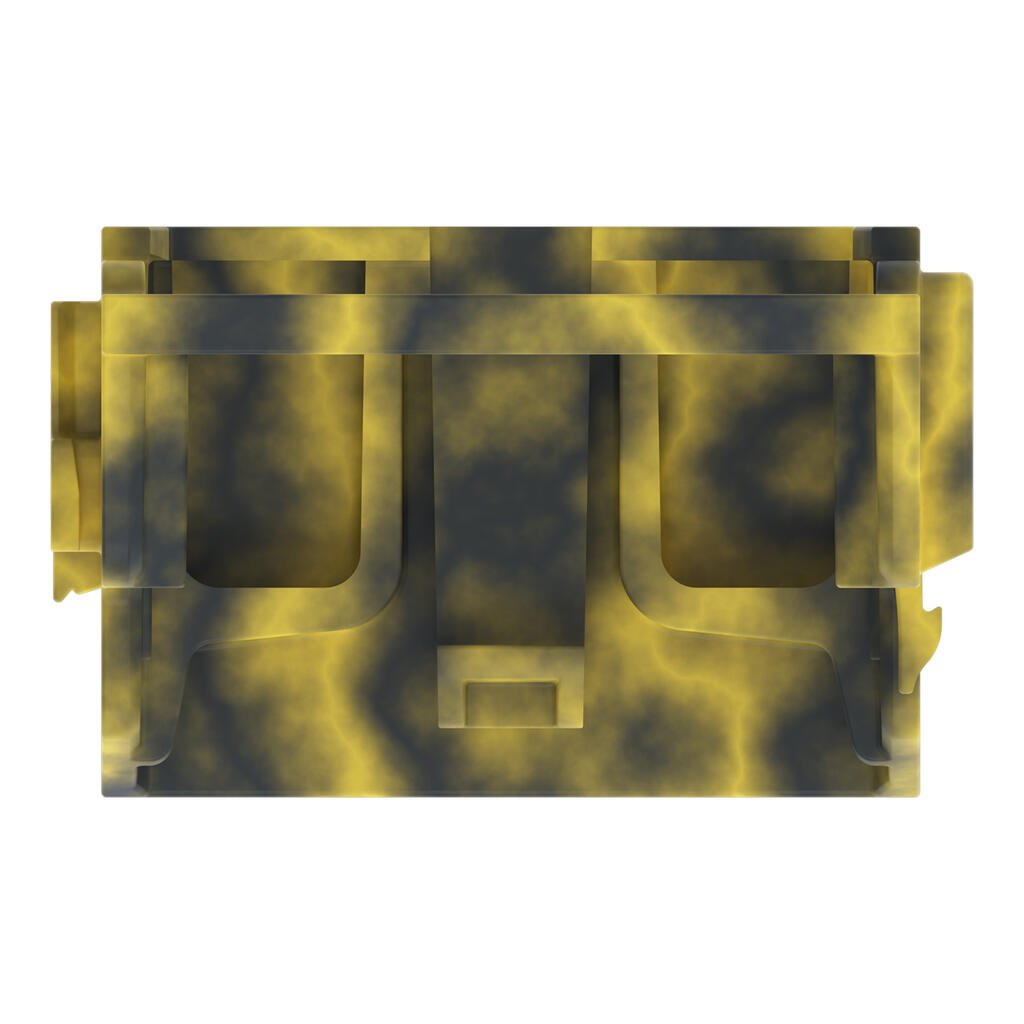

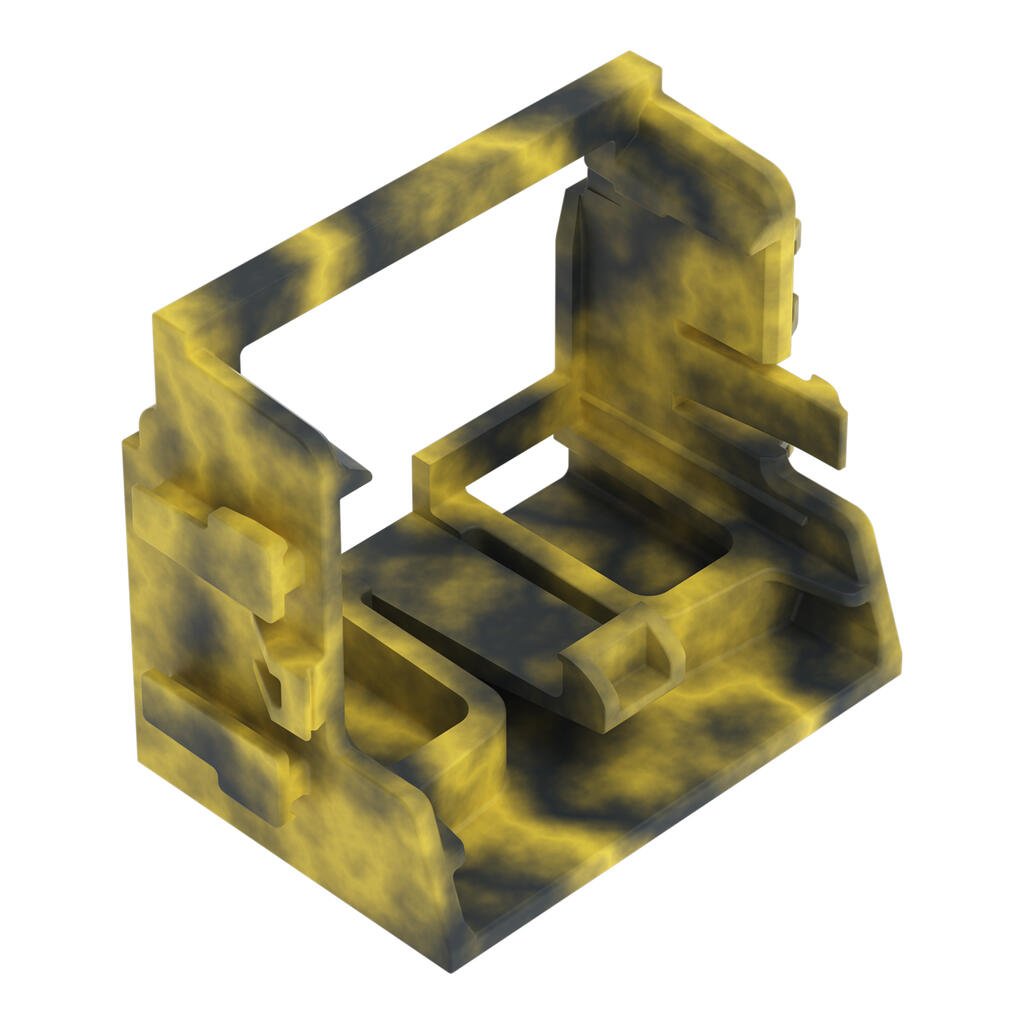

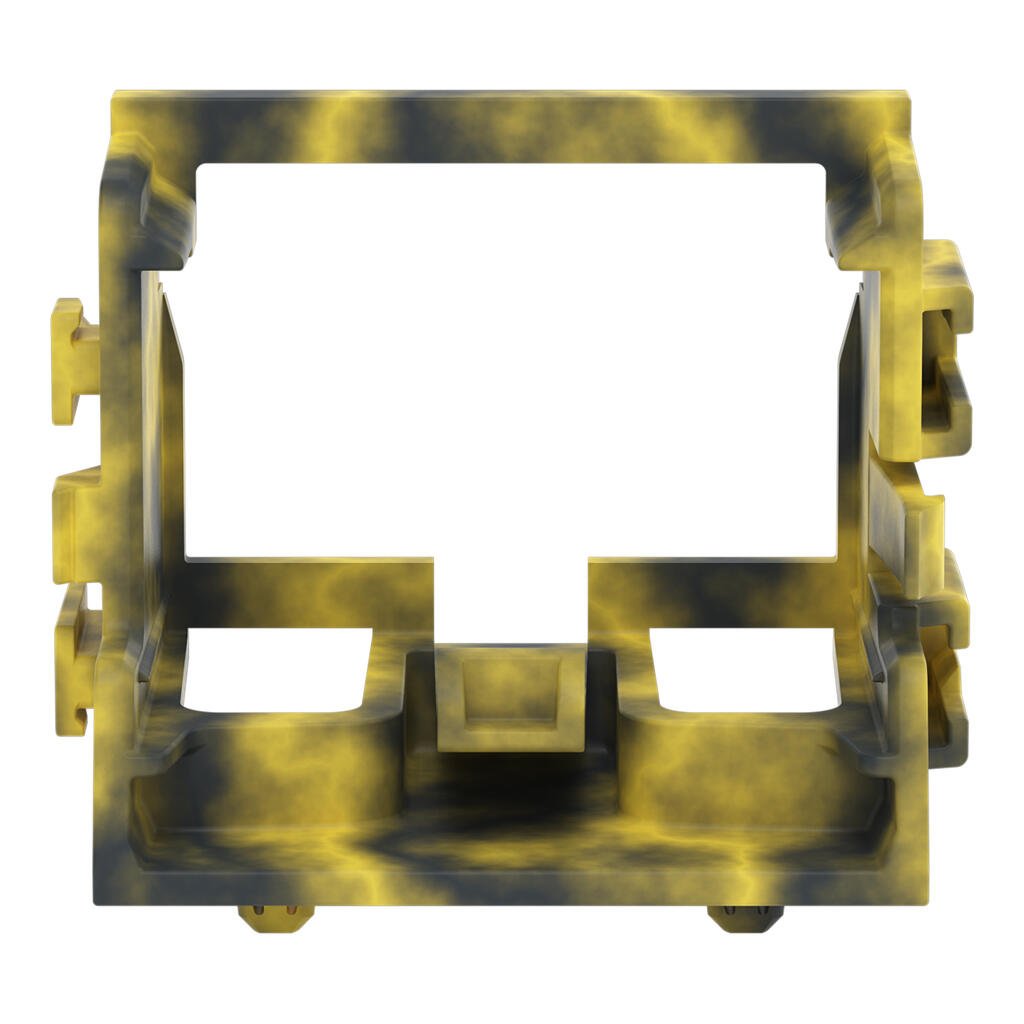

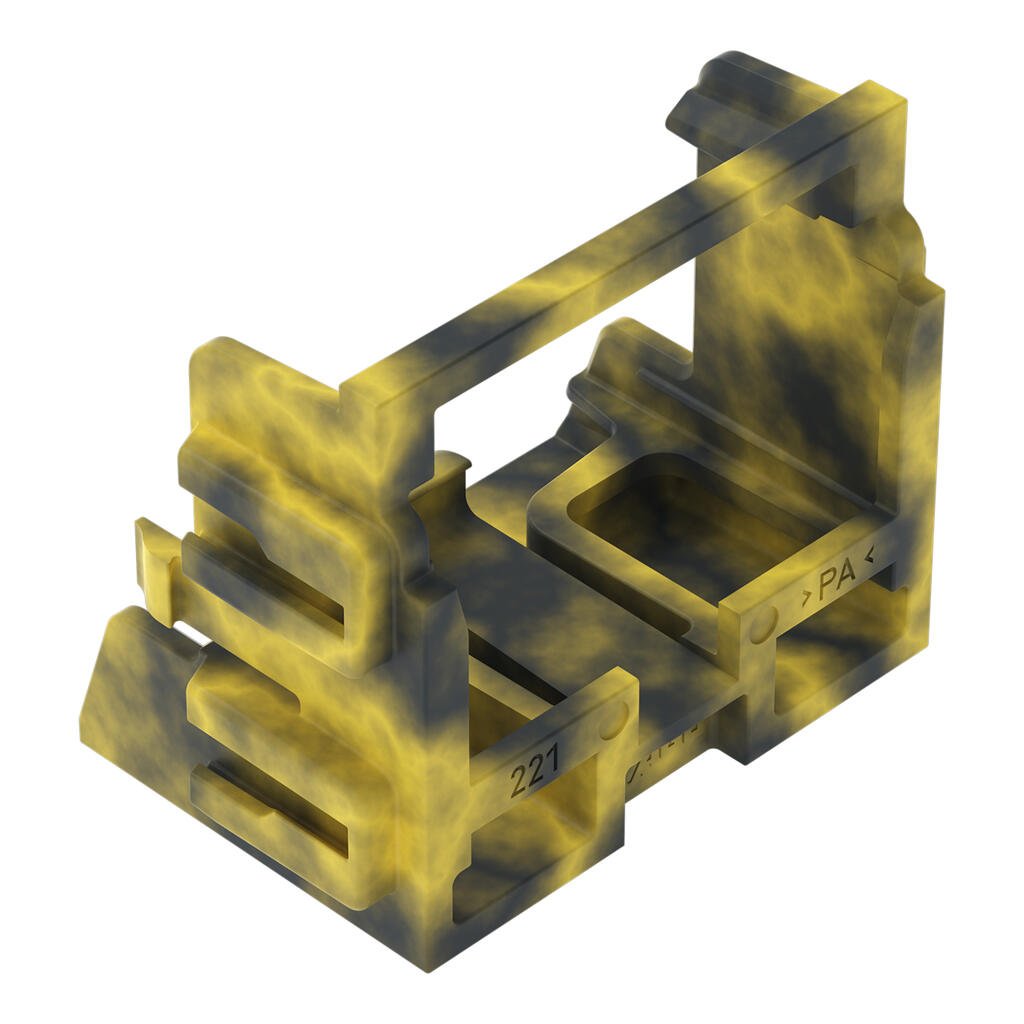

Wago 221-529/002-053
Mounting carrier; for 10-wire connectors; 221 Series – 4 mm²; with snap-in mounting foot; dark gray-yellow 221-529/002-053
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Mounting carrier; for 10-wire connectors; 221 Series – 4 mm²; with snap-in mounting foot; dark gray-yellow 221-529/002-053
Specification

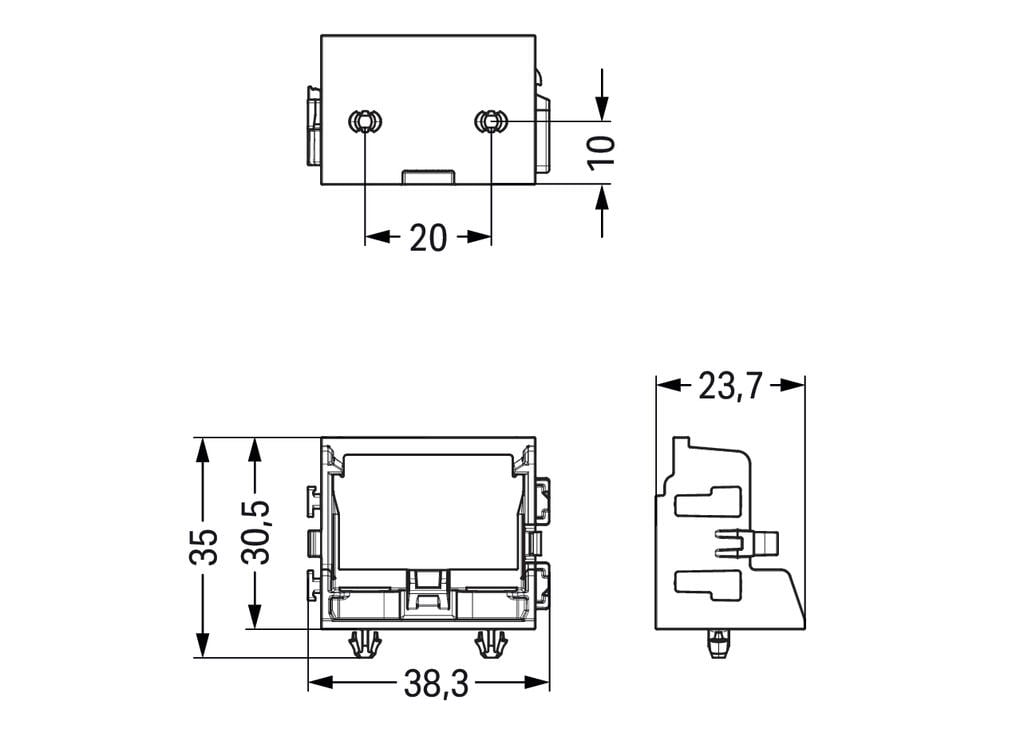

Physical data
| Width | 38.3 mm / 1.508 inches |
|---|---|
| Height | 35 mm / 1.508 inches |
| Height from the surface | 55 mm / 2.165 inches |
| Depth | 23.7 mm / 0.933 inches |
Mechanical data
| Mounting type | Snap-in foot |
|---|---|
| Mounting type | with snap-in mounting foot for vertical mounting |
| Suitable | for 10-wire connectors (4 mm²) |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | dark gray/yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.153 MJ |
| Weight | 5.1 g |
Commercial data
| PU (SPU) | 10 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | CN |
| GTIN | 4066966603576 |
| Customs tariff number | 39269097900 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
