Wago 221-515

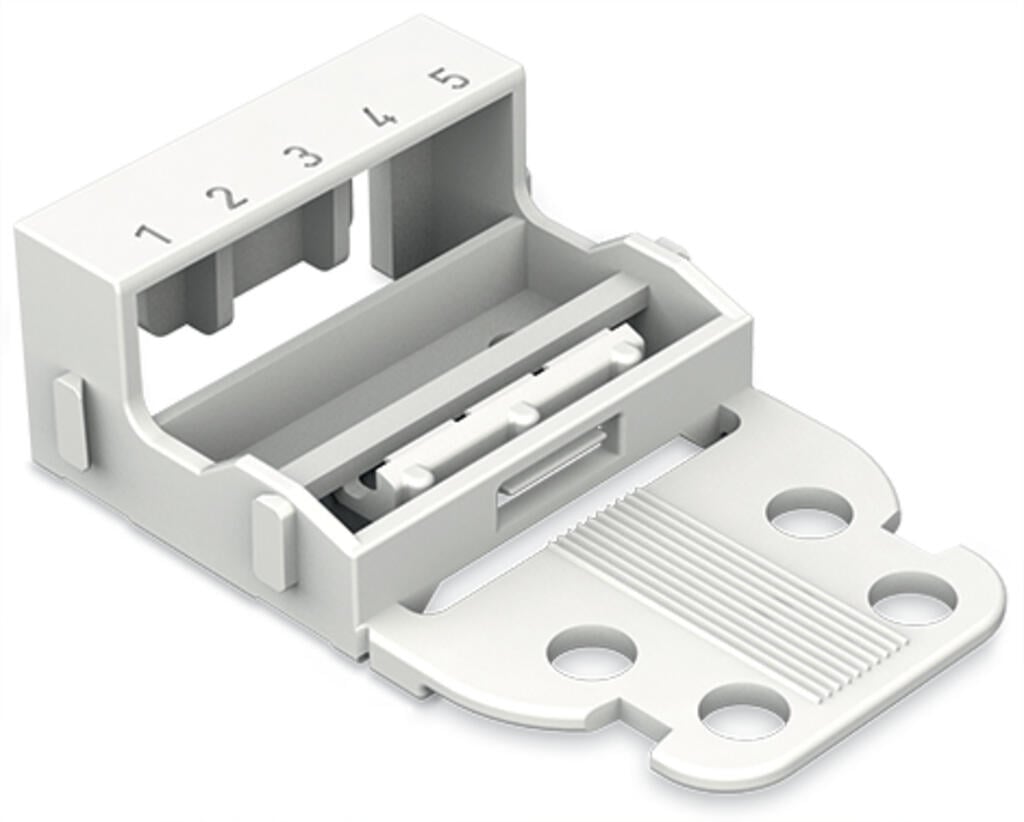

Mounting carrier; for 5-conductor terminal blocks; 221 Series – 4 mm²; with snap-in mounting foot for horizontal mounting; white 221-515
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Mounting carrier; for 5-conductor terminal blocks; 221 Series – 4 mm²; with snap-in mounting foot for horizontal mounting; white 221-515
Specification

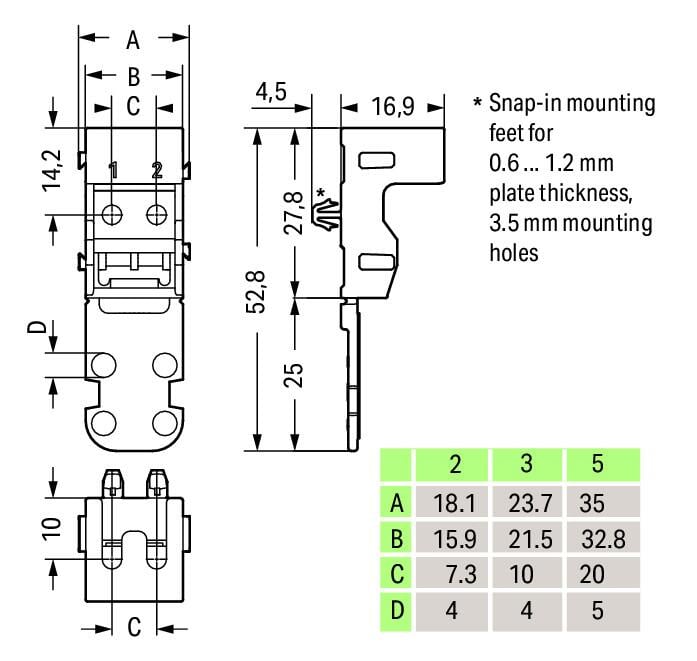

Physical data
| Width | 35 mm / 1.378 inches |
|---|---|
| Height | 21.4 mm / 0.843 inches |
| Height from the surface | 16.9 mm / 0.665 inches |
| Depth | 52.8 mm / 2.079 inches |
Mechanical data
| Mounting type | with snap-in mounting foot for horizontal mounting |
|---|---|
| Suitable | for 5-wire connectors (4 mm²) |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | white |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Weight | 5 g |
Commercial data
| PU (SPU) | 50 (10) pcs |
|---|---|
| Packaging type | box |
| Country of origin | CN |
| GTIN | 4055143640893 |
| Customs tariff number | 39269097900 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
