Wago 221-510/000-053

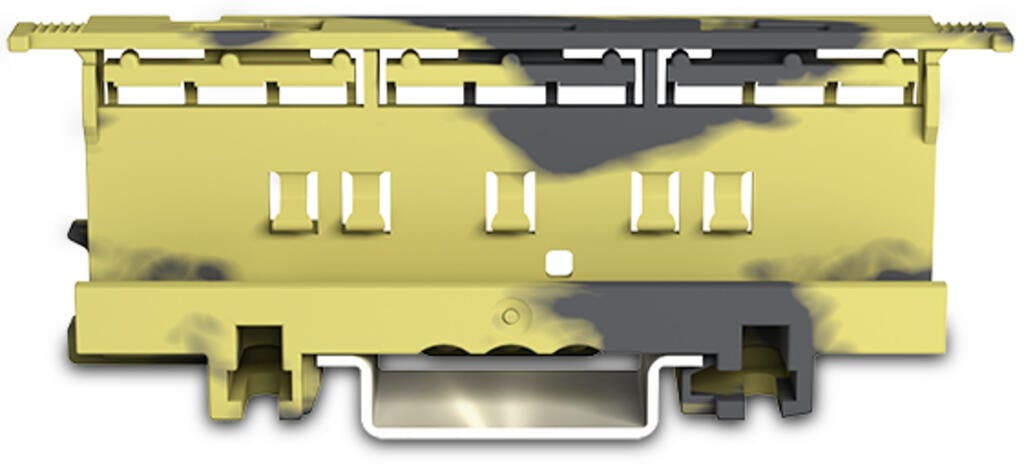

Mounting carrier; 221 Series – 6 mm²; for DIN-35 rail mounting/screw mounting; dark gray-yellow 221-510/000-053
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Mounting carrier; 221 Series – 6 mm²; for DIN-35 rail mounting/screw mounting; dark gray-yellow 221-510/000-053
Specification

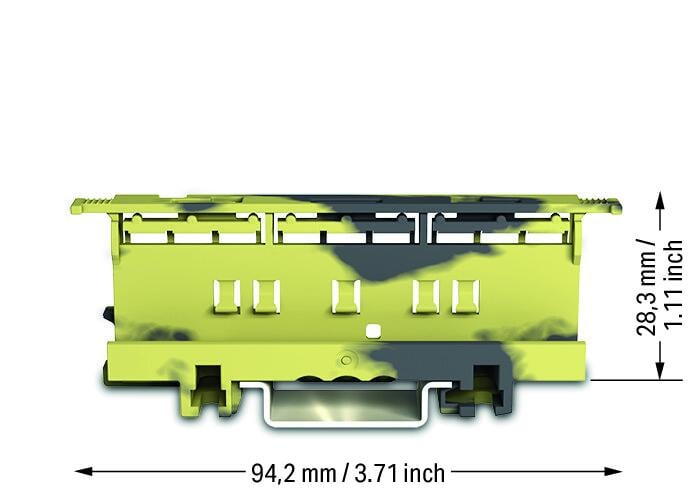

Physical data
| Width | 19.3 mm / 0.76 inches |
|---|---|
| Height | 94.2 mm / 3.709 inches |
| Depth from upper-edge of DIN-rail | 28.3 mm / 1.114 inches |
Mechanical data
| Mounting type | DIN-35 rail, Screw mount |
|---|---|
| Suitable | for 2-, 3- and 5-conductor 221 Series Splicing Connectors (6 mm²) |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | dark gray/yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.366 MJ |
| Weight | 12.2 g |
Commercial data
| PU (SPU) | 50 (10) pcs |
|---|---|
| Packaging type | box |
| Country of origin | CN |
| GTIN | 4055143833585 |
| Customs tariff number | 39269097900 |
Product Classification
| UNSPSC | 39121702 |
|---|---|
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
