Wago 221-430

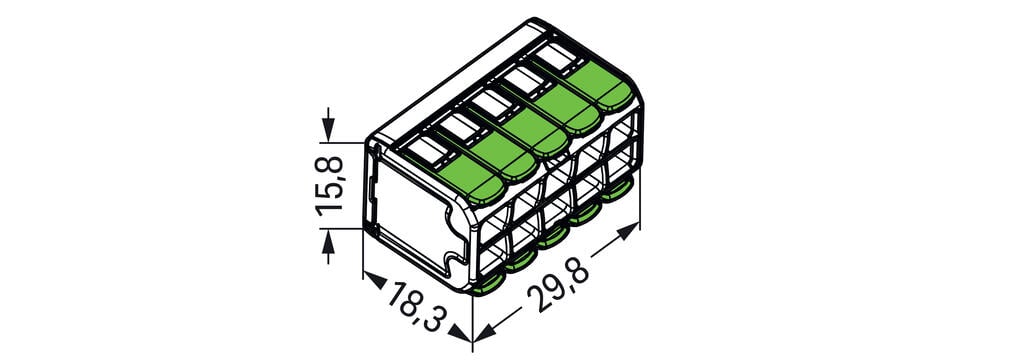

Splicing connector with levers, 221 Series, CAGE CLAMP®Splicing connector with levers (item number 221-430) is designed for seamless electrical installations. From wiring intercom systems to installing electrical ovens, connecting different conductor types is quick and hassle-free with WAGO’s compact 221 Series splicing connector, which allows you to quickly and safely connect different types of conductors. Conductors can only be connected to splicing connector with levers if their strip length is 11 mm . Rated current and voltage are important parameters when selecting a splicing connector, as they indicate how the product can be used. This product has a rated voltage of 450 V and a rated current of 32 A, making it suitable for high-load applications. This product incorporates conductor terminals and utilizes CAGE CLAMP®. Our highly-rated and maintenance-free CAGE CLAMP® connection makes it easy to connect all types of conductors without having to prepare the conductor. For example, you don’t need to crimp ferrules. The dimensions are (29.8 x 15.8 x 18.3) mm (width x height x depth). Depending on the conductor type, splicing connector with levers is designed for conductor cross sections ranging from 0.2 mm² to 4 mm².WAGO’s 221 Series Splicing Connector with levers impresses with its innovative design for different conductor cross-sections. That’s why WAGO’s lever-equipped splicing connector holds a unique trademark within electrical interconnection technology. The flat levers, which fit seamlessly into the 221’s base, act like a cast when closed and can be positioned neatly in any housing without disturbing edges. Due to the wide design of each leaver, they can all be operated perfectly without tools for convenient conductor terminations. The transparent housing displays robust technology and enables immediate visual inspection for the correct contact of solid, stranded and fine-stranded conductors. Resembling piano keys, the levers’ design perfectly combines the functional and aesthetic connection technology “Made by WAGO.”In addition to regranulate, the new Green Range Splicing Connector with levers consists of 77% bio-circular PC (housing) and at least 27% recycled PBT (levers). This product is designed for specific Ex applications (please refer to the product datasheet).
