Wago 2206-1631/1000-867

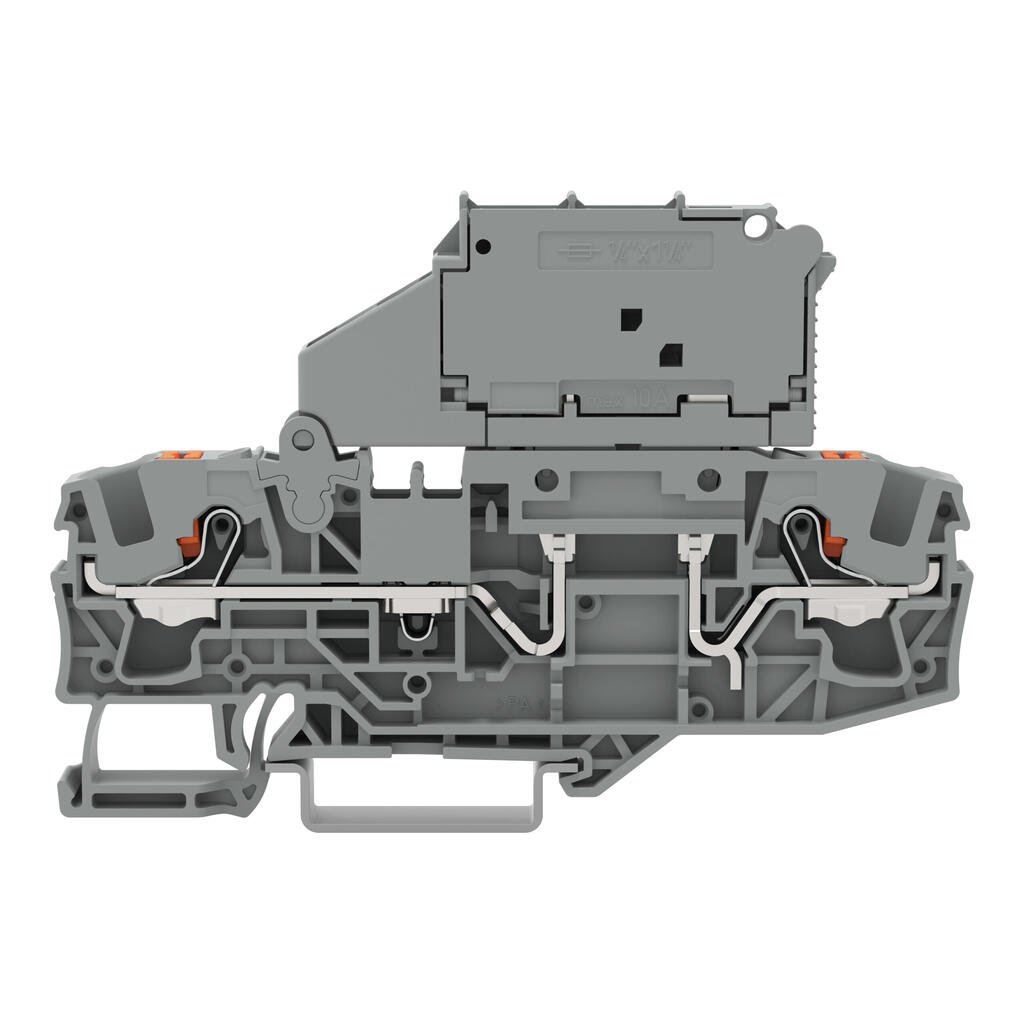

Fuse terminal block, 2206 Series, push-buttonOur fuse terminal block (item number 2206-1631/1000-867) simplifies electrical installations. Strip lengths must be between 13 and 15 mm when connecting c…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fuse terminal block, 2206 Series, push-buttonOur fuse terminal block (item number 2206-1631/1000-867) simplifies electrical installations. Strip lengths must be between 13 and 15 mm when connecting conductors to this fuse terminal block. Featuring conductor terminals along with Push-in CAGE CLAMP®, this connector outperforms the competition. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, offering a key advantage: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. Depending on the type of conductor, this fuse terminal block is designed for conductor cross sections ranging from 0.5 mm² to 10 mm².
Specification
Notes
| Safety Information | The 2 mm test slot is only approved for high impedance measurement up to max. 100 mA. |
|---|
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-3 |
|---|---|
| Nominal voltage (III/3) | 800 V |
| Rated impulse withstand voltage (III / 3) | 8 kV |
| Rated current | 10 A |
| Operation status indicator | 120 V |
| Blown fuse indication | 120 V |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60947-7-3 / IEC/EN 60947-7-3 / IEC/EN 60947-7-3 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 800 V |
| Rated impulse withstand voltage | 8 kV |
| Rated current | 10 A |
Electrical data - Ratings per IEC/EN – Notes
| Ratings (note) | Electrical ratings are given by the fuse and blown fuse indication. |
|---|---|
| Rated current (note) | Leakage current in case of a blown fuse: LED 2 mA |
Electrical data - Ratings per UL
| Approvals per | UL 1059 |
|---|---|
| Rated voltage UL (Use Group B) | 120 V |
| Rated current UL (Use Group B) | 15 A |
| Rated voltage UL (Use Group C) | 120 V |
| Rated current UL (Use Group C) | 15 A |
| Approvals per | UL 1059 / UL 1059 / UL 1059 |
| Use group | B / C / D |
| Rated voltage | 120 V / 120 V |
| Rated current | 15 A / 15 A |
Electrical data - Ratings per CSA
| Approvals per | CSA 22.2 No 158 |
|---|---|
| Rated voltage CSA (Use Group B) | 120 V |
| Rated current CSA (Use Group B) | 15 A |
| Rated voltage CSA (Use Group C) | 120 V |
| Rated current CSA (Use Group C) | 15 A |
| Approvals per | CSA 22.2 No 158 / CSA 22.2 No 158 / CSA 22.2 No 158 |
| Use group | B / C / D |
| Rated voltage | 120 V / 120 V |
| Rated current | 15 A / 15 A |
Electrical data - Power Loss
| Maximum power loss P<sub>loss</sub> of fuse insert for overload and short-circuit protection (individual arrangement) | 1.6 W |
|---|---|
| Maximum power loss P<sub>loss</sub> of fuse insert for overload and short-circuit protection (block arrangement) | 1.6 W |
| Power loss P<sub>l</sub> max. short-circuit protection (individual arrangement) | 2.5 W |
| Power loss P<sub>loss</sub> (max.) of fuse cartridge for short-circuit protection (block arrangement) | 2.5 W |
Electrical data - General information
| Fuse receptacle | pivoting |
|---|---|
| Fuse type | Cylindrical fuse; ¼" x 1¼" |
| Wiring direction | Front-entry wiring |
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Push-button |
| Connectable conductor materials | Copper |
| Nominal cross-section | 6 mm² |
| Solid conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Solid conductor; push-in termination | 1 … 10 mm² / 14 … 8 AWG |
| Fine-stranded conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 6 mm² / 20 … 10 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6 mm² / 16 … 10 AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
| Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
| Wiring direction | Front-entry wiring |
Physical data
| Width | 7.5 mm / 0.295 inches |
|---|---|
| Height | 96.3 mm / 3.791 inches |
| Depth from upper-edge of DIN-rail | 59 mm / 2.323 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Marking level | Center/side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.475 MJ |
| Actuator color | orange |
| Weight | 25.1 g |
Environmental requirements
| Processing temperature | -35 … +50 °C |
|---|---|
| Continuous operating temperature | -60 … +50 °C |
Commercial data
| PU (SPU) | 25 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | PL |
| GTIN | 4066966311952 |
| Customs tariff number | 85369095000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ETIM 9.0 | EC000899 |
| ETIM 10.0 | EC000899 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(c)-I |
| SCIP notification number (Austria) | 759783ae-de03-4238-b738-f4fc2901e37e |
| SCIP notification number (Belgium) | 312c3e62-6122-43be-aabb-64abc40519be |
| SCIP notification number (Bulgaria) | b42b06ec-9b14-4b4a-b6e2-0b080bf9a916 |
| SCIP notification number (Czech Republic) | 5001c2a1-eed3-43a4-acf7-1ce567bf9608 |
| SCIP notification number (Denmark) | 0e11303a-3bf9-464b-8523-63da19f00d6a |
| SCIP notification number (Finland) | e8a46180-b665-45af-a5a0-77a8018849a7 |
| SCIP notification number (France) | 7cc82aa4-acab-4238-8d0f-89f152543193 |
| SCIP notification number (Germany) | 2069b7c6-f3f5-41d5-8bb4-702f4a6c01d1 |
| SCIP notification number (Hungary) | d01551f3-299c-4412-88aa-57828ece3e03 |
| SCIP notification number (Italy) | b1a8a141-3e55-4855-82c7-75962330f66d |
| SCIP notification number (Netherlands) | c3651a77-6f47-4944-939a-cb655132ca62 |
| SCIP notification number (Poland) | 1e539391-41a1-49c8-b0cd-f5e8649ddccf |
| SCIP notification number (Romania) | 4c315158-8927-4390-b493-e558d648d5ea |
| SCIP notification number (Sweden) | 366d5223-0b77-4c9b-a7df-130e708aae5f |
