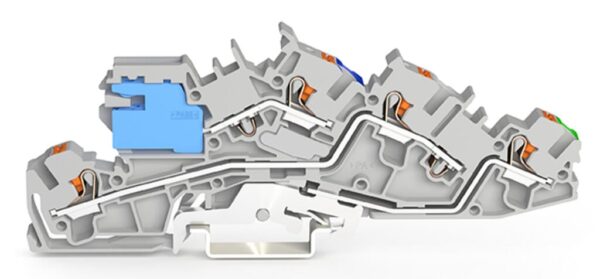

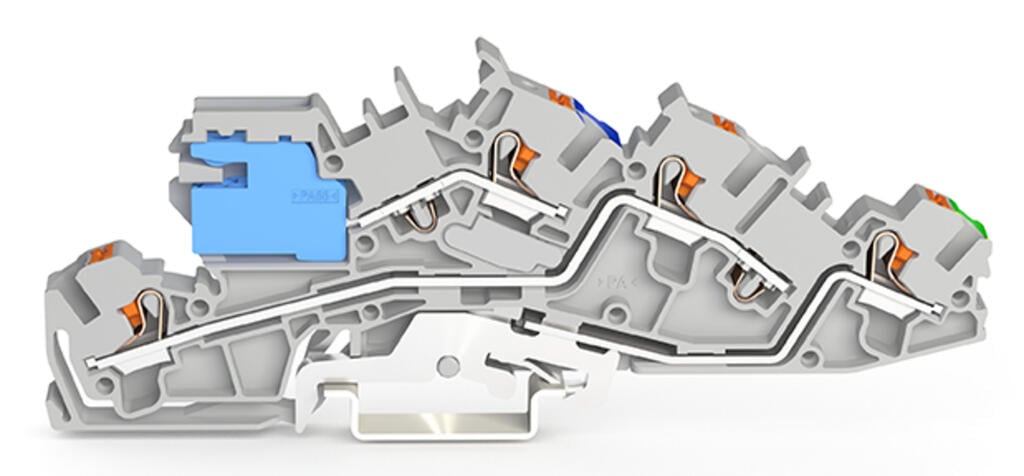

Multilevel installation terminal block, 2205 Series, Push-in CAGE CLAMP®Connecting conductors is quick and easy with this multilevel installation terminal block (item number 2205-7641). Strip lengths must be between 11 and 13 mm  when connecting conductors to this multilevel installation terminal block. Featuring conductor terminals along with Push-in CAGE CLAMP®, this product delivers reliable performance. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. Solid and fine-stranded conductors with ferrules can be pushed in without the need for tools—all thanks to its pluggable design. Depending on the conductor type, this multilevel installation terminal block is designed for conductor cross sections ranging from 0.5 mm² to 6 mm².

Specification

Electrical data - Ratings per IEC/EN

RatingsPotential – ground
Ratings perIEC/EN 60947-7-1
Nominal voltage (III/3)250 V
Rated impulse withstand voltage (III / 3)4 kV
Rated current31 A
Current at conductor cross-section (max.) mm²35 A
Legend (ratings)(III / 3) ≙ Overvoltage category III / Pollution degree 3
RatingsPotential - ground / Potential - ground / Potential - ground
Ratings perIEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage250 V
Rated impulse withstand voltage4 kV
Rated current31 A
Current at conductor cross-section (max.) mm²35 A

Electrical data - Ratings per IEC/EN 2

RatingsPotential – potential
Ratings perIEC/EN 60947-7-1
Rated voltage (III / 3)400 V
Rated impulse withstand voltage (III/3)6 kV
Rated current31 A
Current at conductor cross-section (max.)35 A
RatingsPotential - potential / Potential - potential / Potential - potential
Ratings perIEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage400 V
Rated impulse withstand voltage6 kV
Rated current31 A
Current at conductor cross-section (max.) mm²35 A

Electrical data - Power Loss

Power loss, per pole (potential)1.922 W
Rated current I<sub>N</sub> for power loss specification31 A
Resistance value for specified, current-dependent power loss0.001 Ω

Electrical data - General information

Wiring directionFront-entry wiring

Connection data

Clamping units4
Total number of potentials3
Number of levels3

Connection data - Connection 1

Connection technologyPush-in CAGE CLAMP®
Actuation typePush-button
Connectable conductor materialsCopper
Nominal cross-section4 mm²
Solid conductor0.5 … 6 mm² / 20 … 10 AWG
Solid conductor; push-in termination1.5 … 6 mm² / 14 … 10 AWG
Fine-stranded conductor0.5 … 6 mm² / 20 … 10 AWG
Fine-stranded conductor; with insulated ferrule0.5 … 4 mm² / 20 … 12 AWG
Fine-stranded conductor; with ferrule; push-in termination1.5 … 4 mm² / 18 … 12 AWG
Note (conductor cross-section)Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length11 … 13 mm / 0.43 … 0.51 inches
Wiring directionFront-entry wiring

Physical data

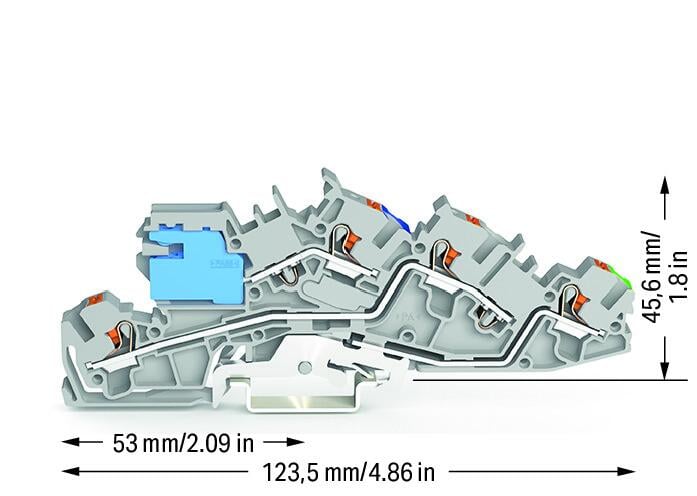

Width6.2 mm / 0.244 inches
Height123.5 mm / 4.862 inches
Depth from upper-edge of DIN-rail45.6 mm / 1.8 inches

Mechanical data

Potential markingNT/L/PE
Mounting typeDIN-35 rail
Marking levelCenter/side marking

Material data

Note (material data)Information on material specifications can be found here
Colorgray
Material groupI
Insulation material (main housing)Polyamide (PA66)
Flammability class per UL94V0
Fire load0.377 MJ
Weight31.4 g

Environmental requirements

Processing temperature-35 … +85 °C
Continuous operating temperature-60 … +105 °C

Commercial data

PU (SPU)50 pcs
Packaging typebox
Country of originPL
GTIN4066966165203
Customs tariff number85369010000

Product Classification

UNSPSC39121410
ETIM 9.0EC001329
ETIM 10.0EC001329
ECCNNO US CLASSIFICATION

Environmental Product Compliance

CAS-No.7439-92-1
REACH Candidate List SubstanceLead
RoHS Compliance StatusCompliant,No Exemption
SCIP notification number (Austria)b168fca8-79b2-4289-81a5-3021abd1d917
