Wago 2205-7545

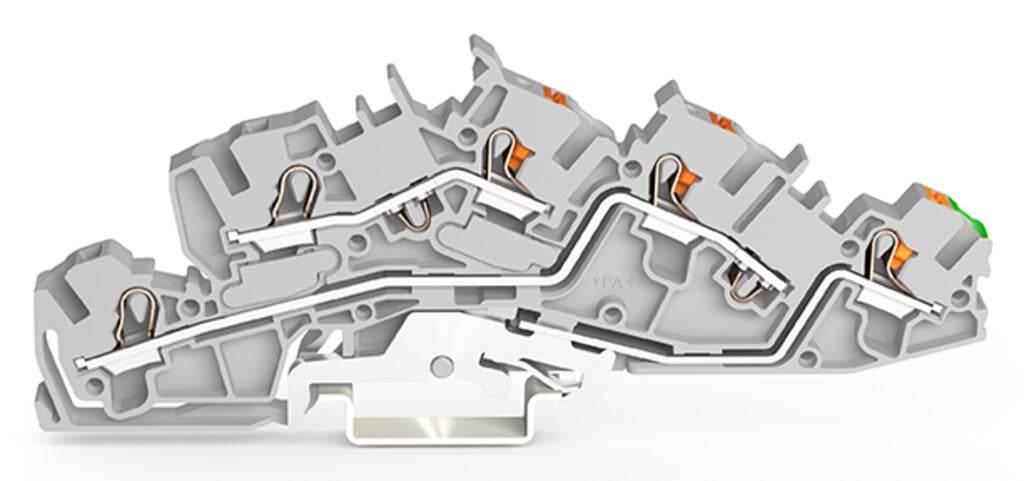

Multilevel installation terminal block, 2205 Series, Push-in CAGE CLAMP®This multilevel installation terminal block (item number 2205-7545) streamlines wire connections, making them both quick and eas…

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Multilevel installation terminal block, 2205 Series, Push-in CAGE CLAMP®This multilevel installation terminal block (item number 2205-7545) streamlines wire connections, making them both quick and easy. Ensure that the strip lengths are between 11 and 13 mm  when connecting conductors to this multilevel installation terminal block. This product incorporates conductor terminals and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. This multilevel installation terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 6 mm².

Specification

Electrical data - Ratings per IEC/EN

RatingsPotential – ground
Ratings perIEC/EN 60947-7-1
Nominal voltage (III/3)250 V
Rated impulse withstand voltage (III / 3)4 kV
Rated current32 A
Current at conductor cross-section (max.) mm²40 A
Legend (ratings)(III / 3) ≙ Overvoltage category III / Pollution degree 3
RatingsPotential - ground / Potential - ground / Potential - ground
Ratings perIEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage250 V
Rated impulse withstand voltage4 kV
Rated current32 A
Current at conductor cross-section (max.) mm²40 A

Electrical data - Ratings per IEC/EN 2

RatingsPotential – potential
Ratings perIEC/EN 60947-7-1
Rated voltage (III / 3)400 V
Rated impulse withstand voltage (III/3)6 kV
Rated current32 A
Current at conductor cross-section (max.)40 A
RatingsPotential - potential / Potential - potential / Potential - potential
Ratings perIEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage400 V
Rated impulse withstand voltage6 kV
Rated current32 A
Current at conductor cross-section (max.) mm²40 A

Electrical data - Power Loss

Power loss, per pole (potential)1.024 W
Rated current I<sub>N</sub> for power loss specification32 A
Resistance value for specified, current-dependent power loss0.001 Ω

Electrical data - General information

Wiring directionFront-entry wiring

Connection data

Clamping units5
Total number of potentials3
Number of levels3

Connection data - Connection 1

Connection technologyPush-in CAGE CLAMP®
Actuation typePush-button
Connectable conductor materialsCopper
Nominal cross-section4 mm²
Solid conductor0.5 … 6 mm² / 20 … 10 AWG
Solid conductor; push-in termination1.5 … 6 mm² / 14 … 10 AWG
Fine-stranded conductor0.5 … 6 mm² / 20 … 10 AWG
Fine-stranded conductor; with insulated ferrule0.5 … 4 mm² / 20 … 12 AWG
Fine-stranded conductor; with ferrule; push-in termination1.5 … 4 mm² / 18 … 12 AWG
Note (conductor cross-section)Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length11 … 13 mm / 0.43 … 0.51 inches
Wiring directionFront-entry wiring

Connection data - Connection 2

Actuation typeOperating tool

Physical data

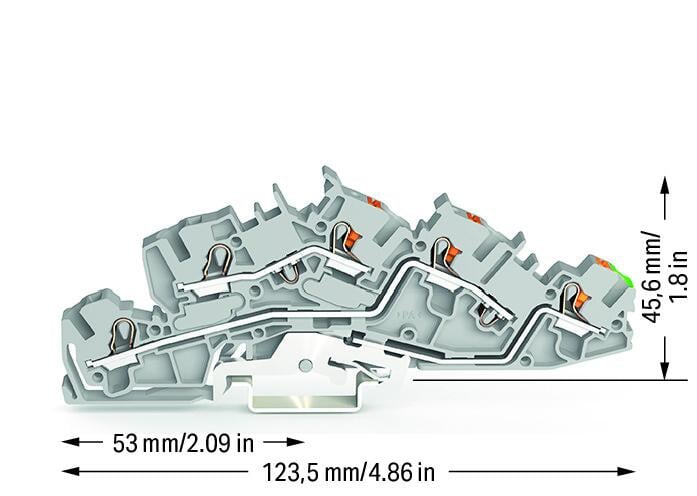

Width6.2 mm / 0.244 inches
Height123.5 mm / 4.862 inches
Depth from upper-edge of DIN-rail45.6 mm / 1.8 inches

Mechanical data

Potential markingL/L/PE
Mounting typeDIN-35 rail
Marking levelCenter/side marking

Material data

Note (material data)Information on material specifications can be found here
Colorgray
Material groupI
Insulation material (main housing)Polyamide (PA66)
Flammability class per UL94V0
Fire load0.387 MJ
Weight30 g

Environmental requirements

Processing temperature-35 … +85 °C
Continuous operating temperature-60 … +105 °C

Commercial data

PU (SPU)50 pcs
Packaging typebox
Country of originDE
GTIN4066966165272
Customs tariff number85369010000

Product Classification

UNSPSC39121410
ETIM 9.0EC001329
ETIM 10.0EC001329
ECCNNO US CLASSIFICATION

Environmental Product Compliance

CAS-No.7439-92-1
REACH Candidate List SubstanceLead
RoHS Compliance StatusCompliant,No Exemption
SCIP notification number (Austria)e885f59a-4f9e-4fac-a910-ab43bc6f2a9f
SCIP notification number (Belgium)52e22a93-9d09-4ed2-9ccc-30b24dee2085
SCIP notification number (Bulgaria)034e38b8-6b1a-42f0-be89-b641a7b594bb
SCIP notification number (Czech Republic)ccc359c6-9873-4f20-86c0-150bb2c60fd6
SCIP notification number (Denmark)817c8146-fca7-4554-bd66-d564253322d4
SCIP notification number (Finland)239464ea-0fc2-4b01-979a-7245e6ee2978
SCIP notification number (France)90c0fce1-97b6-4512-bcda-9006e98ce140
SCIP notification number (Germany)e4a673a3-2fb5-4797-af8f-b5271aa1fa5a
SCIP notification number (Hungary)e0b737ab-9aba-4f62-8a4a-3795311939fe
SCIP notification number (Italy)750e079f-6443-47ab-ac4f-cf939dd1b44f
SCIP notification number (Netherlands)f2916ac4-5c8d-46a5-94dc-ac6dda80bbe6
SCIP notification number (Poland)42efb85e-3979-4488-8375-654ca94dd4c4
SCIP notification number (Romania)b1b772fb-6425-4806-9ced-d04ff4f1604c
SCIP notification number (Sweden)58daaabd-fb0e-4955-85f7-1a1a9407940f
