Wago 2203-6661

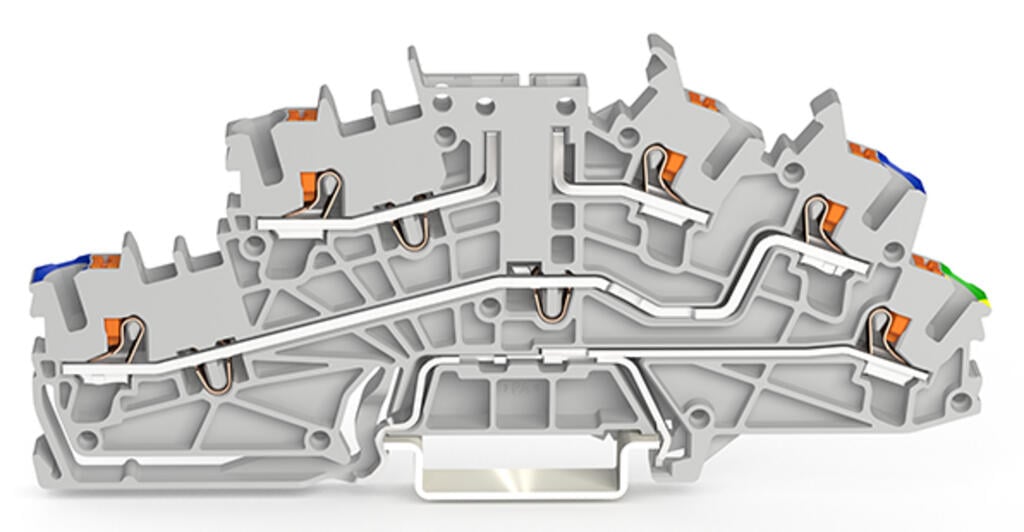

Multilevel installation terminal block, 2203 Series, Push-in CAGE CLAMP®Our multilevel installation terminal block (item number 2203-6661) simplifies electrical installations. Ensure that the strip le…

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Multilevel installation terminal block, 2203 Series, Push-in CAGE CLAMP®Our multilevel installation terminal block (item number 2203-6661) simplifies electrical installations. Ensure that the strip lengths are between 10 and 12 mm  when connecting conductors to this multilevel installation terminal block. This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. Solid and fine-stranded conductors with ferrules can be inserted without the need for tools—all thanks to its pluggable design. This multilevel installation terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm².

Specification

Electrical data - Ratings per IEC/EN

RatingsPotential – ground
Ratings perIEC/EN 60947-7-1
Nominal voltage (III/3)250 V
Rated impulse withstand voltage (III / 3)4 kV
Rated current22 A
Current at conductor cross-section (max.) mm²27 A
Legend (ratings)(III / 3)  Overvoltage category III / Pollution degree 3
RatingsPotential - ground / Potential - ground / Potential - ground
Ratings perIEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage250 V
Rated impulse withstand voltage4 kV
Rated current22 A
Current at conductor cross-section (max.) mm²27 A

Electrical data - Ratings per IEC/EN – Notes

Rated current (note)Maximum current depends on accessories used.

Electrical data - Ratings per IEC/EN 2

RatingsPotential – potential
Ratings perIEC/EN 60947-7-1
Rated voltage (III / 3)400 V
Rated impulse withstand voltage (III/3)6 kV
Rated current22 A
Current at conductor cross-section (max.)27 A
RatingsPotential - potential / Potential - potential / Potential - potential
Ratings perIEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage400 V
Rated impulse withstand voltage6 kV
Rated current22 A
Current at conductor cross-section (max.) mm²27 A

Electrical data - Ratings per UL

Approvals perUL 1059
Rated voltage UL (Use Group B)300 V
Rated current UL (Use Group B)20 A
Rated voltage UL (Use Group D)300 V
Rated current UL (Use Group D)20 A
Approvals perUL 1059 / UL 1059 / UL 1059
Use groupB / C / D
Rated voltage300 V / 300 V
Rated current20 A / 20 A

Electrical data - Ratings per CSA

Approvals perCSA 22.2 No 158
Rated voltage CSA (Use Group B)300 V
Rated current CSA (Use Group B)20 A
Rated voltage CSA (Use Group D)300 V
Rated current CSA (Use Group D)10 A
Approvals perCSA 22.2 No 158 / CSA 22.2 No 158 / CSA 22.2 No 158
Use groupB / C / D
Rated voltage300 V / 300 V
Rated current20 A / 10 A

Electrical data - Power Loss

Power loss, per pole (potential)0.644 W
Rated current I<sub>N</sub> for power loss specification22 A
Resistance value for specified, current-dependent power loss0.001 Ω

Electrical data - General information

Wiring directionFront-entry wiring

Connection data

Clamping units5
Total number of potentials3
Number of levels3

Connection data - Connection 1

Connection technologyPush-in CAGE CLAMP®
Actuation typePush-button
Connectable conductor materialsCopper
Nominal cross-section2.5 mm²
Solid conductor0.25 … 4 mm² / 22 … 12 AWG
Solid conductor; push-in termination0.75 … 4 mm² / 18 … 12 AWG
Fine-stranded conductor0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor; with insulated ferrule0.25 … 2.5 mm² / 22 … 14 AWG
Fine-stranded conductor; with ferrule; push-in termination1 … 2.5 mm² / 18 … 14 AWG
Note (conductor cross-section)Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length10 … 12 mm / 0.39 … 0.47 inches
Wiring directionFront-entry wiring

Physical data

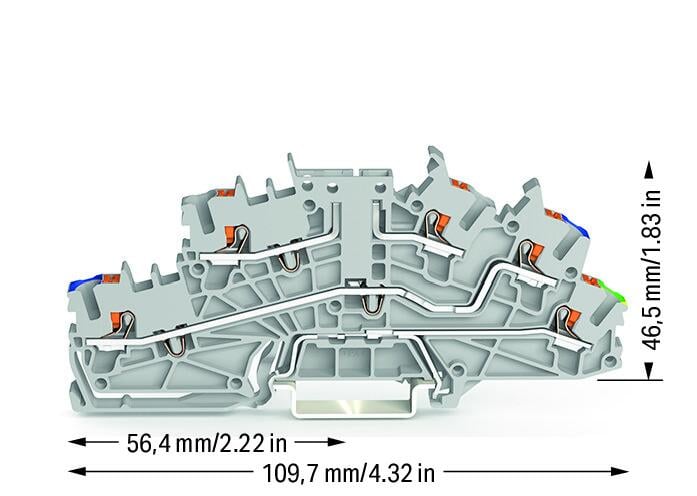

Width5.2 mm / 0.205 inches
Height109.7 mm / 4.319 inches
Depth from upper-edge of DIN-rail46.5 mm / 1.831 inches

Mechanical data

Potential markingL/N/PE
Mounting typeDIN-35 rail
Marking levelCenter/side marking

Material data

Note (material data)Information on material specifications can be found here
Colorgray
Material groupI
Insulation material (main housing)Polyamide (PA66)
Flammability class per UL94V0
Fire load0.349 MJ
Weight20.3 g

Environmental requirements

Processing temperature-35 … +85 °C
Continuous operating temperature-60 … +105 °C

Commercial data

PU (SPU)50 pcs
Packaging typebox
Country of originDE
GTIN4066966165395
Customs tariff number85369010000

Product Classification

UNSPSC39121410
ETIM 9.0EC001329
ETIM 10.0EC001329
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption
