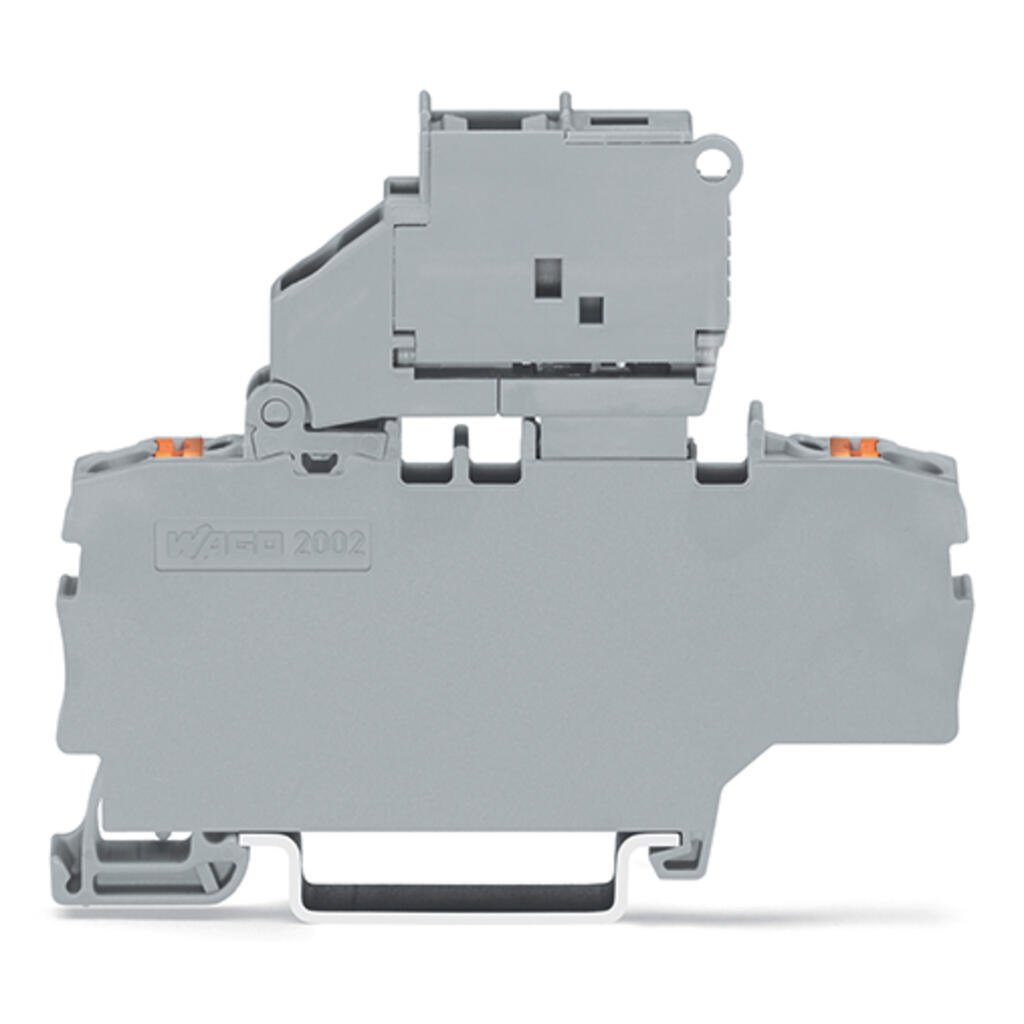

Fuse terminal block, 2202 Series, grayConnecting conductors is quick and easy with this fuse terminal block (item number 2202-1911/1000-867). Ensure that the strip lengths are between 10 and 12 mm  wh…

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Fuse terminal block, 2202 Series, grayConnecting conductors is quick and easy with this fuse terminal block (item number 2202-1911/1000-867). Ensure that the strip lengths are between 10 and 12 mm  when connecting conductors to this fuse terminal block. This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing to use any tools—all thanks to its pluggable design. This fuse terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm².This product is designed for specific Ex applications (please refer to the product datasheet).

Specification

Notes

Safety InformationThe 2 mm test slot is only approved for high impedance measurement up to max. 100 mA.

Electrical data - Ratings per IEC/EN

Ratings perIEC/EN 60947-7-3
Nominal voltage (III/3)250 V
Rated impulse withstand voltage (III / 3)6 kV
Rated current6.3 A
Blown fuse indication120 V
Legend (ratings)(III / 3) ≙ Overvoltage category III / Pollution degree 3
Ratings perIEC/EN 60947-7-3 / IEC/EN 60947-7-3 / IEC/EN 60947-7-3
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage250 V
Rated impulse withstand voltage6 kV
Rated current6.3 A

Electrical data - Ratings per IEC/EN – Notes

Ratings (note)Electrical ratings are given by the fuse and blown fuse indication.
Rated current (note)Leakage current in case of a blown fuse: LED 2 mA

Electrical data - Ratings per UL

Approvals perUL 1059
Rated voltage UL (Use Group B)120 V
Rated current UL (Use Group B)10 A
Rated voltage UL (Use Group C)120 V
Rated current UL (Use Group C)10 A
Rated voltage UL (Use Group D)120 V
Approvals perUL 1059 / UL 1059 / UL 1059
Use groupB / C / D
Rated voltage120 V / 120 V / 120 V
Rated current10 A / 10 A

Electrical data - Ratings per CSA

Approvals perCSA 22.2 No 158
Rated voltage CSA (Use Group B)120 V
Rated current CSA (Use Group B)10 A
Rated voltage CSA (Use Group C)120 V
Rated current CSA (Use Group C)10 A
Rated voltage CSA (Use Group D)120 V
Rated current CSA (Use Group D)10 A
Approvals perCSA 22.2 No 158 / CSA 22.2 No 158 / CSA 22.2 No 158
Use groupB / C / D
Rated voltage120 V / 120 V / 120 V
Rated current10 A / 10 A / 10 A

Electrical data - Ex information

Reference to hazardous areasSee “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Ratings perATEX: PTB 20 ATEX 1007 U / IECEx: PTB 20.0013U (Ex ec IIC Gc)
Rated voltage EN (Ex e II)275 V
Rated current (Ex e II)6.3 A

Electrical data - Power Loss

Maximum power loss P<sub>loss</sub> of fuse insert for overload and short-circuit protection (individual arrangement)1.6 W
Maximum power loss P<sub>loss</sub> of fuse insert for overload and short-circuit protection (block arrangement)1.6 W
Power loss P<sub>l</sub> max. short-circuit protection (individual arrangement)2.5 W
Power loss P<sub>loss</sub> (max.) of fuse cartridge for short-circuit protection (block arrangement)2.5 W

Electrical data - General information

Fuse receptaclepivoting
Fuse typeCylindrical fuse; 5 x 20 mm
Wiring directionFront-entry wiring

Connection data

Clamping units2
Total number of potentials1
Number of levels1
Number of jumper slots3

Connection data - Connection 1

Connection technologyPush-in CAGE CLAMP®
Actuation typePush-button
Connectable conductor materialsCopper
Nominal cross-section2.5 mm²
Solid conductor0.25 … 4 mm² / 22 … 12 AWG
Solid conductor; push-in termination0.75 … 4 mm² / 18 … 12 AWG
Fine-stranded conductor0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor; with insulated ferrule0.25 … 2.5 mm² / 22 … 14 AWG
Fine-stranded conductor; with ferrule; push-in termination1 … 2.5 mm² / 18 … 14 AWG
Note (conductor cross-section)Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length10 … 12 mm / 0.39 … 0.47 inches
Wiring directionFront-entry wiring

Physical data

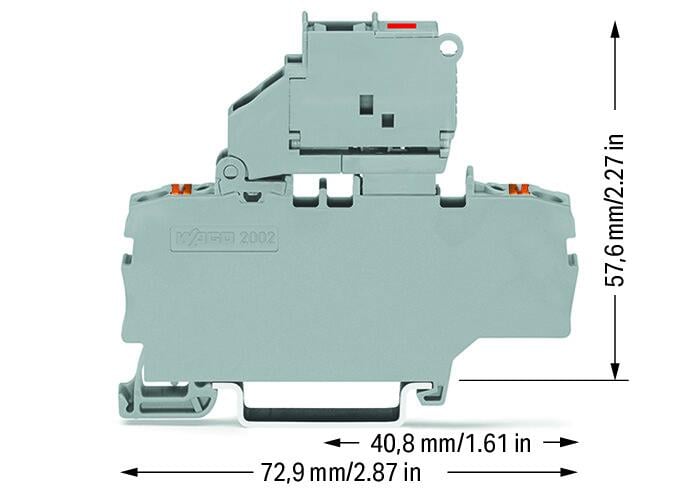

Width6.2 mm / 0.244 inches
Height72.9 mm / 2.87 inches
Depth from upper-edge of DIN-rail57.6 mm / 2.268 inches

Mechanical data

Mounting typeDIN-35 rail
Marking levelCenter/side marking

Material data

Note (material data)Information on material specifications can be found here
Colorgray
Material groupI
Insulation material (main housing)Polyamide (PA66)
Flammability class per UL94V0
Fire load0.319 MJ
Actuator colororange
Weight14.6 g

Environmental requirements

Processing temperature-35 … +85 °C
Continuous operating temperature-60 … +105 °C

Commercial data

PU (SPU)50 pcs
Packaging typebox
Country of originDE
GTIN4055143962377
Customs tariff number85369095000

Product Classification

UNSPSC39121410
ETIM 9.0EC000899
ETIM 10.0EC000899
ECCNNO US CLASSIFICATION

Environmental Product Compliance

CAS-No.1303-86-2, 1317-36-8, 7439-92-1
REACH Candidate List SubstanceDiboron trioxide, Lead, Lead monoxide
RoHS Compliance StatusCompliant,With Exemption
RoHS Exemption7(c)-I
SCIP notification number (Austria)7d11acc2-e53d-46b4-9e40-e99ce90f5fe9
SCIP notification number (Belgium)143607e8-3540-4c76-9f84-598f79db71f4
SCIP notification number (Bulgaria)354d6503-ac34-4cfa-a1f2-2947a2b686fa
SCIP notification number (Czech Republic)a04aea08-9d6c-4b87-a033-e6053272779a
SCIP notification number (Denmark)3adeb7ff-b8f8-4b2e-915b-2b9326e4898d
SCIP notification number (Finland)87223013-6ce9-48d8-996c-ff157b8357a1
SCIP notification number (France)2f9b1ef0-7b6f-465b-bdb1-1af66b9881a3
SCIP notification number (Germany)26a347cc-142f-4dd7-8b81-88dc7de1f2ab
SCIP notification number (Hungary)589429f5-e18b-4423-ae4a-df3f6b1d5f96
SCIP notification number (Italy)fd368f37-a723-4240-b720-d50f786a35f1
SCIP notification number (Netherlands)84636c8a-ae6e-444b-8438-886ed3de7c1a
SCIP notification number (Poland)3f4a54f5-28d1-46e4-9ef4-fe8597bfdab0
SCIP notification number (Romania)48bd5059-6440-434a-83e8-25753341b45b
SCIP notification number (Sweden)2846760f-f918-4736-b657-93a4a13fbce4
