Wago 2202-1611/1000-541

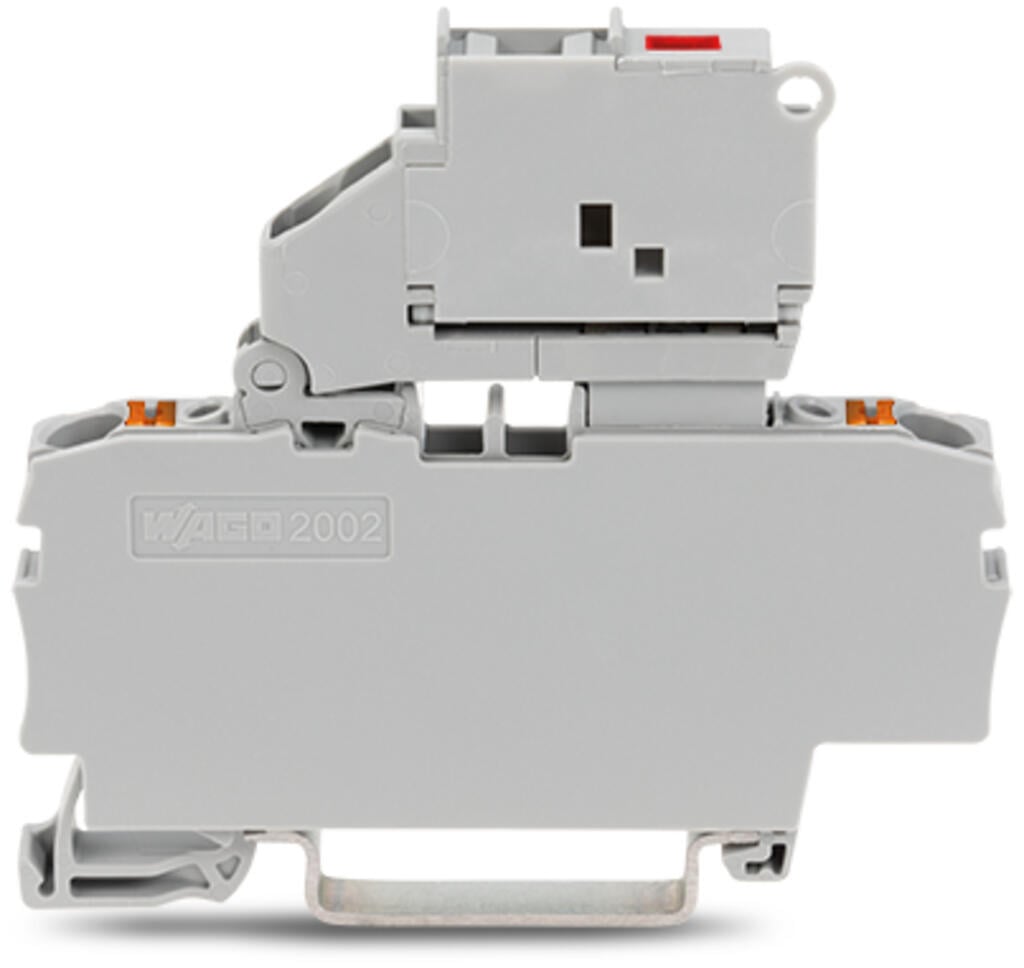

Fuse terminal block, 2202 Series, grayOur fuse terminal block (item number 2202-1611/1000-541) makes connections quick and easy. Strip lengths must be between 10 and 12 mm  when connecting conductors…

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Fuse terminal block, 2202 Series, grayOur fuse terminal block (item number 2202-1611/1000-541) makes connections quick and easy. Strip lengths must be between 10 and 12 mm  when connecting conductors to this fuse terminal block. This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® technology provides a universal connection solution for any type of conductor. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Depending on the type of conductor, this fuse terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm².This product is designed for specific Ex applications (please refer to the product datasheet).

Specification

Notes

Safety InformationThe 2 mm test slot is only approved for high impedance measurement up to max. 100 mA.

Electrical data - Ratings per IEC/EN

Ratings perIEC/EN 60947-7-3
Nominal voltage (III/3)250 V
Rated impulse withstand voltage (III / 3)6 kV
Rated current6.3 A
Blown fuse indication12 … 30 V
Legend (ratings)(III / 3) ≙ Overvoltage category III / Pollution degree 3
Ratings perIEC/EN 60947-7-3 / IEC/EN 60947-7-3 / IEC/EN 60947-7-3
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage250 V
Rated impulse withstand voltage6 kV
Rated current6.3 A

Electrical data - Ratings per IEC/EN – Notes

Ratings (note)Electrical ratings are given by the fuse and blown fuse indication.
Rated current (note)Leakage current in case of a blown fuse: LED 2.2 mA (at 24 V operating voltage)

Electrical data - Ratings per IEC/EN 2

Ratings perIEC/EN 60947-7-3
Rated voltage (III / 3)30 V
Rated impulse withstand voltage (III/3)0.8 kV
Ratings perIEC/EN 60947-7-3 / IEC/EN 60947-7-3 / IEC/EN 60947-7-3
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage30 V
Rated impulse withstand voltage0.8 kV

Electrical data - Ratings per UL

Approvals perUL 1059
Rated voltage UL (Use Group B)30 V
Rated current UL (Use Group B)10 A
Rated voltage UL (Use Group C)30 V
Rated current UL (Use Group C)10 A
Rated voltage UL (Use Group D)30 V
Approvals perUL 1059 / UL 1059 / UL 1059
Use groupB / C / D
Rated voltage30 V / 30 V / 30 V
Rated current10 A / 10 A

Electrical data - Ratings per CSA

Approvals perCSA 22.2 No 158
Rated voltage CSA (Use Group B)30 V
Rated current CSA (Use Group B)10 A
Rated voltage CSA (Use Group C)30 V
Rated current CSA (Use Group C)10 A
Rated voltage CSA (Use Group D)30 V
Rated current CSA (Use Group D)10 A
Approvals perCSA 22.2 No 158 / CSA 22.2 No 158 / CSA 22.2 No 158
Use groupB / C / D
Rated voltage30 V / 30 V / 30 V
Rated current10 A / 10 A / 10 A

Electrical data - Ex information

Reference to hazardous areasSee “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Ratings perATEX: PTB 20 ATEX 1007 U / IECEx: PTB 20.0013U (Ex ec IIC Gc)
Rated voltage EN (Ex e II)275 V
Rated current (Ex e II)6.3 A

Electrical data - Power Loss

Power loss (max.) P<sub>l (max.)</sub> (note)When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers.
Maximum power loss P<sub>loss</sub> of fuse insert for overload and short-circuit protection (individual arrangement)1.6 W
Maximum power loss P<sub>loss</sub> of fuse insert for overload and short-circuit protection (block arrangement)1.6 W
Power loss P<sub>l</sub> max. short-circuit protection (individual arrangement)2.5 W
Power loss P<sub>loss</sub> (max.) of fuse cartridge for short-circuit protection (block arrangement)2.5 W

Electrical data - General information

Fuse receptaclepivoting
Fuse typeCylindrical fuse; 5 x 20 mm
Wiring directionFront-entry wiring

Connection data

Clamping units2
Total number of potentials1
Number of levels1
Number of jumper slots2

Connection data - Connection 1

Connection technologyPush-in CAGE CLAMP®
Actuation typePush-button
Connectable conductor materialsCopper
Nominal cross-section2.5 mm²
Solid conductor0.25 … 4 mm² / 22 … 12 AWG
Solid conductor; push-in termination0.75 … 4 mm² / 18 … 12 AWG
Fine-stranded conductor0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor; with insulated ferrule0.25 … 2.5 mm² / 22 … 14 AWG
Fine-stranded conductor; with ferrule; push-in termination1 … 2.5 mm² / 18 … 14 AWG
Note (conductor cross-section)Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length10 … 12 mm / 0.39 … 0.47 inches
Wiring directionFront-entry wiring

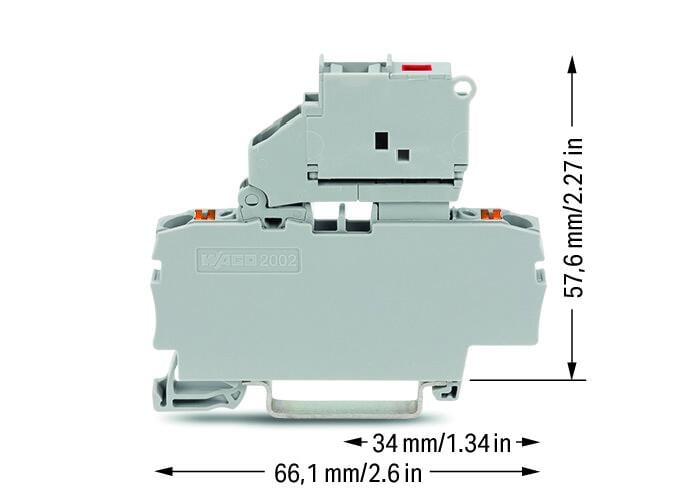

Physical data

Width6.2 mm / 0.244 inches
Height66.1 mm / 2.602 inches
Depth from upper-edge of DIN-rail57.6 mm / 2.268 inches

Mechanical data

Mounting typeDIN-35 rail
Marking levelCenter/side marking

Material data

Note (material data)Information on material specifications can be found here
Colorgray
Material groupI
Insulation material (main housing)Polyamide (PA66)
Flammability class per UL94V0
Fire load0.303 MJ
Actuator colororange
Weight13.8 g

Environmental requirements

Ambient temperature (operation)-35 … +70 °C
Processing temperature-35 … +70 °C
Continuous operating temperature-35 … +70 °C

Commercial data

PU (SPU)50 pcs
Packaging typebox
Country of originDE
GTIN4066966333978
Customs tariff number85369095000

Product Classification

UNSPSC39121410
ETIM 9.0EC000899
ETIM 10.0EC000899
ECCNNO US CLASSIFICATION

Environmental Product Compliance

CAS-No.1303-86-2, 1317-36-8, 7439-92-1
REACH Candidate List SubstanceDiboron trioxide, Lead, Lead monoxide
RoHS Compliance StatusCompliant,With Exemption
RoHS Exemption7(c)-I
SCIP notification number (Austria)13a473b7-cdf9-4165-9985-90baaba4ae95
SCIP notification number (Belgium)95021212-fc07-464c-8985-f4e24111b734
SCIP notification number (Bulgaria)c0731da2-6c24-4673-9bad-7183cfbe9e67
SCIP notification number (Czech Republic)4a690a30-4b59-47a3-83f3-c55b98c8ad25
SCIP notification number (Denmark)6645d225-1002-481b-a51a-8f9cee4c2f6f
SCIP notification number (Finland)1ae8229f-ecf6-4731-9623-bfc9c3cca243
SCIP notification number (France)0183b06d-2eb0-4b02-b5a5-5e387157f47f
SCIP notification number (Germany)92665940-e015-4f10-90ab-e34e2a8f267e
SCIP notification number (Hungary)2f24fb52-8e7b-4c79-950b-6c9a9f9c99cd
SCIP notification number (Italy)306faabf-a312-468c-8016-a32341fe7d2a
SCIP notification number (Netherlands)d822484f-523a-4495-9022-706ec15940a5
SCIP notification number (Poland)cc09f2e3-2900-47d6-bbb5-1913fd02bcc1
SCIP notification number (Romania)7af5f7f7-a0af-4743-a528-e9da7d106771
SCIP notification number (Sweden)8ffbe5cb-f5f2-4b6e-90d9-6715b970e950
