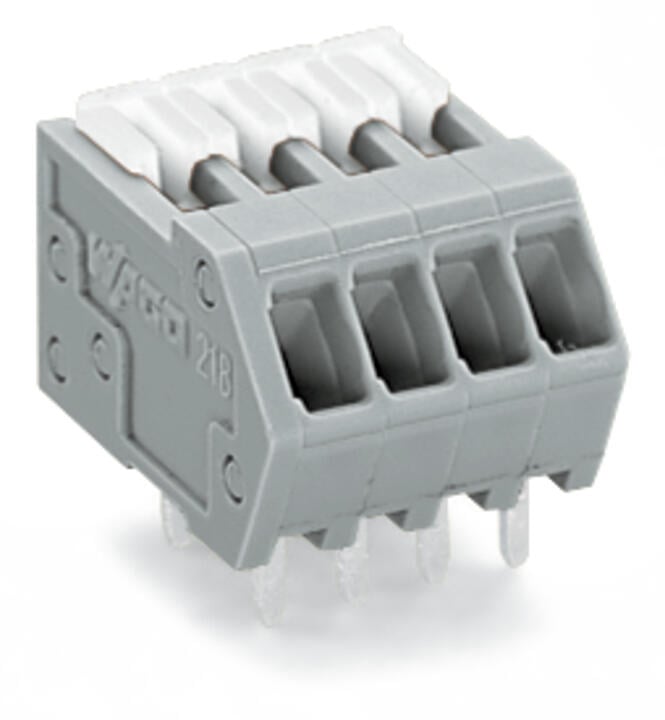

Wago 218-503

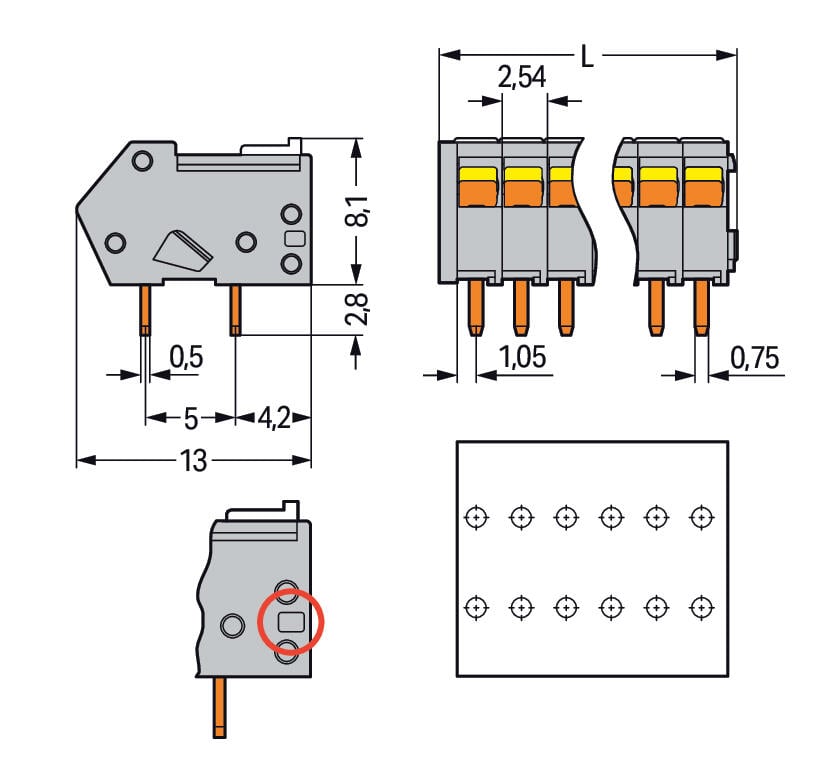

PCB terminal block, 218 Series, solder pin dimensions 0.5 x 0.75 mmConnect conductors quickly and securely with this PCB terminal block (item number 218-503). You can count on trusted safety with these PCB terminal blocks, perfect for a wide range of applications when designing your devices. Our PCB terminal block is rated for 160 V and is designed to handle a rated current of up to 6 A. Ensure that the strip lengths are between 5 mm and 6 mm when connecting conductors to this PCB terminal block. Featuring one conductor terminal along with CAGE CLAMP®, this product delivers reliable performance. Our CAGE CLAMP® connection offers a dependable and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Dimensions: 9.12 x 10.9 x 13 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 0.5 mm². It features one level and three clamping points for connecting three potentials / 3 poles. The clamping spring is made of chrome-nickel spring steel (CrNi), the contacts are made of electrolytic copper (ECu), and the gray housing is made of polyamide (PA66) for insulation. Tin is used for coating the contact surfaces. This PCB terminal block is operated with a slider. THT is used to assemble the PCB terminal block. Insert the conductor at an angle of 40°.. The solder pins, which are 0.5 x 0.75 mm in cross-section and 2.8 mm long, are arranged over the entire terminal strip (in-line). There are two solder pins per potential.
