Wago 218-503/000-604

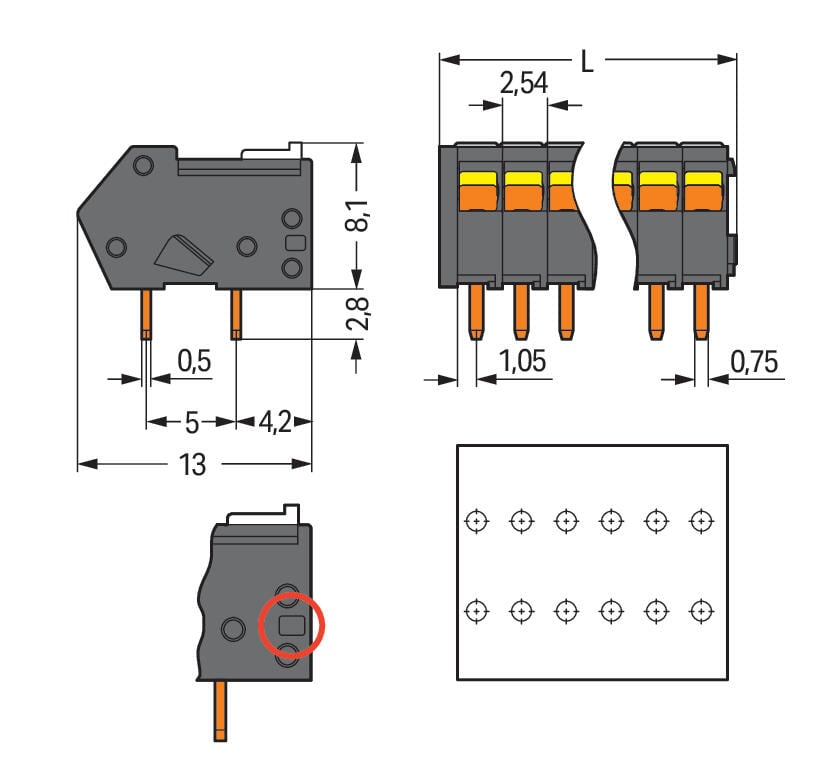

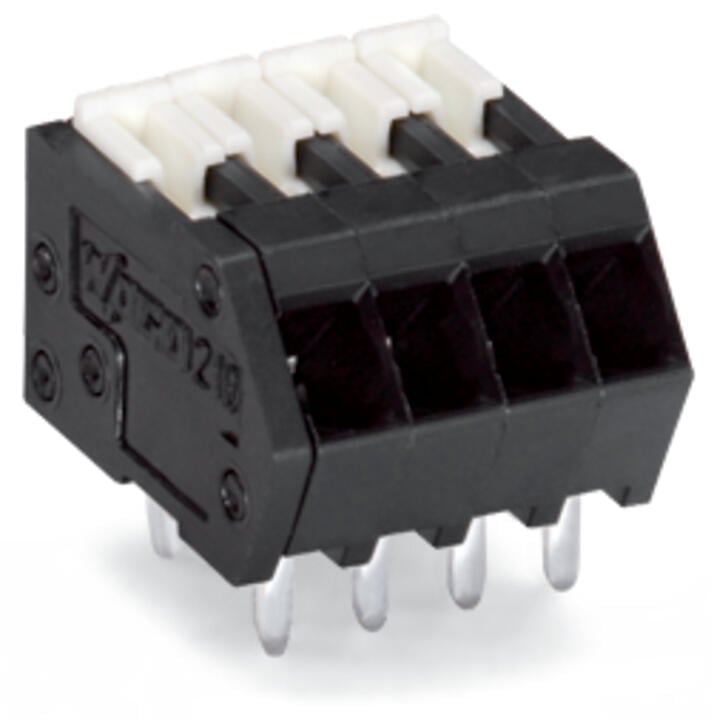

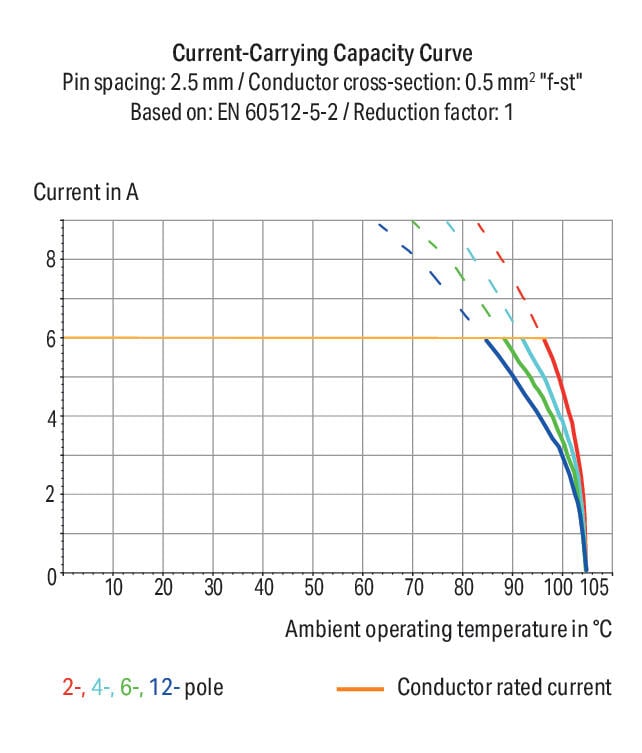

PCB terminal block, 218 Series, 40 °conductor entry to boardOur PCB terminal block (item number 218-503/000-604) is designed for seamless electrical installations. You can rely on proven safety with these PCB terminal blocks, perfect for a wide variety of applications when designing your devices. Rated current and voltage are key factors to consider when choosing a PCB terminal block, as they indicate possible applications and uses. This product has a rated voltage of 160 V and a rated current of 6 A. Strip lengths must be between 5 mm and 6 mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes CAGE CLAMP®. Our tried-and-tested universal connection known as CAGE CLAMP® leads the way when it comes to connection technology and electrical interconnections. Dimensions: 9.12 x 10.9 x 13 mm (width x height x depth). Depending on the conductor type, this PCB terminal block is ideal for conductor cross sections ranging from 0.08 mm² to 0.5 mm². Up to three potentials / three poles can be connected to this terminal strip using three clamping points on one level. The contacts are made of electrolytic copper (ECu), the black housing is made of polyamide (PA46) for insulation, and the clamping spring is made of chrome-nickel spring steel (CrNi). The contact surface is coated with tin. This PCB terminal block is operated with a slider. The PCB terminal block is designed for THR soldering. Insert the conductor at a 40° angle.. The solder pins, which are 0.5 x 0.75 mm in cross-section and 2.8 mm long, are arranged over the entire terminal strip (in-line). There are two solder pins per potential.
