Wago 218-503/000-604/997-405

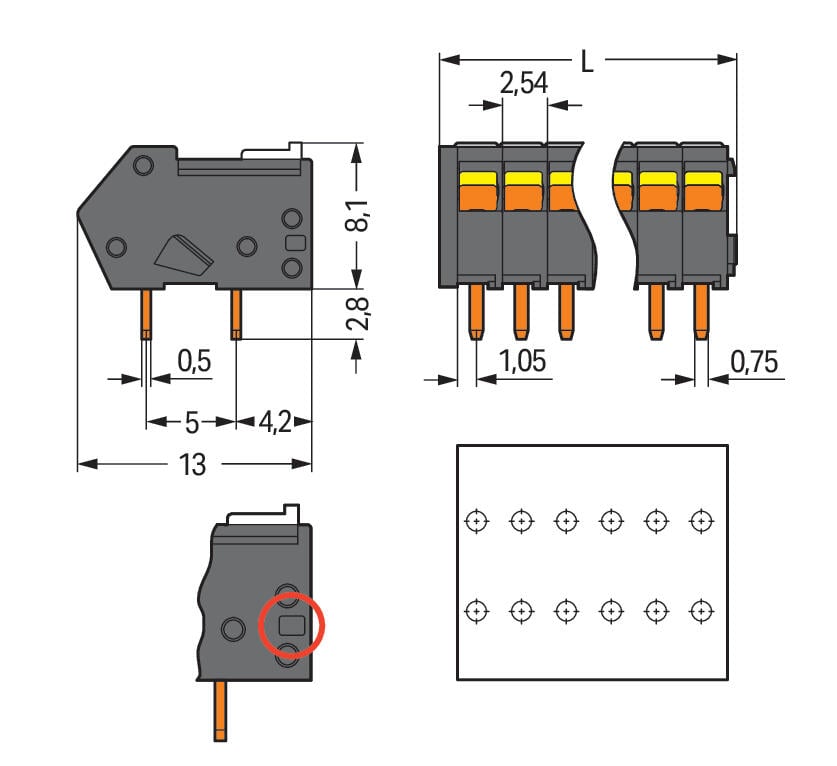

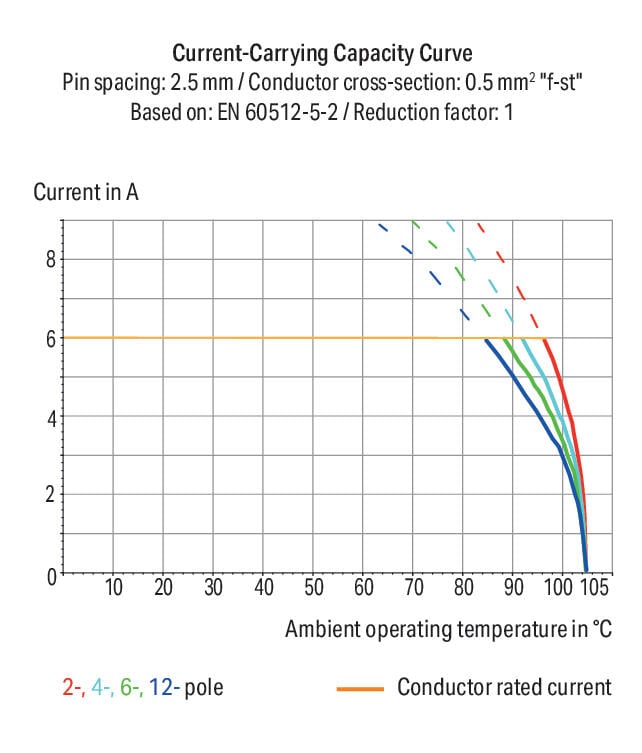

PCB terminal block, 218 Series, blackOur PCB terminal block (item number 218-503/000-604/997-405) makes connections quick and easy. You can count on trusted safety with these PCB terminal blocks, perfect for a host of applications when designing your devices. Rated current and voltage are important parameters when selecting a PCB terminal block, as they indicate how the product can be used. This product has a rated voltage of 160 V and a rated current of 6 A. Ensure that the strip lengths are between 5 mm and 6 mm when connecting conductors to this PCB terminal block. This product incorporates one conductor terminal and utilizes CAGE CLAMP®. Our proven universal connection known as CAGE CLAMP® is the industry standard for connection technology and electrical interconnections. Dimensions: 9.12 x 10.9 x 13 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 0.5 mm². It has one level. You can connect three potentials / three poles using the three clamping points. The contacts are made of electrolytic copper (ECu), the clamping spring is made of chrome-nickel spring steel (CrNi), and the black housing is made of polyamide (PA46) for insulation. The contact surface is coated with tin. This PCB terminal block is operated with a slider. THR is used to assemble the PCB terminal block. Insert the conductor at an angle of 40°.. The solder pins, which are 0.5 x 0.75 mm in cross-section and 2.8 mm long, are arranged over the entire terminal strip (in-line). There are two solder pins per potential.
