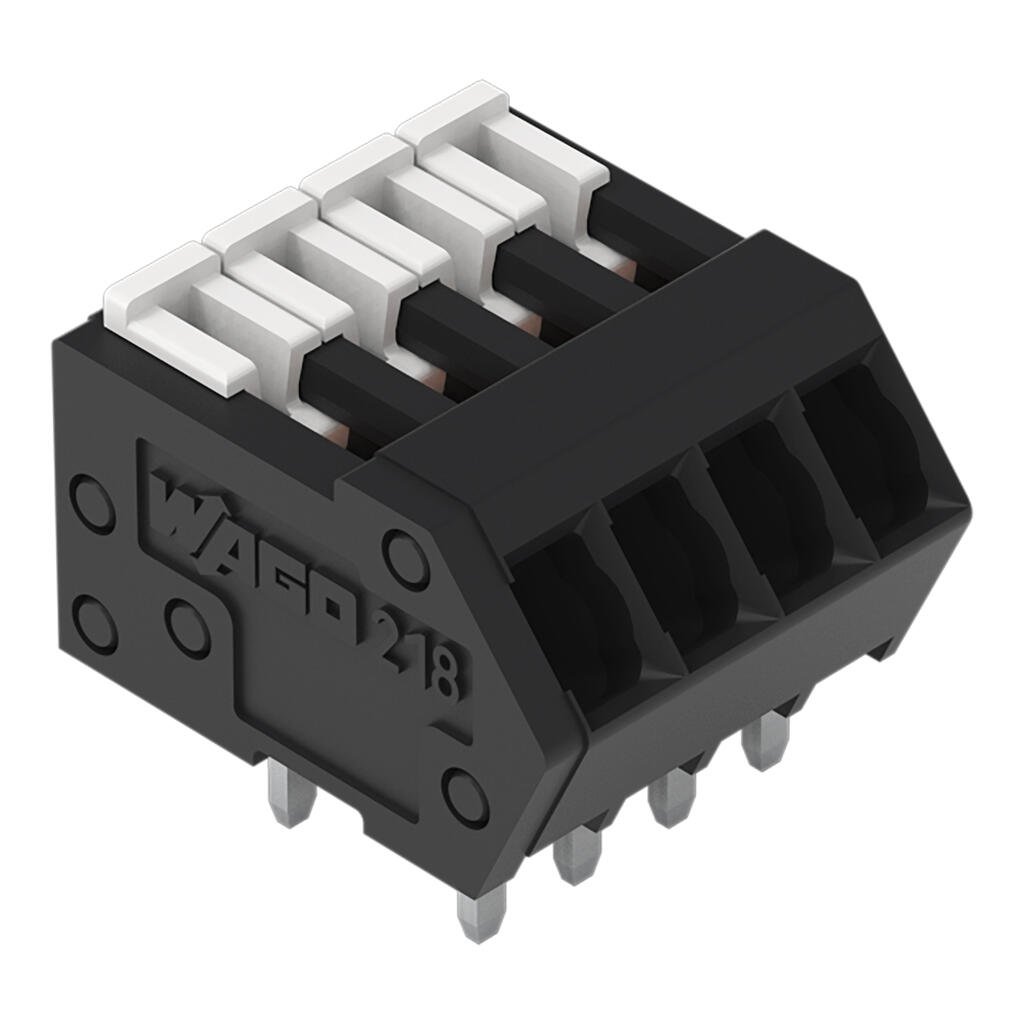

Wago 218-106/000-604

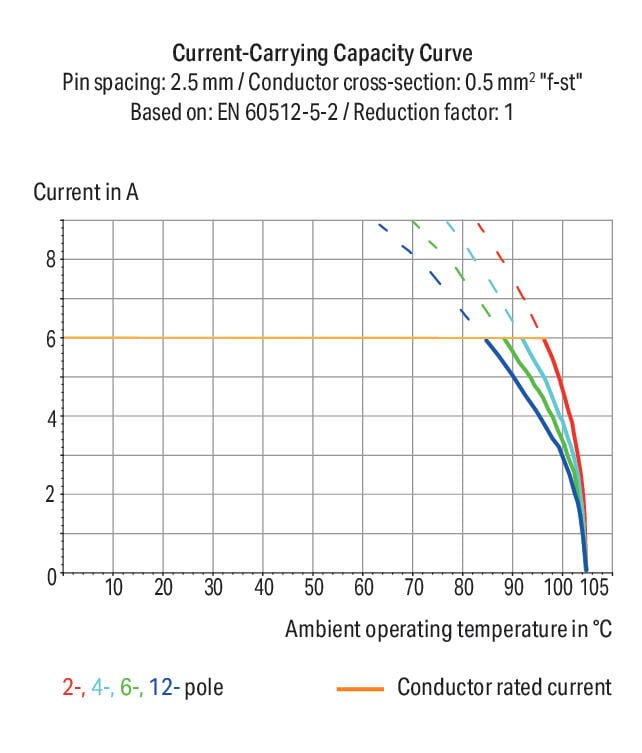

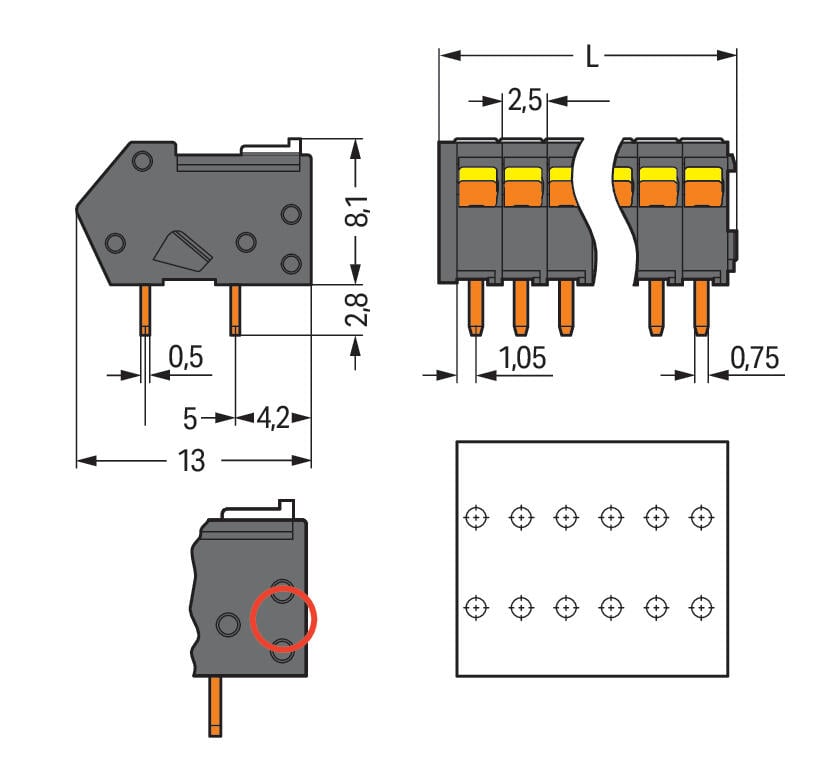

PCB terminal block, 218 Series, with 2.5 mm pin spacingEasily, quickly and safely connect conductors with this PCB terminal block (item number 218-106/000-604). It is a universal connector that can be used almost anywhere, for example, as a pluggable PCB connector, panel feedthrough header, connector for rail-mount terminal blocks, or a floating connector for different mounting methods. Our PCB terminal block is rated for 160 V and is designed for use with a rated current of up to 6 A. Strip lengths must be between 5 mm and 6 mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes CAGE CLAMP®. Our CAGE CLAMP® connection offers a proven and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Dimensions: 16.5 x 10.9 x 13 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 0.5 mm². Up to six potentials / six poles can be connected to this terminal strip using six clamping points on one level. The clamping spring is made of chrome-nickel spring steel (CrNi), the black housing is made of polyamide (PA46) for insulation, and the contacts are made of electrolytic copper (ECu). The contact surface is coated with tin. This PCB terminal block is operated with a slider. The PCB terminal block is designed for THR soldering. Insert the conductor into the board at an angle of 40°.. The solder pins measure 0.5 x 0.75 mm in cross-section and 2.8 mm in length and are arranged over the entire terminal strip (in-line). There are two solder pins per potential.
