Wago 218-104/000-604/997-405

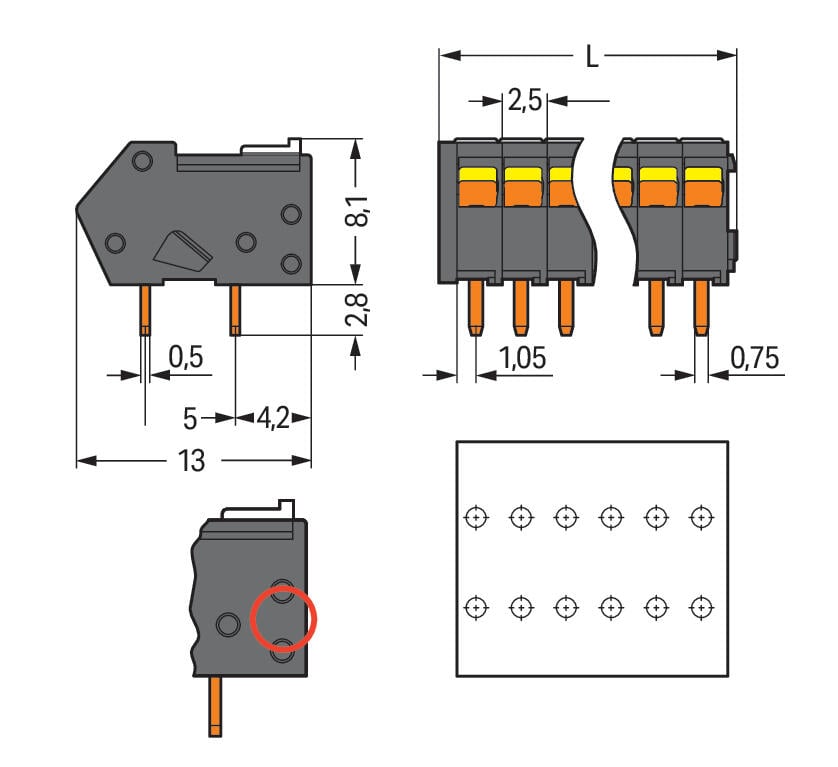

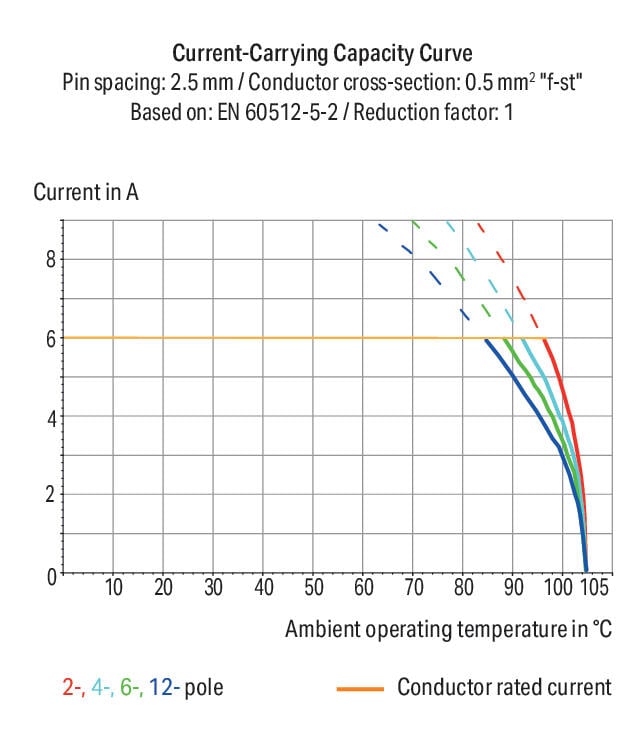

PCB terminal block, 218 Series, solder pin dimensions 0.5 x 0.75 mmConnecting conductors is quick and easy with this PCB terminal block (item number 218-104/000-604/997-405). It is a universal connector that can be used practically anywhere, e.g., as a pluggable PCB connector, panel feedthrough header, connector for rail-mount terminal blocks, or a floating connector for different mounting methods. Rated current and voltage are important parameters when selecting a PCB terminal block, as they indicate how the product can be used. This product has a rated voltage of 160 V and a rated current of 6 A. Conductors can only be connected to this PCB terminal block if their strip length is between 5 mm and 6 mm. Featuring one conductor terminal along with CAGE CLAMP®, this product outperforms the competition. Our reliable and maintenance-free CAGE CLAMP® connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don’t need to crimp ferrules. The item’s dimensions are 11.5 x 10.9 x 13 mm (width x height x depth). Depending on the conductor type, this PCB terminal block is designed for conductor cross sections ranging from 0.08 mm² to 0.5 mm². It has one level. Four potentials can connect four poles using the four clamping points The black housing is made of polyamide (PA46) for insulation, the clamping spring is made of chrome-nickel spring steel (CrNi), and the contacts are made of electrolytic copper (ECu). Tin is used for coating the contact surfaces. This PCB terminal block is operated with a slider. THR is used to solder the PCB terminal block. Insert the conductor into the board at a 40° angle.. The solder pins are organized over the entire terminal strip (in-line) and are 0.5 x 0.75 mm cross-section and 2.8 mm in length. Each potential has two solder pins.
