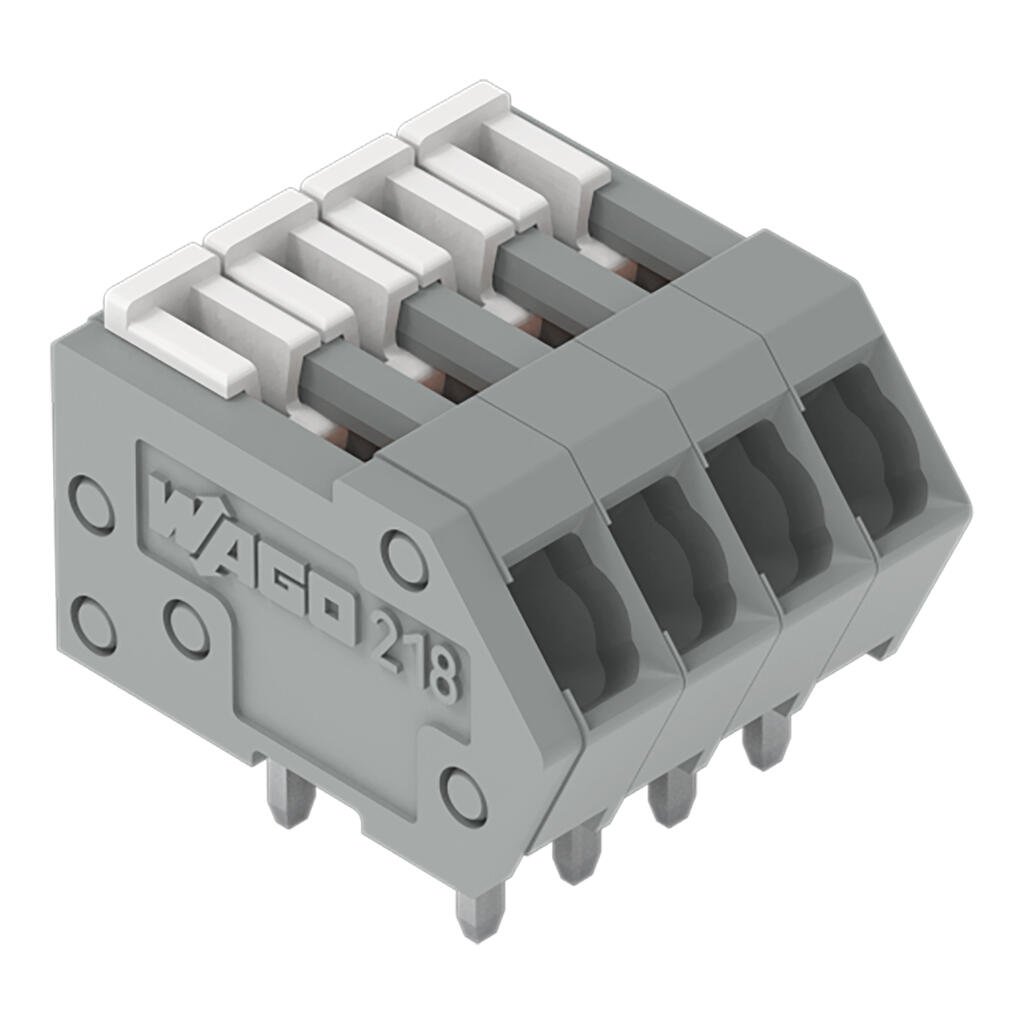

Wago 218-104/000-012

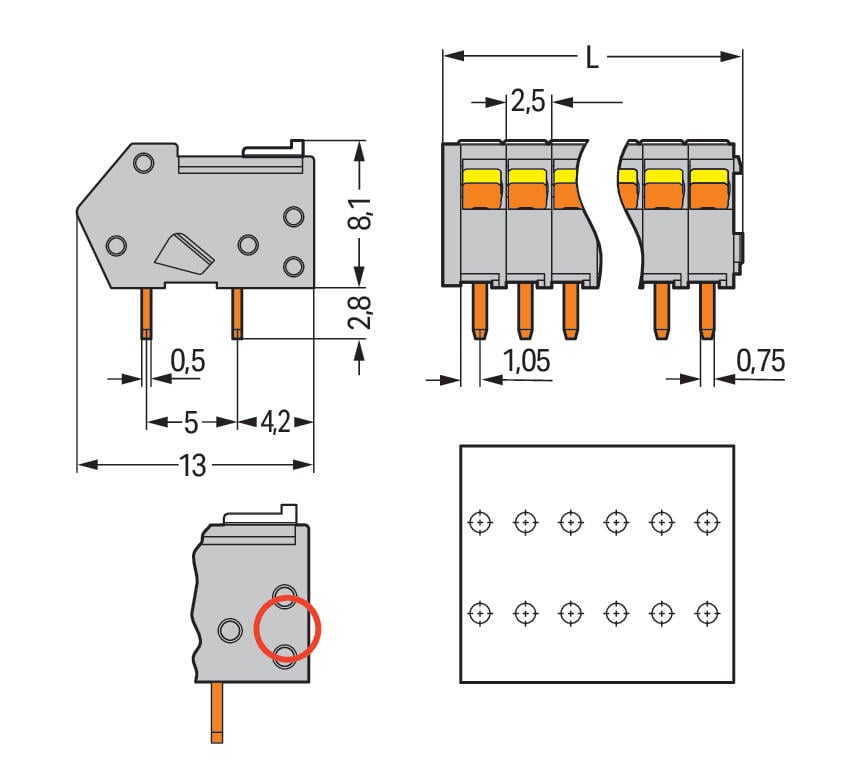

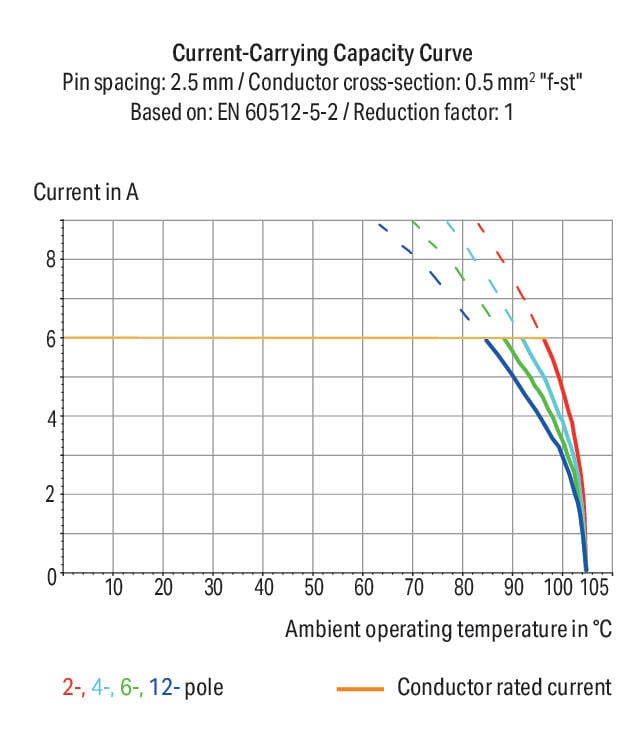

PCB terminal block, 218 Series, with 2.5 mm pin spacingOur PCB terminal block (item number 218-104/000-012) makes connections quick and easy. It is ideal for custom installations with different mounting types. Our PCB terminal block is rated for 160 V and is designed to handle a rated current of up to 6 A. Strip lengths must be between 5 mm and 6 mm when connecting conductors to this PCB terminal block. This product incorporates one conductor terminal and utilizes CAGE CLAMP®. Our highly-rated and maintenance-free CAGE CLAMP® connection makes it easy to connect all types of conductors without having to prepare the conductor. For example, you don’t need to crimp ferrules. Dimensions: 11.5 x 10.9 x 13 mm (width x height x depth). Depending on the type of conductor, this PCB terminal block is designed for conductor cross sections ranging from 0.08 mm² to 0.5 mm². It comes with one level and four clamping points that you can use to connect four potentials / 4 poles. The orange housing is made of polyamide (PA66) for insulation, the contacts are made of electrolytic copper (ECu), and the clamping spring is made of chrome-nickel spring steel (CrNi). The contact surface is coated with tin. This PCB terminal block is operated with a slider. The PCB terminal block is designed for THT soldering. The conductor is designed to be inserted at a 40° angle.. The solder pins are organized over the entire terminal strip (in-line) and are 0.5 x 0.75 mm cross-section and 2.8 mm in length. Each potential has two solder pins.
