Wago 216-267

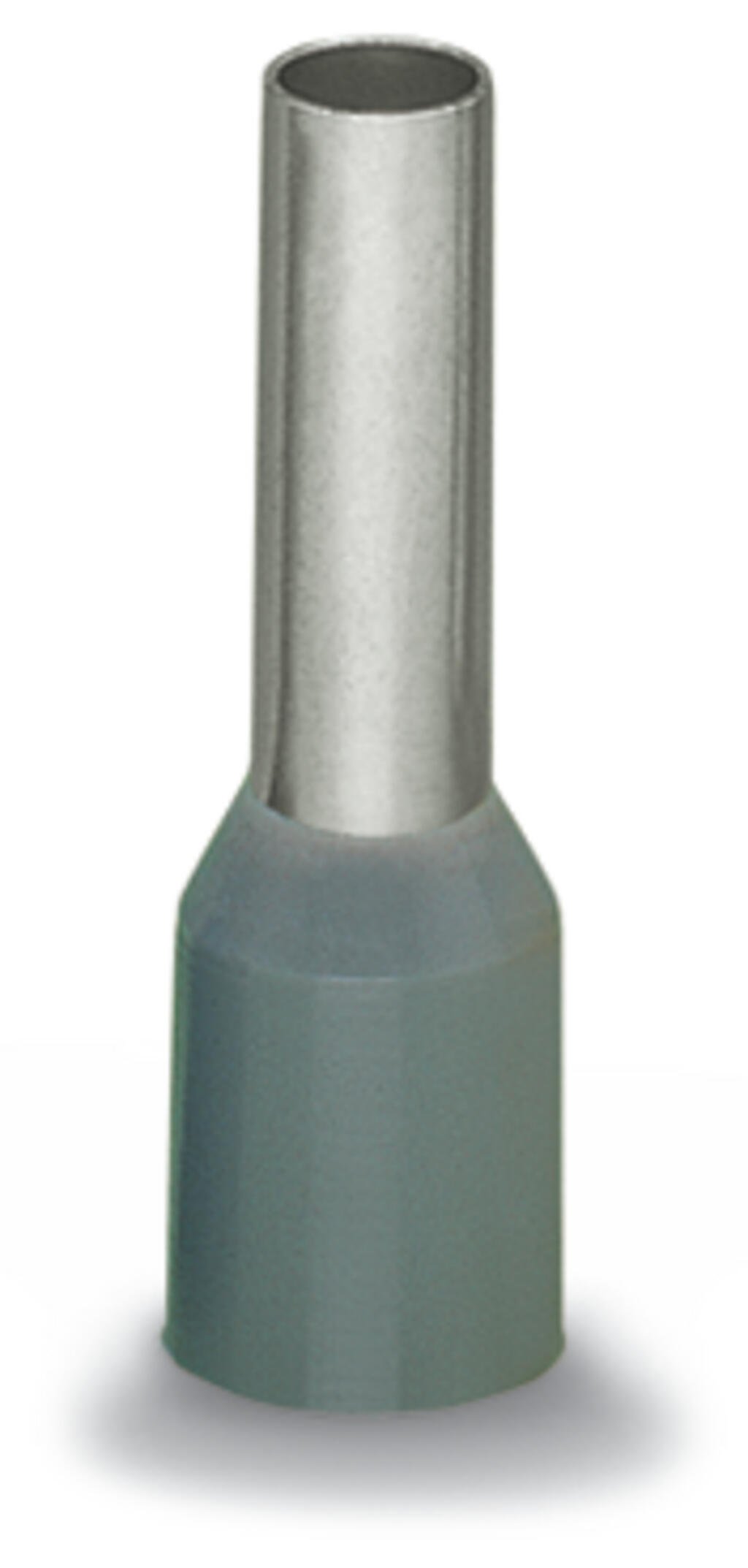

Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; gray 216-267
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90; gray 216-267
Specification
Connection data
| Metric cross-section of the ferrule | 4 mm² |
|---|---|
| Strip length | 14 … 15 mm / 0.55 … 0.59 inches |
| Cross-section (AWG) of ferrule | 12 AWG |

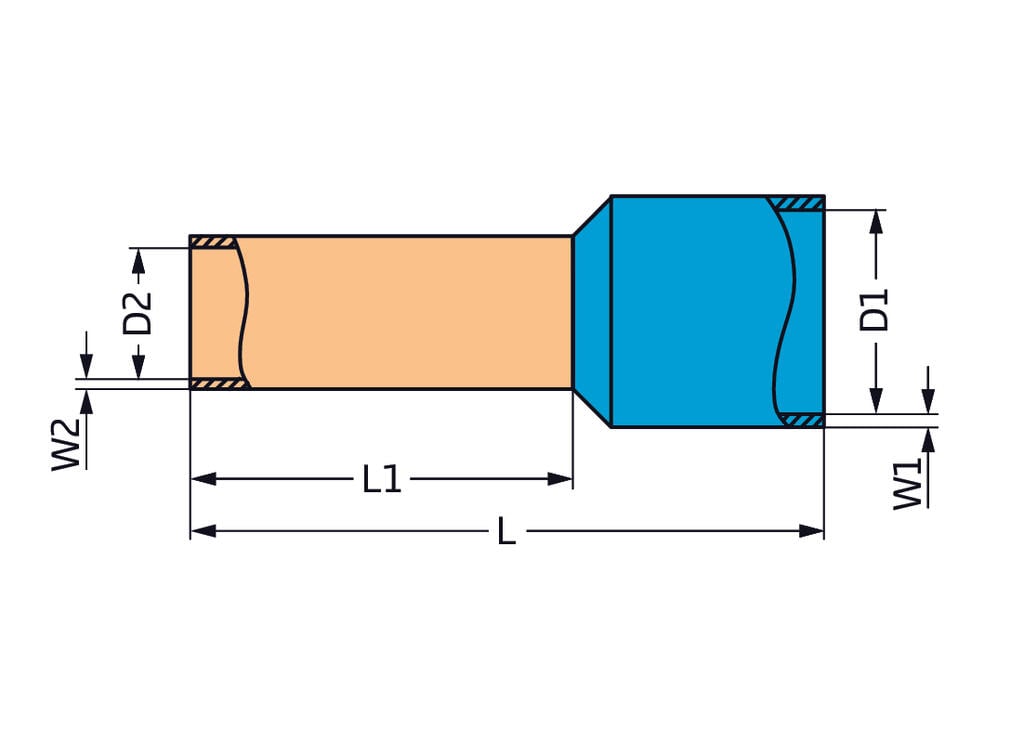

Physical data
| Wall thickness (plastic collar) | 0.3 mm |
|---|---|
| Total length | 20 mm |
| Wall thickness of crimp sleeve | 0.2 mm |
| Crimp length (length of sleeve) | 12 mm |
| Inner diameter of plastic collar | 4.8 mm |
| Diameter crimp sleeve inside | 2.8 mm |
Mechanical data
| Suitable | 2004 to 2006 Series |
|---|
Material data
| Color | gray |
|---|---|
| Fire load | 0.001 MJ |
| Weight | 0.2 g |
Commercial data
| Product Group | 2 (Terminal Block Accessories) |
|---|---|
| PU (SPU) | 500 (100) pcs |
| Packaging type | Bag |
| Country of origin | DE |
| GTIN | 4055143654739 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121405 |
|---|---|
| eCl@ss 10.0 | 27-40-02-01 |
| eCl@ss 9.0 | 27-40-02-01 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
