Wago 216-209

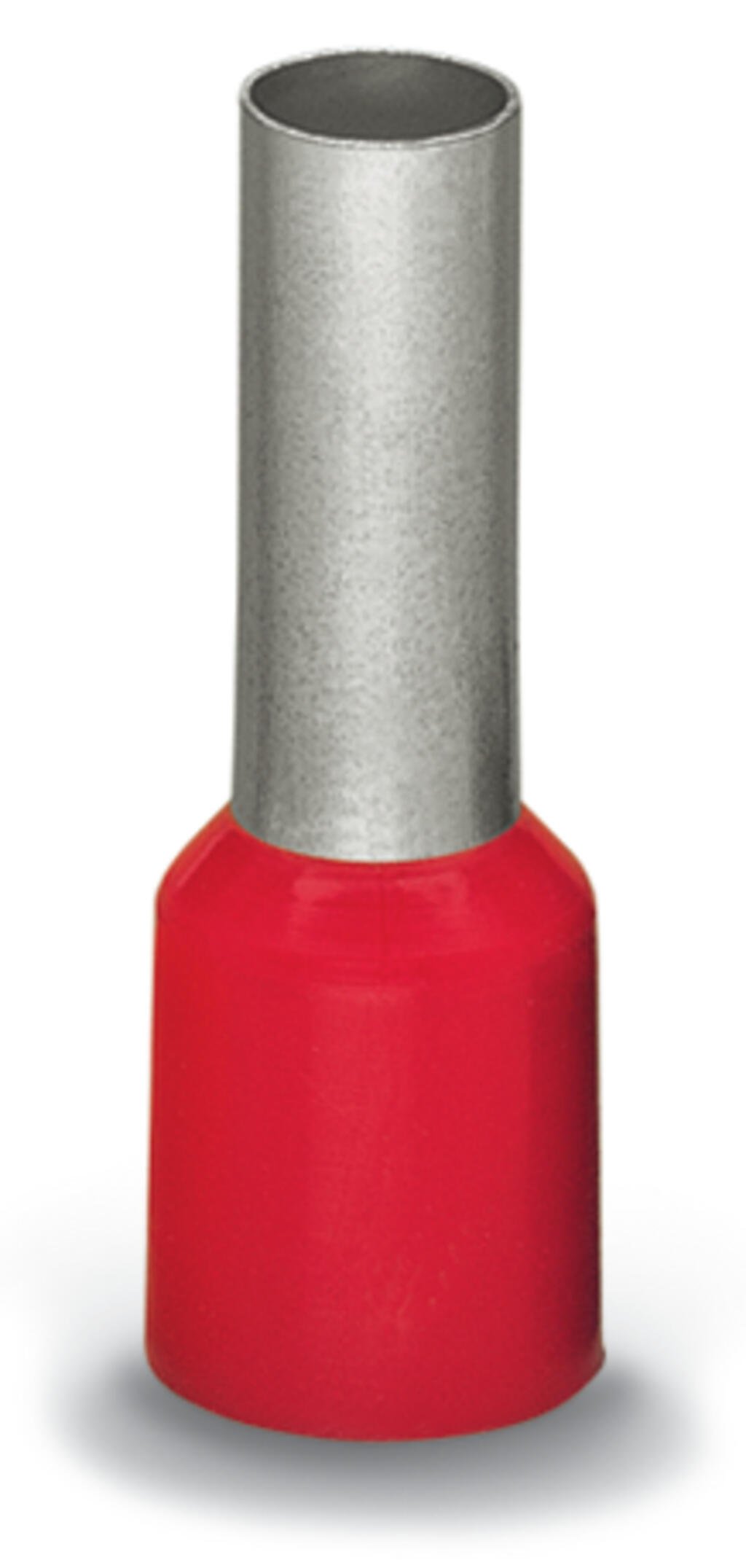

Ferrule; Sleeve for 10 mm² / AWG 8; insulated; electro-tin plated; red 216-209
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ferrule; Sleeve for 10 mm² / AWG 8; insulated; electro-tin plated; red 216-209
Specification
Connection data
| Metric cross-section of the ferrule | 6 mm² |
|---|---|
| Strip length | 16 … 17 mm / 0.63 … 0.67 inches |
| Cross-section (AWG) of ferrule | 8 AWG |

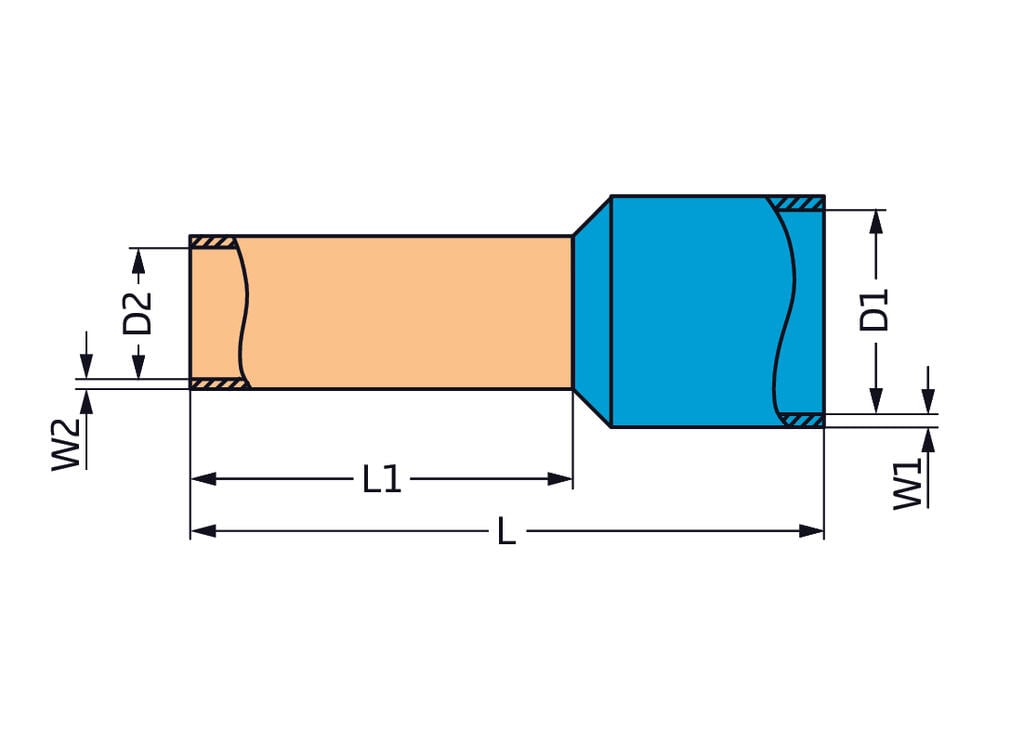

Physical data
| Total length | 22 mm |
|---|---|
| Wall thickness of crimp sleeve | 0.2 mm |
| Wall thickness (plastic collar) | 0.4 mm |
| Crimp length (length of sleeve) | 12 mm |
| Inner diameter of plastic collar | 7.6 mm |
| Diameter crimp sleeve inside | 4.5 mm |
Material data
| Color | red |
|---|---|
| Weight | 0.5 g |
Commercial data
| Product Group | 2 (Terminal Block Accessories) |
|---|---|
| PU (SPU) | 1000 (100) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4017332277549 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121405 |
|---|---|
| eCl@ss 10.0 | 27-40-02-01 |
| eCl@ss 9.0 | 27-40-02-01 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
