Wago 216-207

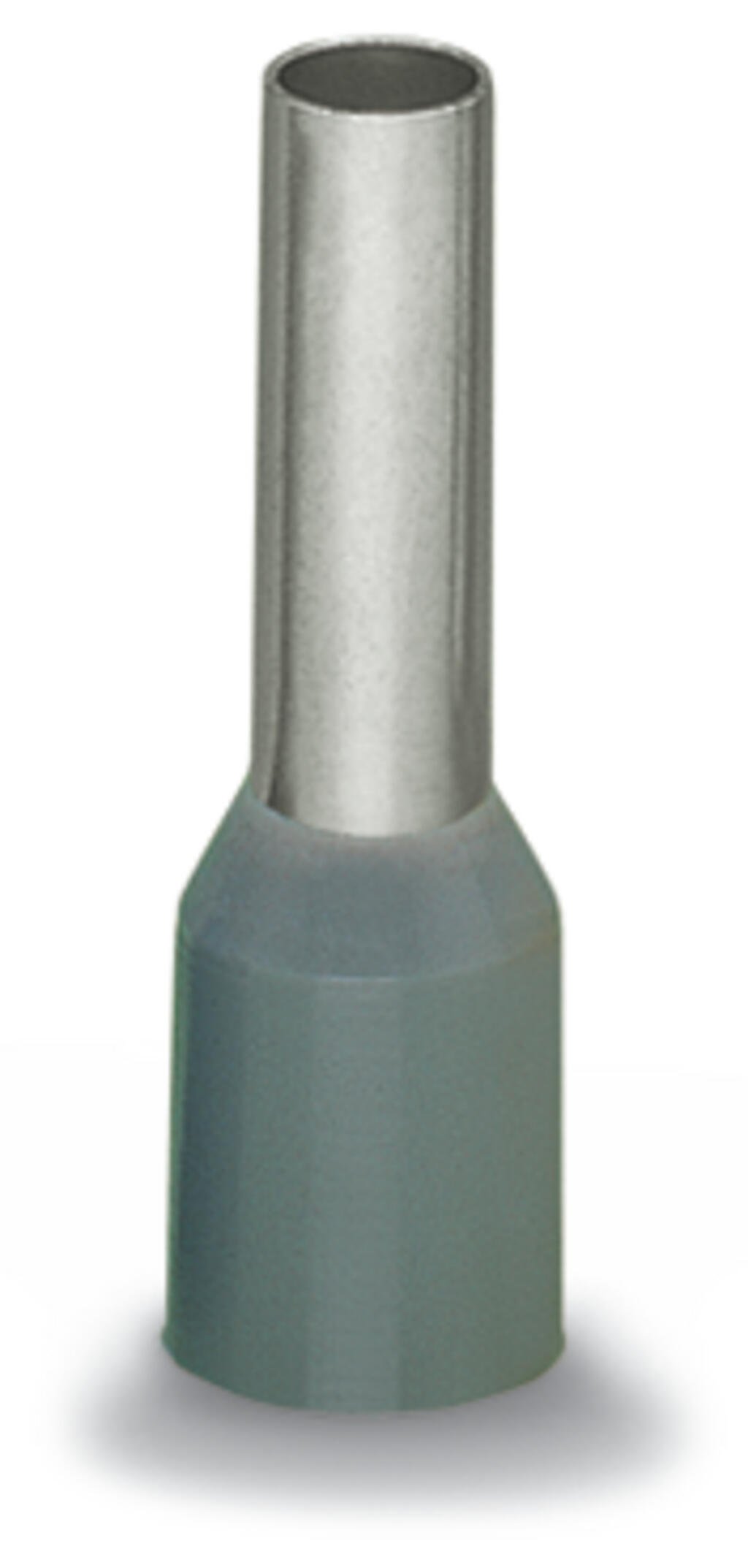

Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; gray 216-207
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; gray 216-207
Specification

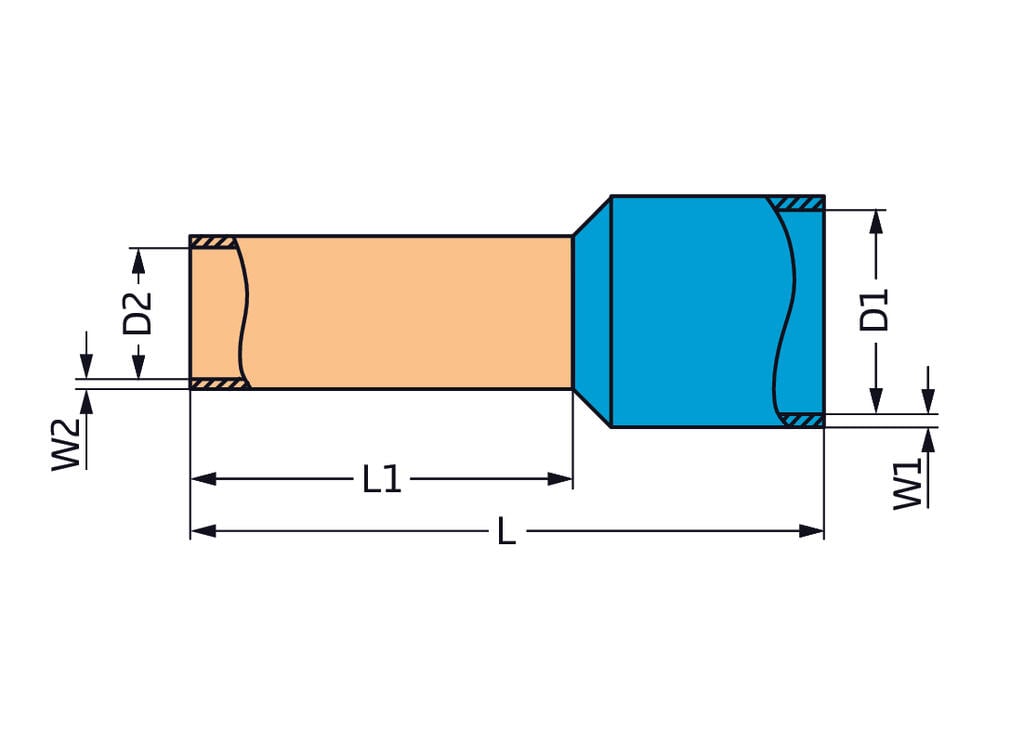

Connection data
| Metric cross-section of the ferrule | 4 mm² |
|---|---|
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
| Cross-section (AWG) of ferrule | 12 AWG |
Physical data
| Wall thickness (plastic collar) | 0.3 mm |
|---|---|
| Total length | 18 mm |
| Wall thickness of crimp sleeve | 0.2 mm |
| Crimp length (length of sleeve) | 10 mm |
| Inner diameter of plastic collar | 4.8 mm |
| Diameter crimp sleeve inside | 2.8 mm |
Material data
| Color | gray |
|---|---|
| Fire load | 0.003 MJ |
| Weight | 0.2 g |
Commercial data
| Product Group | 2 (Terminal Block Accessories) |
|---|---|
| PU (SPU) | 500 pcs |
| Packaging type | Bag |
| Country of origin | DE |
| GTIN | 4055143654708 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121405 |
|---|---|
| eCl@ss 10.0 | 27-40-02-01 |
| eCl@ss 9.0 | 27-40-02-01 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
