Wago 2091-1728

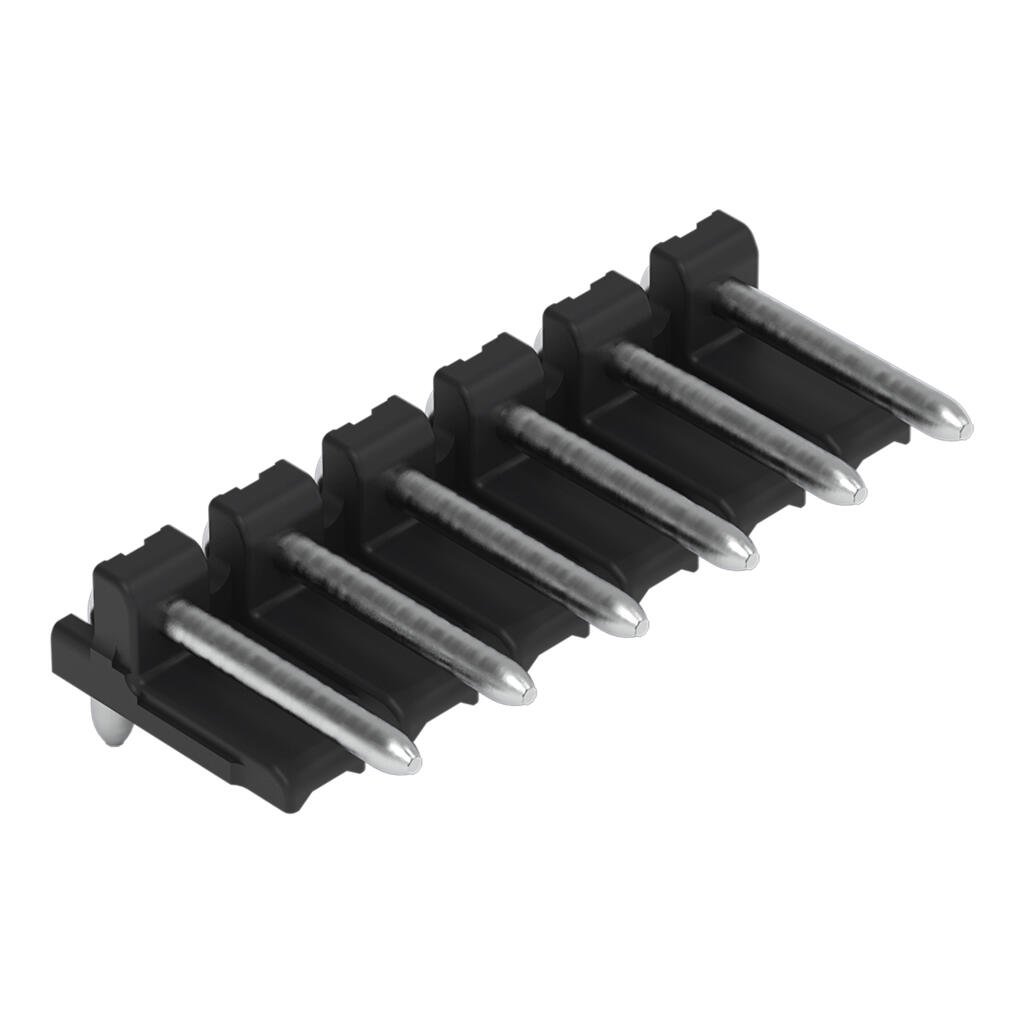

Male connector, 2091 Series, with 3.5 mm pin spacingThis male connector (item number 2091-1728) simplifies electrical installations. Dimensions: (29.7 x 7.1 x 10.2) mm (width x height x depth).Tin is…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Male connector, 2091 Series, with 3.5 mm pin spacingThis male connector (item number 2091-1728) simplifies electrical installations. Dimensions: (29.7 x 7.1 x 10.2) mm (width x height x depth).Tin is used for coating the contact surfaces. The pcb connector is designed for THT soldering.
Specification
Notes
| Safety Information | The picoMAX® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. |
|---|

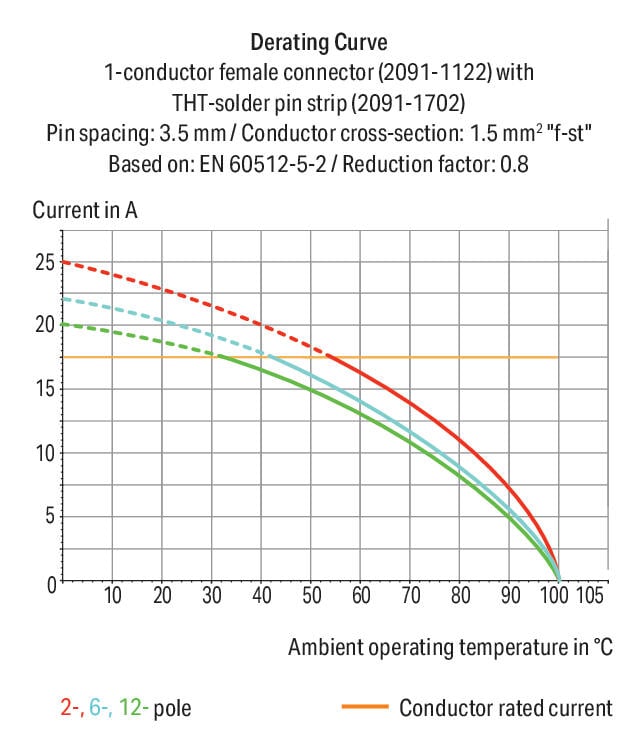

Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 160 V |
| Rated impulse withstand voltage (III / 3) | 2.5 kV |
| Rated voltage (III/2) | 160 V |
| Rated impulse withstand voltage (III/2) | 2.5 kV |
| Nominal voltage (II/2) | 320 V |
| Rated impulse withstand voltage (II/2) | 2.5 kV |
| Rated current | 10 A |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 160 V / 160 V / 320 V |
| Rated impulse withstand voltage | 2.5 kV / 2.5 kV / 2.5 kV |
| Rated current | 10 A / 10 A / 10 A |
Connection data
| Number of connection types | 1 |
|---|---|
| Number of levels | 1 |
Connection data - Connection 1
| Pole number | 8 |
|---|

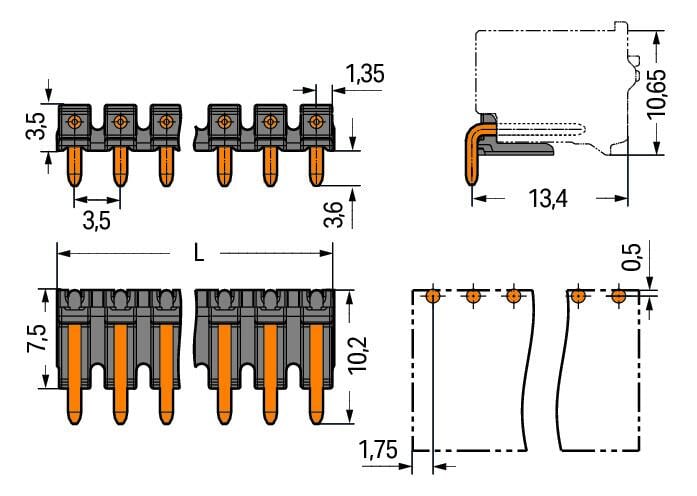

Physical data
| Pin spacing | 3.5 mm / 0.138 inches |
|---|---|
| Width | 29.7 mm / 1.169 inches |
| Height | 7.1 mm / 0.28 inches |
| Height from the surface | 3.5 mm / 0.138 inches |
| Depth | 10.2 mm / 0.402 inches |
| Solder pin length | 3.6 mm |
| Solder pin diameter | 1 mm |
| Drilled hole diameter with tolerance | 1.2 (+0.1) mm |
Mechanical data
| Variable coding | Yes |
|---|---|
| Anti-rotation protection | Yes |
Plug-in connection
| Contact type (pluggable connector) | Male connector/plug |
|---|---|
| Connector (connection type) | for PCB |
| Mismating protection | No |
| Plugging without loss of pin spacing | Yes |
| Mating direction to the PCB | 0 ° |
| Locking of plug-in connection | none |
PCB contact
| PCB contact | THT |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | black |
| Material group | I |
| Insulation material (main housing) | Polyphthalamide (PPA GF) |
| Flammability class per UL94 | V0 |
| Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin |
| Weight | 1.1 g |
Environmental requirements
| Limit temperature range | -60 … +100 °C |
|---|
Commercial data
| PU (SPU) | 400 pcs |
|---|---|
| Packaging type | bag |
| Country of origin | CN |
| GTIN | 4055143935678 |
| Customs tariff number | 85366930000 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| ETIM 9.0 | EC002637 |
| ETIM 10.0 | EC002637 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
