Wago 2091-1603

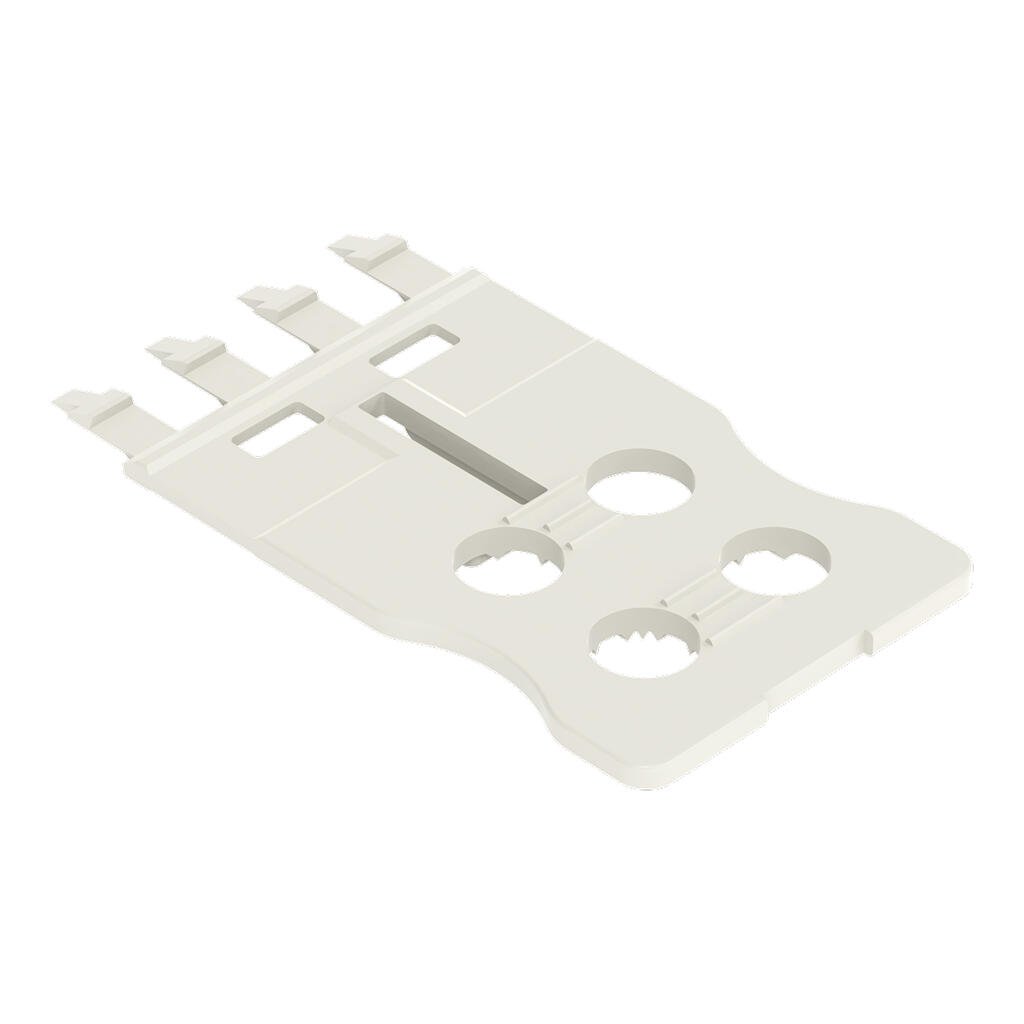

Gripping plate; for female and male connectors; 1 part; Pin spacing 3.5 mm; light gray 2091-1603
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Gripping plate; for female and male connectors; 1 part; Pin spacing 3.5 mm; light gray 2091-1603
Specification
Physical data
| Pin spacing | 3.5 mm / 0.138 inches |
|---|---|
| Width | 27 mm |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | light gray |
| Flammability class per UL94 | V0 |
| Fire load | 0.015 MJ |
| Weight | 0.5 g |
Commercial data
| Product Group | 26 (picoMAX Connectors) |
|---|---|
| PU (SPU) | 100 (25) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821162766 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 39121702 |
|---|---|
| eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
