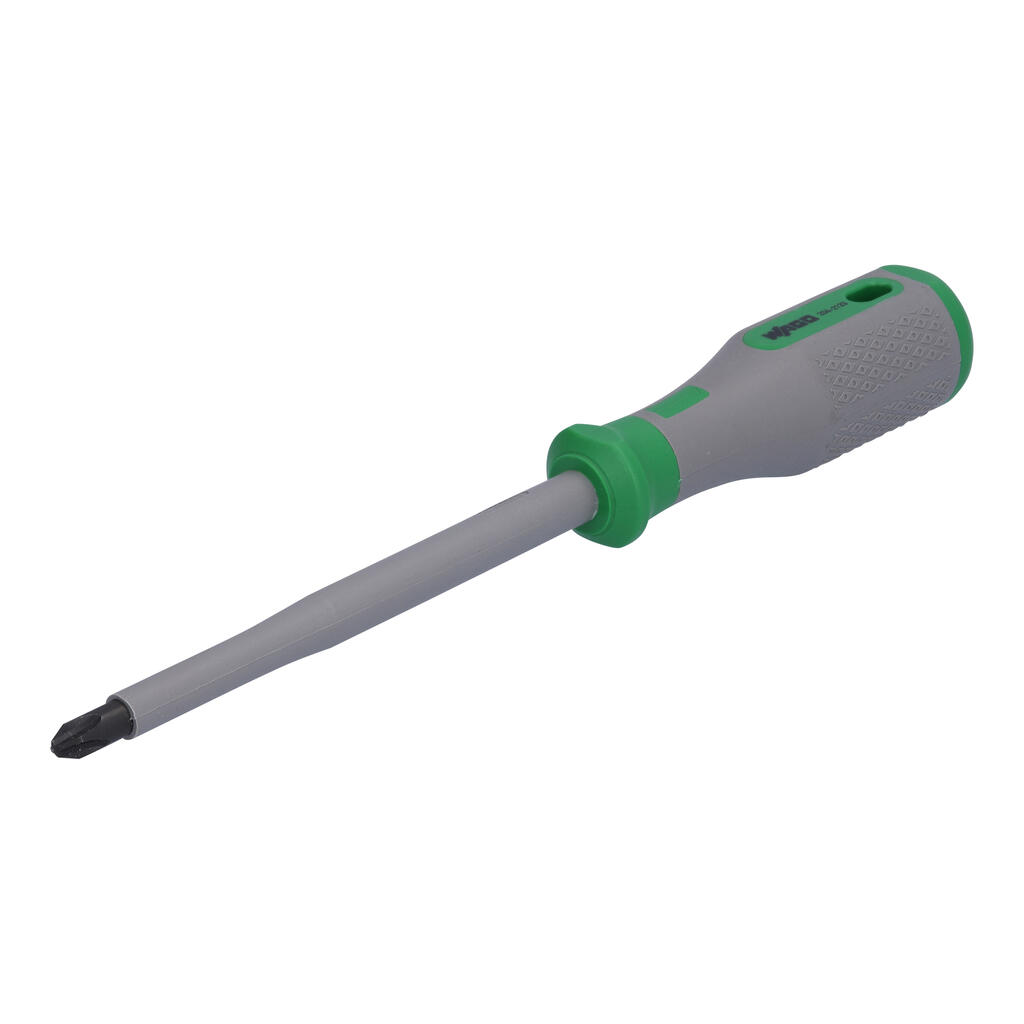

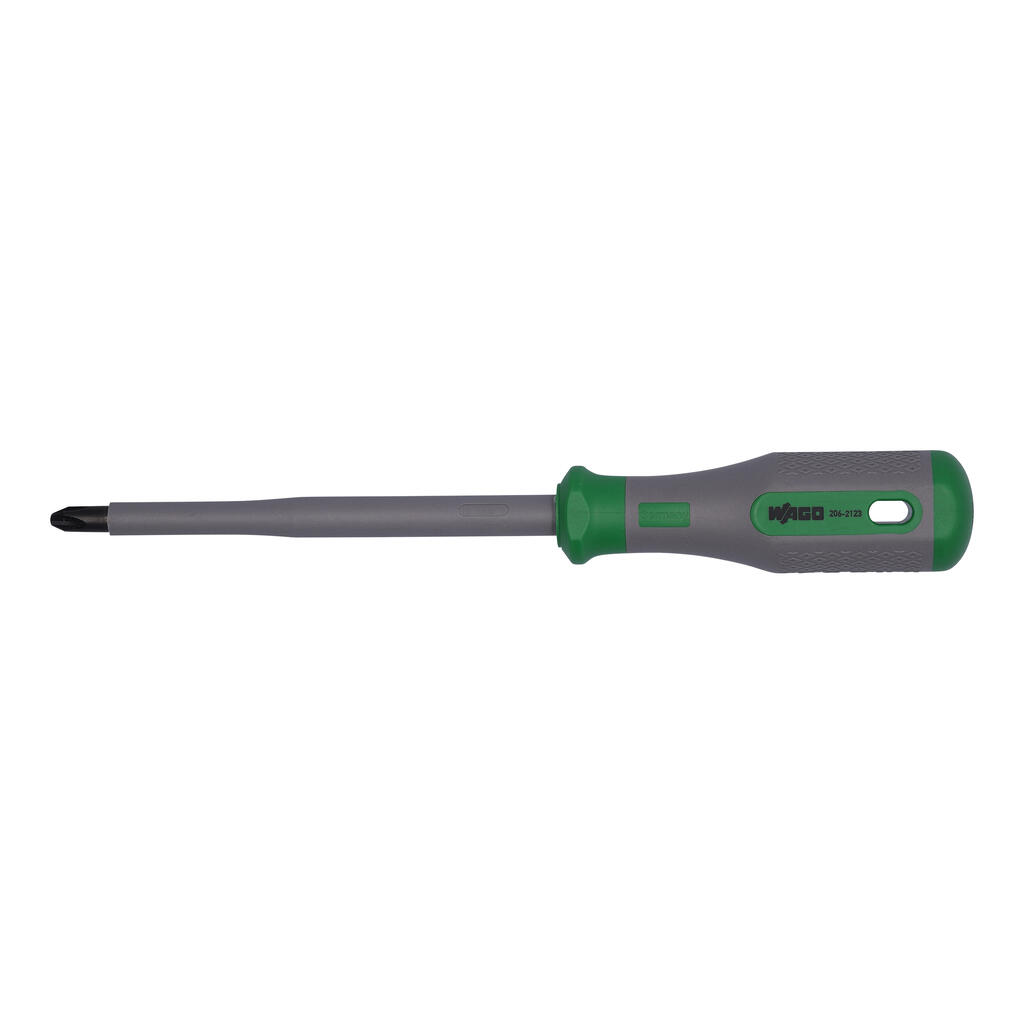

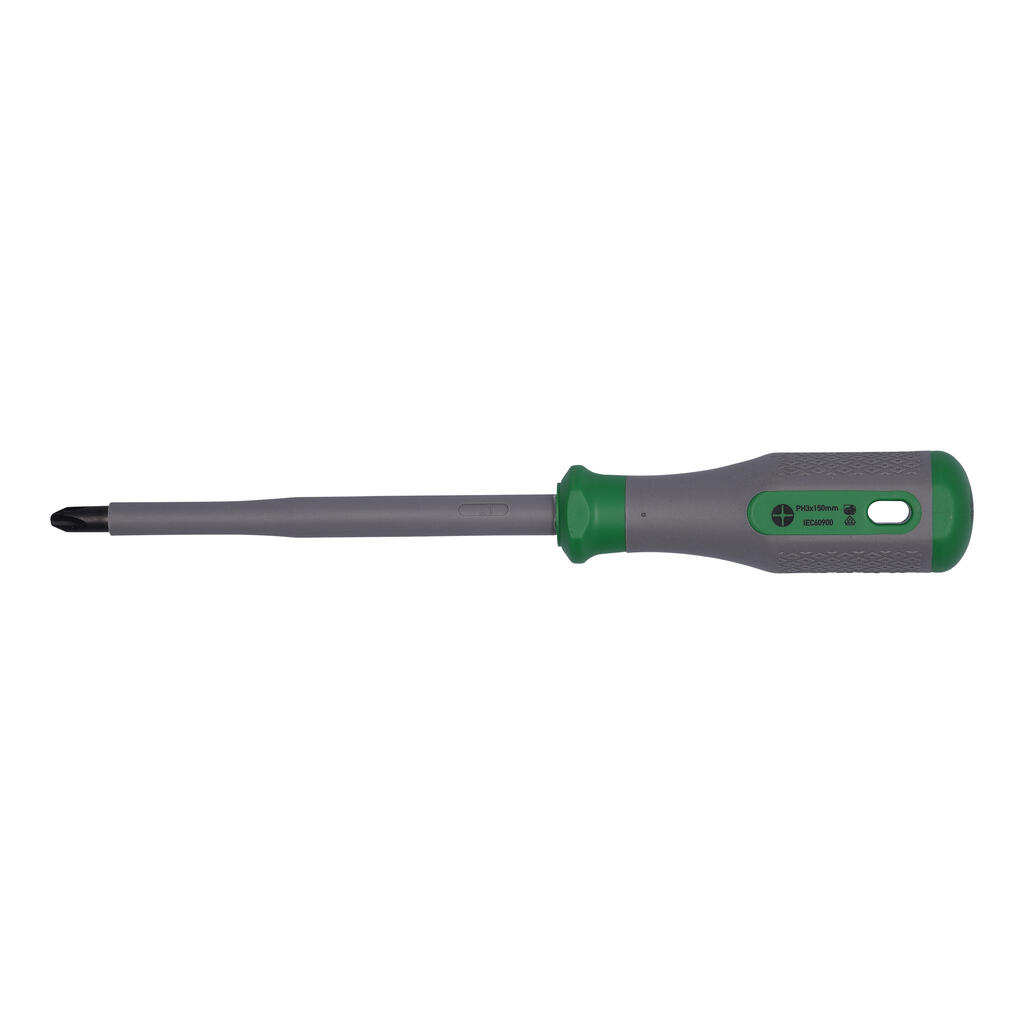

Wago 206-2123
VDE crosshead screwdriver; PH3 x 150; VDE tested; 1000 V; insulated; 2-component grip; size 4 (125 mm); green/gray 206-2123
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
VDE crosshead screwdriver; PH3 x 150; VDE tested; 1000 V; insulated; 2-component grip; size 4 (125 mm); green/gray 206-2123
Specification
Notes
| Safety Information | Always use the appropriate VDE screwdriver variant for your screw head variant to prevent injury from slipping and damage to the VDE screwdriver or screw head.Keep the VDE screwdriver free from oil, grease and moisture to prevent slipping and potential injury.If the tip is damaged, replace the VDE screwdriver to prevent slipping and injury.Do not use the VDE screwdriver if the handle or insulation is damaged to prevent the risk of electric shock.Do not use the VDE screwdriver to open the contact spring on products with operating slots.Do not use the VDE screwdriver as a prying tool or chisel.Wear approved eye protection and the necessary personal protective equipment for your application.Environmental and storage information: Ensure that VDE screwdrivers are not exposed to strong heat sources (e.g., heating pipes or steam lines) or to UV radiation. |
|---|---|
| Safety information 2 | 1. Work on live or load-carrying parts may only be performed by properly trained and qualified personnel.2. Use only for its intended purpose!3. Observe national regulations, standards and guidelines!4. Follow the technical specifications of the products!5. Do not use soiled components.!6. Use only compatible bits and drives! |
Physical data
| Width | 36 mm / 1.417 inches |
|---|---|
| Height | 33 mm / 1.299 inches |
| Depth | 275 mm / 10.827 inches |
| Blade length | 150 mm |
| Grip length | 125 mm |
Mechanical data
| Tip type | PH3 |
|---|---|
| Continuous blade | No |
| Blade type | Straight |
| Roll-away protection | Yes |
| Hanging eyelet | Yes |
| Grip marking | Yes |
| Head marking | Yes |
Material data
| Color | green/gray |
|---|---|
| Material 1 | Polypropylen (PP) |
| Material 2 | Thermoplastische Elastomere (TPE) |
| Blade material | 61CrSiV5 |
| Blade surface | Burnished |
| Weight | 162 g |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | unpacked |
| Country of origin | DE |
| GTIN | 4066966470895 |
| Customs tariff number | 82054000000 |
Product Classification
| UNSPSC | 27111701 |
|---|---|
| ETIM 9.0 | EC000144 |
| ETIM 10.0 | EC000144 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
