Wago 2009-110

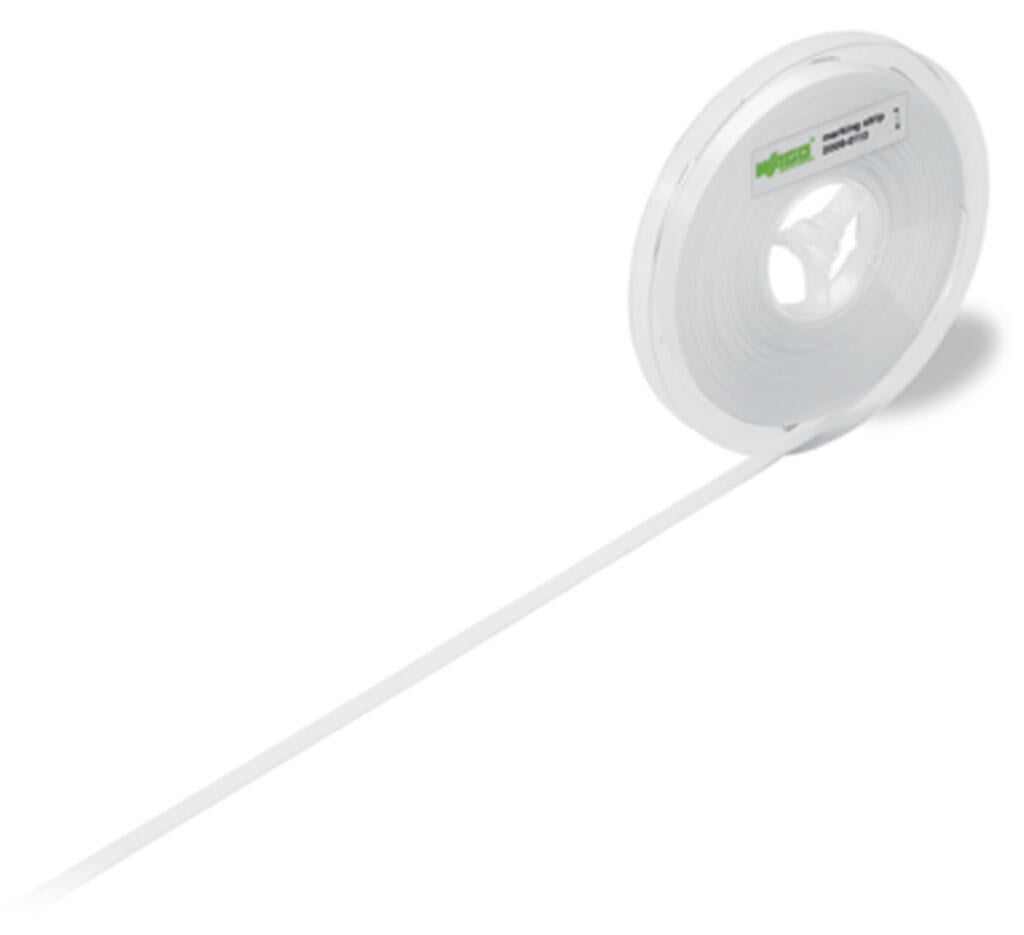

Marking strips; for Smart Printer; on reel; not stretchable; plain; snap-on type; white 2009-110
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Marking strips; for Smart Printer; on reel; not stretchable; plain; snap-on type; white 2009-110
Specification
Technical data
| Suitable | for WAGO Rail-Mount Terminal Blocks TOPJOB® S, X-COM®S-SYSTEM, X-COM®S-SYSTEM-MINI and 285/788/857/2857 Series |
|---|---|
| Marking method | Thermal transfer |
| Marking | plain |
| Delivery form | Strip |
| Delivery form configuration | 50 m; 1 line |
| Printing device | Smart Printer (Thermal Transfer Printer) |
Physical data
| Width | 11 mm |
|---|---|
| Strip width | 11 mm |
Mechanical data
| Mounting type | Snapping on |
|---|---|
| Smear resistance | EN 60998-1:2004 |
Material data
| Color | white |
|---|---|
| UV resistance | EN 60068-2-5:2010 Procedure B |
| Adhesive information | without adhesive |
| Halogen-free | Yes |
| Weight | 296.7 g |
| Fire load | 7.8 MJ |
Environmental requirements
| Ambient temperature (storage) | +10 … +21 °C |
|---|---|
| Ambient temperature (operation) | -40 … +150 °C |
| Relative humidity | 40 … 50 % |
Environmental requirements - Environmental Testing
| Test specification: <br/>Railway applications –<br/>Rolling stock –<br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
|---|---|
| Test procedure: <br/>Railway applications – <br/>Rolling stock equipment – <br/>Vibration and shock tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
| Spectrum/Mounting location | Service life test, Category 1, Class A/B |
| Functional test with noise-like oscillations | Test passed according to Section 8 of the standard |
| Frequency | f1 = 5 Hz to f2 = 150 Hz |
| Acceleration | 0.101g (highest test level used for all axes) |
| Test duration per axis | 10 min. |
| Test directions | X, Y and Z axes |
| Monitoring of contact faults and interruptions | Passed |
| Voltage drop measurement before and after each axis | Passed |
| Simulated service life test through increased levels of noise-like oscillations | Test passed according to Section 9 of the standard |
| Frequency | f1 = 5 Hz to f2 = 150 Hz |
| Acceleration | 0.572g (highest test level used for all axes) |
| Test duration per axis | 5 h |
| Test directions | X, Y and Z axes |
| Extended testing: Monitoring of contact faults and interruptions | Passed |
| Extended testing: Voltage drop measurement before and after each axis | Passed |
| Shock test | Test passed according to Section 10 of the standard |
| Shock pulse form | Half sine |
| Acceleration | 5g (highest test level used for all axes) |
| Shock duration | 30 ms |
| Number of shocks (per axis) | 3 pos. und 3 neg. |
| Test directions | X, Y and Z axes |
| Extended testing: Monitoring of contact faults and interruptions | Passed |
| Extended testing: Voltage drop measurement before and after each axis | Passed |
| Vibration and shock stress for rolling stock equipment | Passed |
Commercial data
| Product Group | 2 (Terminal Block Accessories) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | bag |
| Country of origin | LU |
| GTIN | 4044918102483 |
| Customs tariff number | 39206219888 |
Product Classification
| UNSPSC | 55121704 |
|---|---|
| eCl@ss 10.0 | 27-14-11-37 |
| eCl@ss 9.0 | 27-14-11-37 |
| ETIM 9.0 | EC000761 |
| ETIM 10.0 | EC000761 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
