Wago 2007-8811/041-000

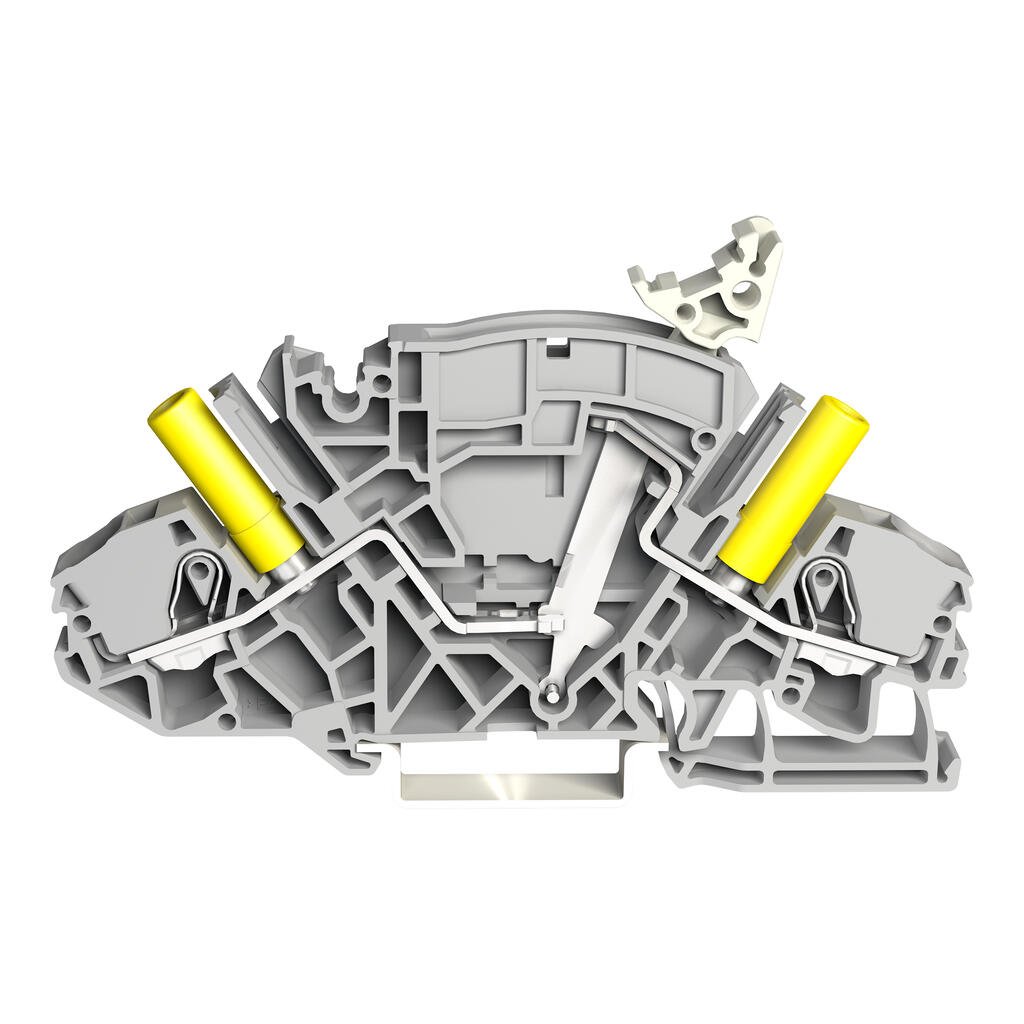

Voltage transformer terminal block, 2007 Series, Push-in CAGE CLAMP®Enjoy effortless electrical installations with this voltage transformer terminal block (item number 2007-8811/041-000). Strip length…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Voltage transformer terminal block, 2007 Series, Push-in CAGE CLAMP®Enjoy effortless electrical installations with this voltage transformer terminal block (item number 2007-8811/041-000). Strip lengths must be between 13 and 15 mm when connecting conductors to this voltage transformer terminal block. This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, featuring a winning design: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor’s ferrule is not necessary. Depending on the type of conductor, this voltage transformer terminal block is designed for conductor cross sections ranging from 0.5 mm² to 10 mm².
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 500 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 30 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 500 V |
| Rated impulse withstand voltage | 6 kV |
| Rated current | 30 A |
Electrical data - Ratings per UL
| Approvals per | UL 1059 |
|---|---|
| Rated voltage UL (Use Group B) | 300 V |
| Rated current UL (Use Group B) | 30 A |
| Rated voltage UL (Use Group C) | 300 V |
| Rated current UL (Use Group C) | 30 A |
| Rated voltage UL (Use Group D) | 300 V |
| Rated current UL (Use Group D) | 10 A |
| Approvals per | UL 1059 / UL 1059 / UL 1059 |
| Use group | B / C / D |
| Rated voltage | 300 V / 300 V / 300 V |
| Rated current | 30 A / 30 A / 10 A |
Electrical data - Ratings per CSA
| Approvals per | CSA 22.2 No 158 |
|---|---|
| Rated voltage CSA (Use Group B) | 300 V |
| Rated current CSA (Use Group B) | 30 A |
| Rated voltage CSA (Use Group C) | 300 V |
| Rated current CSA (Use Group C) | 30 A |
| Rated voltage CSA (Use Group D) | 300 V |
| Rated current CSA (Use Group D) | 10 A |
| Approvals per | CSA 22.2 No 158 / CSA 22.2 No 158 / CSA 22.2 No 158 |
| Use group | B / C / D |
| Rated voltage | 300 V / 300 V / 300 V |
| Rated current | 30 A / 30 A / 10 A |
Electrical data - Power Loss
| Power loss, per pole (potential) | 0.702 W |
|---|---|
| Rated current I<sub>N</sub> for power loss specification | 30 A |
| Resistance value for specified, current-dependent power loss | 0.001 Ω |
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 2 |
| Number of levels | 1 |
| Number of jumper slots | 2 |
Connection data - Connection 1
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Nominal cross-section | 6 mm² / 10 AWG |
| Solid conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Solid conductor; push-in termination | 1 … 10 mm² / 14 … 8 AWG |
| Fine-stranded conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 6 mm² / 20 … 10 AWG |
| Fine-stranded conductor; with uninsulated ferrule | 1.5 … 6 mm² / 16 … 10 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6 mm² / 16 … 10 AWG |
| Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
| Wiring direction | Front-entry wiring |

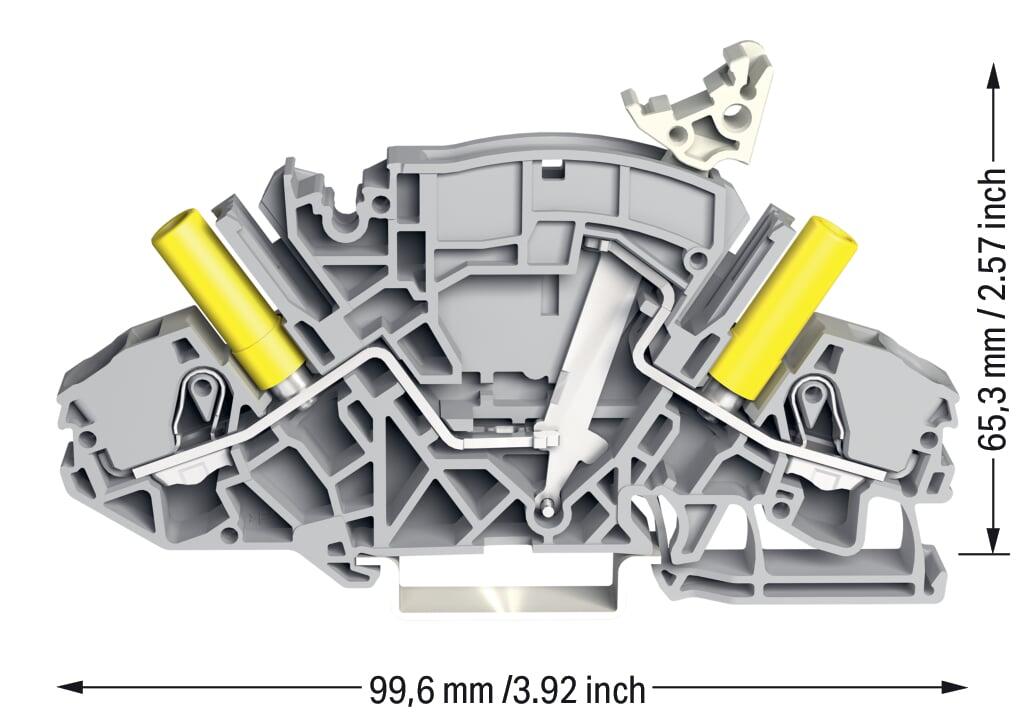

Physical data
| Width | 8 mm / 0.315 inches |
|---|---|
| Height | 99.6 mm / 3.921 inches |
| Depth from upper-edge of DIN-rail | 65.3 mm / 2.571 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Marking level | Center/side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.427 MJ |
| Weight | 28.1 g |
| Test socket color | yellow |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 22 (TOPJOB S) |
|---|---|
| PU (SPU) | 20 pcs |
| Packaging type | Box |
| Country of origin | CN |
| GTIN | 4055143074858 |
| Customs tariff number | 85365080000 |
Product Classification
| UNSPSC | 39121402 |
|---|---|
| ETIM 9.0 | EC000902 |
| ETIM 10.0 | EC000902 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 849875f3-2ce7-4947-ad5a-c6ebdb87da4f |
| SCIP notification number (Belgium) | 25a4dc5d-a514-4a54-9082-01fe786f363d |
| SCIP notification number (Bulgaria) | 16a6b43f-4503-4f20-9bc9-055f5ecb5bfb |
| SCIP notification number (Czech Republic) | ea412e8f-b6fd-4d09-89eb-069d438eeac1 |
| SCIP notification number (Denmark) | 88f4f41e-081b-4231-a65e-8239b11c5c2a |
| SCIP notification number (Finland) | 75e4cc45-c5d4-4591-afa1-ffdae8579e25 |
| SCIP notification number (France) | f5a576a9-5c13-4a82-b460-b6bd6c8b5cd0 |
| SCIP notification number (Germany) | 55183ae8-7b6d-4a09-b10f-254653b55f12 |
| SCIP notification number (Hungary) | 82fd0e93-565e-4051-901e-5b951c09646a |
| SCIP notification number (Italy) | cc72cf82-1f5a-45cd-9056-4880bf8c9e67 |
| SCIP notification number (Netherlands) | da35d3b7-47c7-4af1-bd11-08c3329f0982 |
| SCIP notification number (Poland) | 3a2c14b6-97d1-40e8-9f8e-670f066fdb80 |
| SCIP notification number (Romania) | 1942f9ae-a58d-4c0a-bd5e-27189e6d08c8 |
| SCIP notification number (Sweden) | 3be5ef38-dd80-411c-9a10-a4eef3731e2c |
