Wago 2005-7646

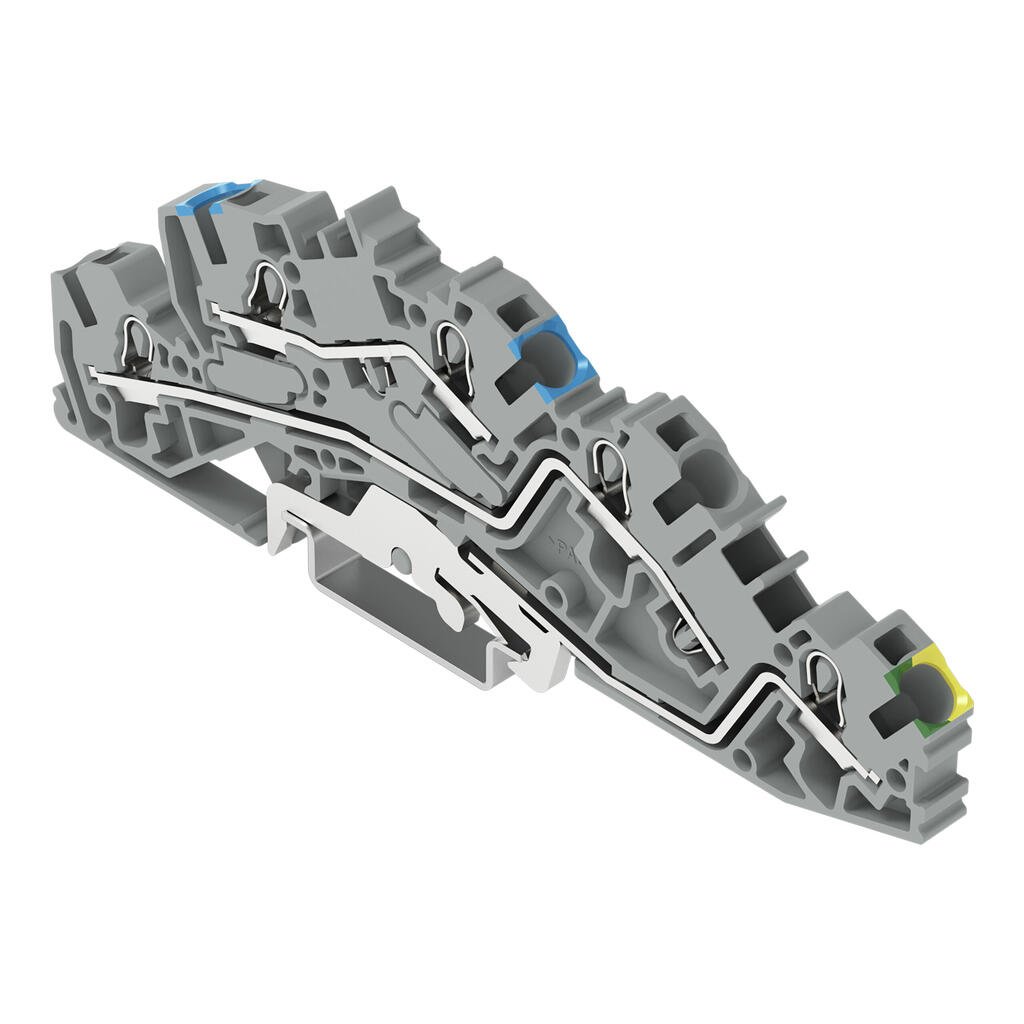

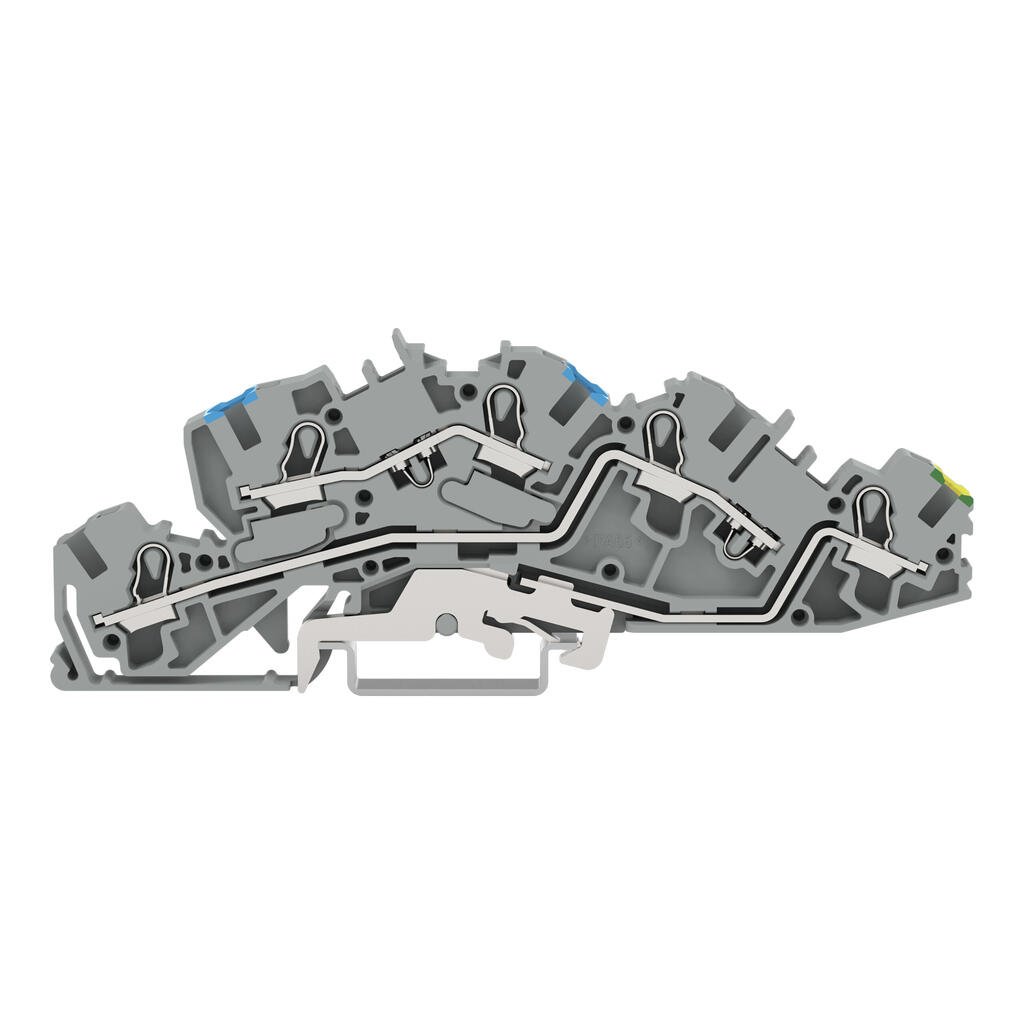

Multilevel installation terminal block, 2005 Series, operating toolThis multilevel installation terminal block (item number 2005-7646) is designed to connect conductors quickly and easily. Conductors…

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Multilevel installation terminal block, 2005 Series, operating toolThis multilevel installation terminal block (item number 2005-7646) is designed to connect conductors quickly and easily. Conductors should only be connected to this multilevel installation terminal block if their strip length is between 11 and 13 mm . This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® technology provides a universal connection solution for any type of conductor. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. This multilevel installation terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 6 mm².

Specification

Electrical data - Ratings per IEC/EN

RatingsPotential – ground
Ratings perIEC/EN 60947-7-1
Nominal voltage (III/3)250 V
Rated impulse withstand voltage (III / 3)4 kV
Rated current32 A
Current at conductor cross-section (max.) mm²36 A
Legend (ratings)(III / 3) ≙ Overvoltage category III / Pollution degree 3
RatingsPotential - ground / Potential - ground / Potential - ground
Ratings perIEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage250 V
Rated impulse withstand voltage4 kV
Rated current32 A
Current at conductor cross-section (max.) mm²36 A

Electrical data - Ratings per IEC/EN 2

RatingsPotential – potential
Ratings perIEC/EN 60947-7-1
Rated voltage (III / 3)400 V
Rated impulse withstand voltage (III/3)6 kV
Rated current32 A
Current at conductor cross-section (max.)36 A
RatingsPotential - potential / Potential - potential / Potential - potential
Ratings perIEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage400 V
Rated impulse withstand voltage6 kV
Rated current32 A
Current at conductor cross-section (max.) mm²36 A

Electrical data - Power Loss

Power loss, per pole (potential)1.024 W
Rated current I<sub>N</sub> for power loss specification32 A
Resistance value for specified, current-dependent power loss0.001 Ω

Electrical data - General information

Wiring directionFront-entry wiring

Connection data

Clamping units5
Total number of potentials3
Number of levels3

Connection data - Connection 1

Connection technologyPush-in CAGE CLAMP®
Actuation typeOperating tool
Connectable conductor materialsCopper
Nominal cross-section4 mm²
Solid conductor0.5 … 6 mm² / 20 … 10 AWG
Solid conductor; push-in termination1.5 … 6 mm² / 14 … 10 AWG
Fine-stranded conductor0.5 … 6 mm² / 20 … 10 AWG
Fine-stranded conductor; with insulated ferrule0.5 … 4 mm² / 20 … 12 AWG
Fine-stranded conductor; with ferrule; push-in termination1.5 … 4 mm² / 18 … 12 AWG
Note (conductor cross-section)Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length11 … 13 mm / 0.43 … 0.51 inches
Wiring directionFront-entry wiring

Physical data

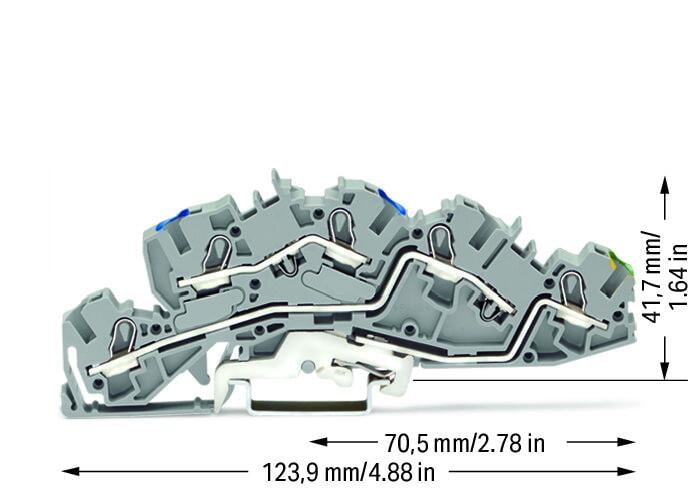

Width6.2 mm / 0.244 inches
Height123.9 mm / 4.878 inches
Depth from upper-edge of DIN-rail41.7 mm / 1.642 inches

Mechanical data

Potential markingN/L/PE
Mounting typeDIN-35 rail
Marking levelCenter/side marking

Material data

Note (material data)Information on material specifications can be found here
Colorgray
Material groupI
Insulation material (main housing)Polyamide (PA66)
Flammability class per UL94V0
Fire load0.369 MJ
Weight30.2 g

Environmental requirements

Processing temperature-35 … +85 °C
Continuous operating temperature-60 … +105 °C

Commercial data

PU (SPU)50 pcs
Packaging typebox
Country of originCN
GTIN4055143042260
Customs tariff number85369010000

Product Classification

UNSPSC39121410
eCl@ss 10.027-14-11-25
eCl@ss 9.027-14-11-25
ETIM 9.0EC001329
ETIM 10.0EC001329
ECCNNO US CLASSIFICATION

Environmental Product Compliance

CAS-No.7439-92-1
REACH Candidate List SubstanceLead
RoHS Compliance StatusCompliant,No Exemption
RoHS Exemption7(a), 7(c)-I, 7(c)-II
SCIP notification number (Austria)4526dedd-3c4f-4b47-a3f4-ab3dd4848f85
SCIP notification number (Belgium)dedba571-a8e6-468c-98bf-2c86a61716ae
SCIP notification number (Bulgaria)9ec64871-11da-4acc-8d5e-379828a6a960
SCIP notification number (Czech Republic)caee7ee6-e8df-4b78-be48-8a9499ffee1b
SCIP notification number (Denmark)3073af1c-a1ff-4d78-968f-93d24d8edb9b
SCIP notification number (Finland)bbc6977c-e9f3-401d-a6ff-a176fba78da5
SCIP notification number (France)43683dc3-50ef-4ad5-a46e-640a4dd7659d
SCIP notification number (Germany)0cb39e7e-d56e-49fa-8c58-9f2c7d016f6e
SCIP notification number (Hungary)1e80ce58-b466-4a55-b125-2222cae994bd
SCIP notification number (Italy)0bf7675a-21c6-420b-968a-51bdbc3fd17b
SCIP notification number (Netherlands)3aa94c69-f466-4437-b73b-d2e27e912a84
SCIP notification number (Poland)245ff72f-e9d2-4d3f-b194-1406dcc482a5
SCIP notification number (Romania)1495ad76-7089-4021-b7be-2ca994d82d0c
SCIP notification number (Sweden)04c4886c-4044-4583-ac95-a1872dd5e538
