Wago 2002-1911/1000-542

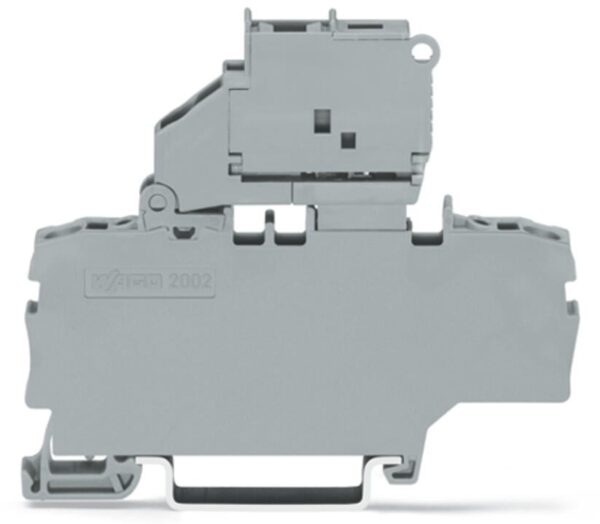

Fuse terminal block, 2002 Series, grayQuick and easy connections are guaranteed with this fuse terminal block (item number 2002-1911/1000-542). Strip lengths must be between 10 and 12 mm  when connect…

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Fuse terminal block, 2002 Series, grayQuick and easy connections are guaranteed with this fuse terminal block (item number 2002-1911/1000-542). Strip lengths must be between 10 and 12 mm  when connecting conductors to this fuse terminal block. Featuring conductor terminals along with Push-in CAGE CLAMP®, this product delivers reliable performance. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without the need for tools—all thanks to its pluggable design. This fuse terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm².This product is designed for specific Ex applications (please refer to the product datasheet).

Specification

Notes

Safety InformationThe 2 mm test slot is only approved for high impedance measurement up to max. 100 mA.

Electrical data - Ratings per IEC/EN

Ratings perIEC/EN 60947-7-3
Nominal voltage (III/3)250 V
Rated impulse withstand voltage (III / 3)6 kV
Rated current6.3 A
Blown fuse indication30 … 65 V
Legend (ratings)(III / 3) ≙ Overvoltage category III / Pollution degree 3
Ratings perIEC/EN 60947-7-3 / IEC/EN 60947-7-3 / IEC/EN 60947-7-3
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage250 V
Rated impulse withstand voltage6 kV
Rated current6.3 A

Electrical data - Ratings per IEC/EN – Notes

Ratings (note)Electrical ratings are given by the fuse and blown fuse indication.
Rated current (note)Leakage current in case of a blown fuse: LED 2.2 mA (at 48 V operating voltage)

Electrical data - Ratings per IEC/EN 2

Ratings perIEC/EN 60947-7-3
Rated voltage (III / 3)65 V
Rated impulse withstand voltage (III/3)1.5 kV
Ratings perIEC/EN 60947-7-3 / IEC/EN 60947-7-3 / IEC/EN 60947-7-3
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage65 V
Rated impulse withstand voltage1.5 kV

Electrical data - Ratings per UL

Approvals perUL 1059
Rated voltage UL (Use Group B)65 V
Rated current UL (Use Group B)6.3 A
Rated voltage UL (Use Group C)65 V
Rated current UL (Use Group C)6.3 A
Rated voltage UL (Use Group D)65 V
Rated current UL (Use Group D)6.3 A
Approvals perUL 1059 / UL 1059 / UL 1059
Use groupB / C / D
Rated voltage65 V / 65 V / 65 V
Rated current6.3 A / 6.3 A / 6.3 A

Electrical data - Ratings per CSA

Approvals perCSA 22.2 No 158
Rated voltage CSA (Use Group B)65 V
Rated current CSA (Use Group B)6.3 A
Rated voltage CSA (Use Group C)65 V
Rated current CSA (Use Group C)6.3 A
Approvals perCSA 22.2 No 158 / CSA 22.2 No 158 / CSA 22.2 No 158
Use groupB / C / D
Rated voltage65 V / 65 V
Rated current6.3 A / 6.3 A

Electrical data - Ex information

Reference to hazardous areasSee “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Ratings perATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)
Rated voltage EN (Ex e II)48 V
Rated current (Ex e II)6.3 A

Electrical data - Power Loss

Power loss (max.) P<sub>l (max.)</sub> (note)When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers.
Maximum power loss P<sub>loss</sub> of fuse insert for overload and short-circuit protection (individual arrangement)1.6 W
Maximum power loss P<sub>loss</sub> of fuse insert for overload and short-circuit protection (block arrangement)1.6 W
Power loss P<sub>l</sub> max. short-circuit protection (individual arrangement)2.5 W
Power loss P<sub>loss</sub> (max.) of fuse cartridge for short-circuit protection (block arrangement)2.5 W

Electrical data - General information

Fuse receptaclepivoting
Fuse typeCylindrical fuse; 5 x 20 mm
Number/type of diode/LEDRed LED
Wiring directionFront-entry wiring

Connection data

Clamping units2
Total number of potentials1
Number of levels1
Number of jumper slots3

Connection data - Connection 1

Connection technologyPush-in CAGE CLAMP®
Actuation typeOperating tool
Connectable conductor materialsCopper
Nominal cross-section2.5 mm²
Solid conductor0.25 … 4 mm² / 22 … 12 AWG
Solid conductor; push-in termination0.75 … 4 mm² / 18 … 12 AWG
Fine-stranded conductor0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor; with insulated ferrule0.25 … 2.5 mm² / 22 … 14 AWG
Fine-stranded conductor; with ferrule; push-in termination1 … 2.5 mm² / 18 … 14 AWG
Note (conductor cross-section)Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length10 … 12 mm / 0.39 … 0.47 inches
Wiring directionFront-entry wiring

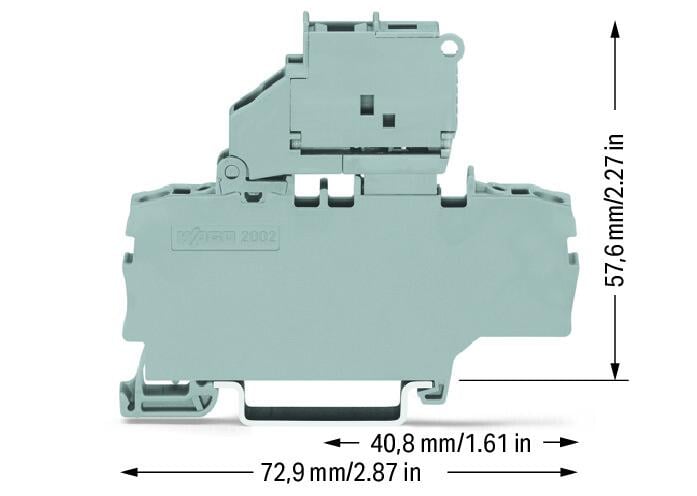

Physical data

Width6.2 mm / 0.244 inches
Height72.9 mm / 2.87 inches
Depth from upper-edge of DIN-rail57.6 mm / 2.268 inches

Mechanical data

Mounting typeDIN-35 rail
Marking levelCenter/side marking

Material data

Note (material data)Information on material specifications can be found here
Colorgray
Material groupI
Insulation material (main housing)Polyamide (PA66)
Flammability class per UL94V0
Fire load0.297 MJ
Weight14.2 g

Environmental requirements

Ambient temperature (operation)-35 … +70 °C
Processing temperature-35 … +70 °C
Continuous operating temperature-35 … +70 °C

Environmental requirements - Environmental Testing

Test specification: <br/>Railway applications –<br/>Rolling stock –<br/>Electronic equipmentDIN EN 50155 (VDE 0115-200):2022-06
Test procedure: <br/>Railway applications – <br/>Rolling stock equipment – <br/>Vibration and shock testsDIN EN 61373 (VDE 0115-0106):2011-04
Spectrum/Mounting locationService life test, Category 1, Class A/B
Functional test with noise-like oscillationsTest passed according to Section 8 of the standard
Frequencyf1 = 5 Hz to f2 = 150 Hz
Acceleration0.101g (highest test level used for all axes)
Test duration per axis10 min.
Test directionsX, Y and Z axes
Monitoring of contact faults and interruptionsPassed
Voltage drop measurement before and after each axisPassed
Simulated service life test through increased levels of noise-like oscillationsTest passed according to Section 9 of the standard
Frequencyf1 = 5 Hz to f2 = 150 Hz
Acceleration0.572g (highest test level used for all axes)
Test duration per axis5 h
Test directionsX, Y and Z axes
Extended testing: Monitoring of contact faults and interruptionsPassed
Extended testing: Voltage drop measurement before and after each axisPassed
Shock testTest passed according to Section 10 of the standard
Shock pulse formHalf sine
Acceleration5g (highest test level used for all axes)
Shock duration30 ms
Number of shocks (per axis)3 pos. und 3 neg.
Test directionsX, Y and Z axes
Extended testing: Monitoring of contact faults and interruptionsPassed
Extended testing: Voltage drop measurement before and after each axisPassed
Vibration and shock stress for rolling stock equipmentPassed

Commercial data

Product Group22 (TOPJOB S)
PU (SPU)50 pcs
Packaging typebox
Country of originDE
GTIN4066966335781
Customs tariff number85369095000

Product Classification

UNSPSC39121410
eCl@ss 10.027-14-11-16
eCl@ss 9.027-14-11-16
ETIM 9.0EC000899
ETIM 10.0EC000899
ECCNNO US CLASSIFICATION

Environmental Product Compliance

CAS-No.1303-86-2, 1317-36-8, 7439-92-1
REACH Candidate List SubstanceDiboron trioxide, Lead, Lead monoxide
RoHS Compliance StatusCompliant,With Exemption
RoHS Exemption7(c)-I
SCIP notification number (Austria)a708b4f7-c436-4b92-a561-f0a882cc0e52
SCIP notification number (Belgium)5820f8c4-db94-4594-890c-3c3b801de920
SCIP notification number (Bulgaria)d5a92b2a-9de8-4e6e-838e-3197d26de070
SCIP notification number (Czech Republic)b29427b6-47c9-4601-8960-9efd4f15be07
SCIP notification number (Denmark)57d7ee9d-c84f-4b8e-a97f-ad8c3b9511bf
SCIP notification number (Finland)f8beb8eb-ae74-458f-85c1-ae26db5f1553
SCIP notification number (France)ff40bbc6-89c8-43a5-9438-39816ed4ed88
SCIP notification number (Germany)01e103dc-0a3d-4a7f-a3af-1ca248c7359f
SCIP notification number (Hungary)8baebca5-7af7-4a66-92c0-c4198ad60190
SCIP notification number (Italy)9e0616de-9338-43c3-bd6c-346fad4e822e
SCIP notification number (Netherlands)1b751620-0be7-41a9-a2a9-b511578c9e60
SCIP notification number (Poland)c617ab07-8b6e-4f5d-84bb-ee5f45dbf143
SCIP notification number (Romania)2a481527-9f2d-4e39-bcbe-67deb5798f79
SCIP notification number (Sweden)eae23774-d232-471c-9154-f4faf1d1fc01
