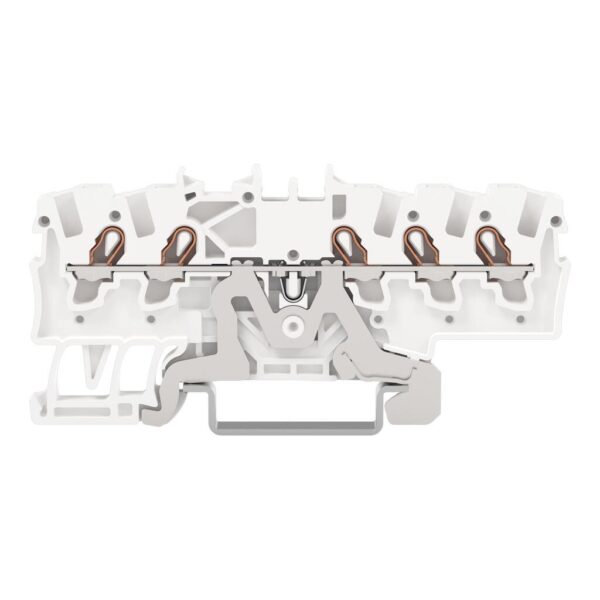

Wago 2001-1508

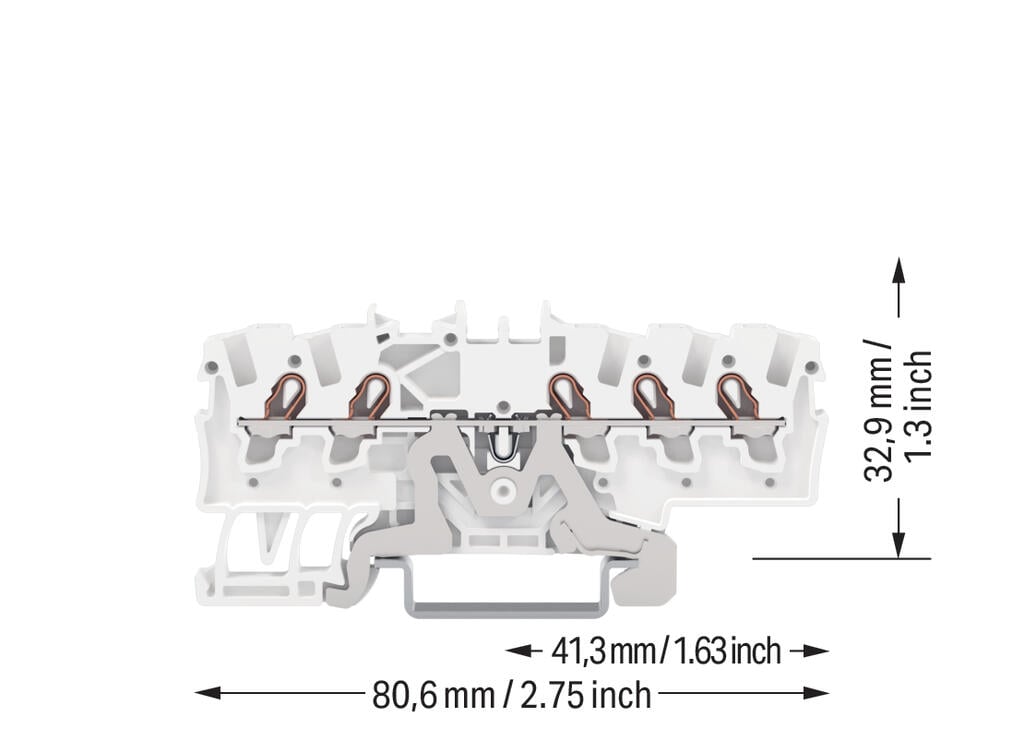

Shield terminal block, 2001 Series, operating toolOur shield terminal block (item number 2001-1508) makes connections quick and easy. Conductors can only be connected to this shield terminal block if their strip length is between 9 and 11 mm . By connecting to the mounting rail via an integrated contact foot, shield terminal blocks provide a reliable electrical and mechanical connection between electrical conductors and the mounting adapter. This allows them to suppress interference signals and ensure high signal quality. This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Dimensions: (4.2 x 80.6 x 39.5) mm (width x height x depth). Depending on the conductor type, this shield terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 2.5 mm².This through rail-mount terminal block is operated with an operating tool. Our TOPJOB® S rail-mount terminal blocks are perfect for many different industrial applications and modern building installations thanks to the secure electrical connections they provide. You can work anywhere in the world and on any application with just a single rail-mount terminal block system. This product is designed for specific Ex applications (please refer to the product datasheet).
