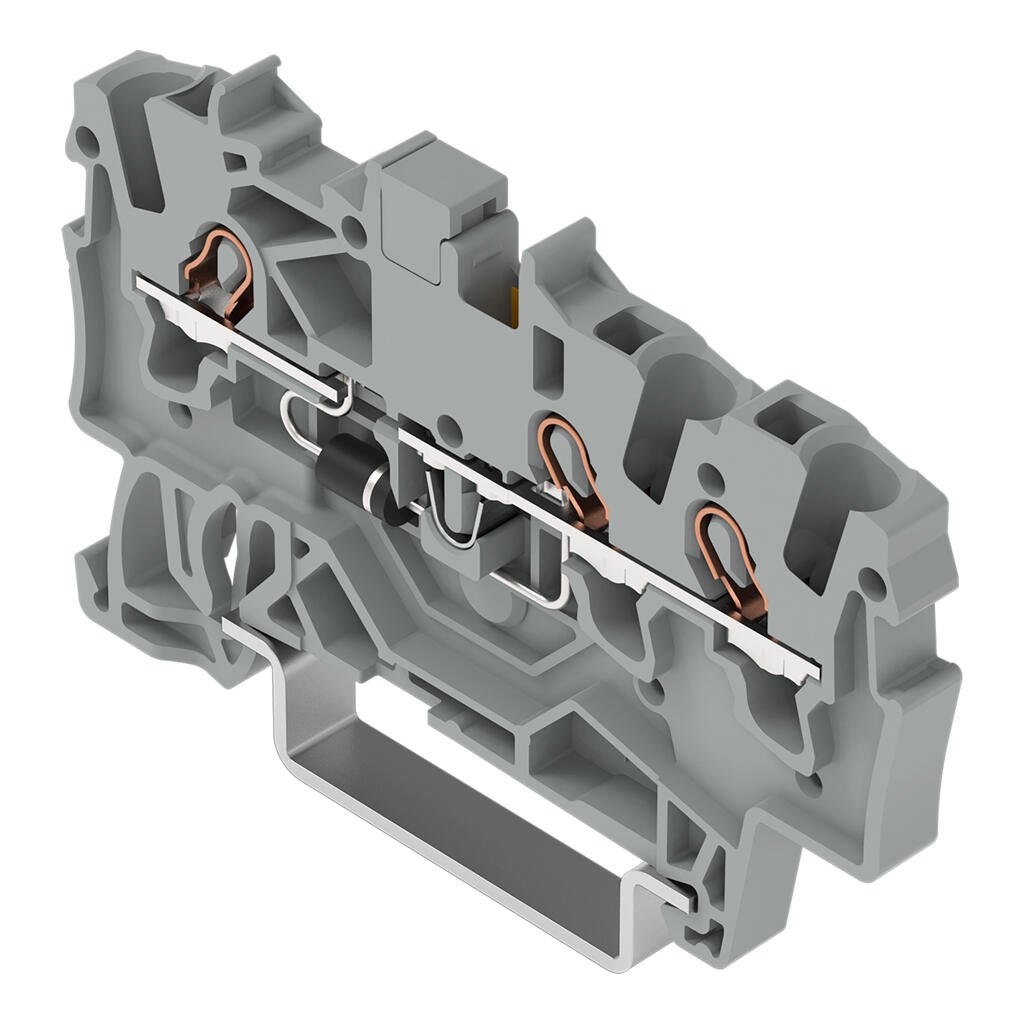

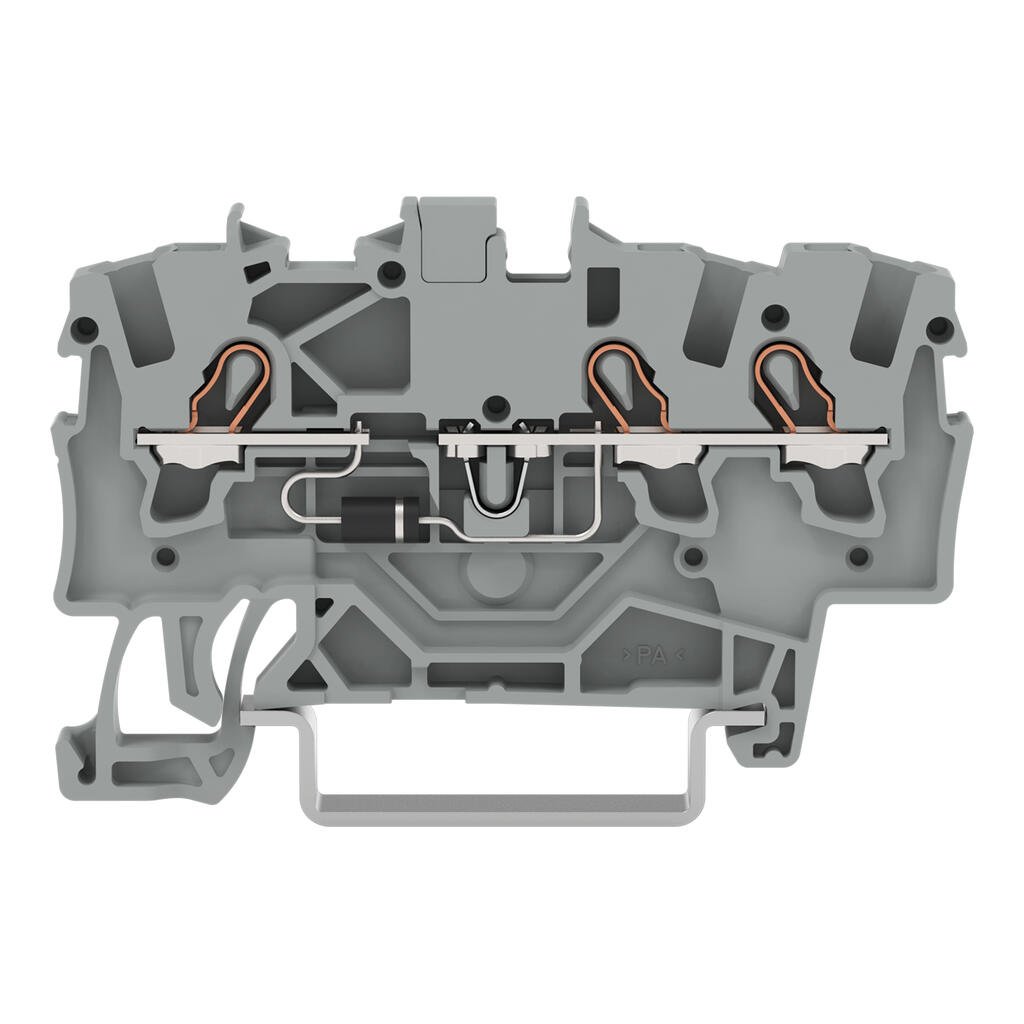

Wago 2001-1311/1000-410
Component terminal block with diode, 2001 Series, operating toolQuick and easy connections are guaranteed with this component terminal block with diode (item number 2001-1311/1000-410). Conductors sho…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Component terminal block with diode, 2001 Series, operating toolQuick and easy connections are guaranteed with this component terminal block with diode (item number 2001-1311/1000-410). Conductors should only be connected to this component terminal block with diode if their strip length is between 9 and 11 mm . Featuring conductor terminals along with Push-in CAGE CLAMP®, this connector delivers reliable performance. Push-in CAGE CLAMP® technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Depending on the type of conductor, this component terminal block with diode is suitable for conductor cross sections ranging from 0.25 mm² to 2.5 mm².
Specification
Electrical data - Ratings per UL
| Approvals per | UL 1059 |
|---|---|
| Rated voltage UL (Use Group B) | 600 V |
| Rated current UL (Use Group B) | 15 A |
| Rated voltage UL (Use Group C) | 600 V |
| Rated current UL (Use Group C) | 15 A |
| Approvals per | UL 1059 / UL 1059 / UL 1059 |
| Use group | B / C / D |
Electrical data - General information
| Nominal voltage | 250 V |
|---|---|
| Reverse voltage | 1,000 V |
| Continuous current (max.) | 500 mA |
| Number/type of diode/LED | with 1N4007 diode |
| Wiring direction | Front-entry wiring |
Connection data
| Clamping units | 3 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
| Number of jumper slots | 1 |
Connection data - Connection 1
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Nominal cross-section | 1.5 mm² |
| Solid conductor | 0.25 … 2.5 mm² / 22 … 14 AWG |
| Solid conductor; push-in termination | 0.75 … 2.5 mm² / 18 … 14 AWG |
| Fine-stranded conductor | 0.25 … 2.5 mm² / 22 … 14 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 0.75 … 1.5 mm² / 18 … 16 AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
| Strip length | 9 … 11 mm / 0.35 … 0.43 inches |
| Wiring direction | Front-entry wiring |
Physical data

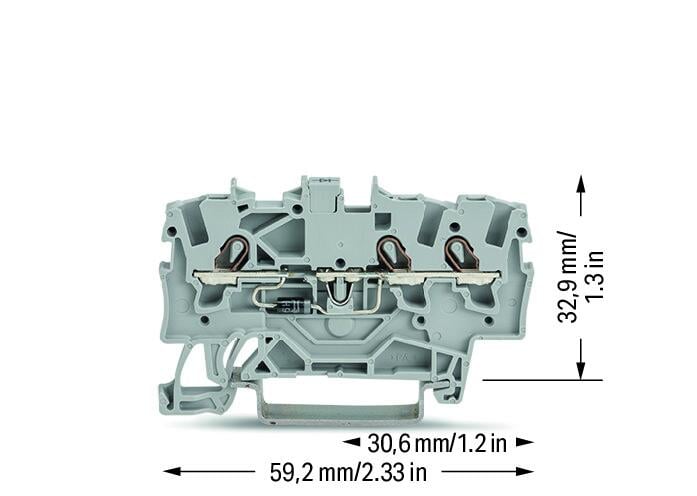

| Width | 4.2 mm / 0.165 inches |
|---|---|
| Height | 59.2 mm / 2.33 inches |
| Depth from upper-edge of DIN-rail | 32.9 mm / 1.295 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Marking level | Center/side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.125 MJ |
| Weight | 4.9 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Environmental requirements - Environmental Testing
| Test specification: <br/>Railway applications –<br/>Rolling stock –<br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
|---|---|
| Test procedure: <br/>Railway applications – <br/>Rolling stock equipment – <br/>Vibration and shock tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
| Spectrum/Mounting location | Service life test, Category 1, Class A/B |
| Functional test with noise-like oscillations | Test passed according to Section 8 of the standard |
| Frequency | f1 = 5 Hz to f2 = 150 Hz |
| Acceleration | 0.101g (highest test level used for all axes) |
| Test duration per axis | 10 min. |
| Test directions | X, Y and Z axes |
| Monitoring of contact faults and interruptions | Passed |
| Voltage drop measurement before and after each axis | Passed |
| Simulated service life test through increased levels of noise-like oscillations | Test passed according to Section 9 of the standard |
| Frequency | f1 = 5 Hz to f2 = 150 Hz |
| Acceleration | 0.572g (highest test level used for all axes) |
| Test duration per axis | 5 h |
| Test directions | X, Y and Z axes |
| Extended testing: Monitoring of contact faults and interruptions | Passed |
| Extended testing: Voltage drop measurement before and after each axis | Passed |
| Shock test | Test passed according to Section 10 of the standard |
| Shock pulse form | Half sine |
| Acceleration | 5g (highest test level used for all axes) |
| Shock duration | 30 ms |
| Number of shocks (per axis) | 3 pos. und 3 neg. |
| Test directions | X, Y and Z axes |
| Extended testing: Monitoring of contact faults and interruptions | Passed |
| Extended testing: Voltage drop measurement before and after each axis | Passed |
| Vibration and shock stress for rolling stock equipment | Passed |
Commercial data
| Product Group | 22 (TOPJOB S) |
|---|---|
| PU (SPU) | 100 pcs |
| Packaging type | box |
| Country of origin | CN |
| GTIN | 4045454537562 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-27 |
| ETIM 9.0 | EC000903 |
| ETIM 10.0 | EC000903 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | df213f70-244b-4bc7-a882-3a8f7f53fb22 |
| SCIP notification number (Belgium) | 7c99a122-ab14-436f-b882-dc548841f014 |
| SCIP notification number (Bulgaria) | 6fca59c7-a3dd-4f83-ae2c-43aeae1829aa |
| SCIP notification number (Czech Republic) | 1ed3e8a7-93dd-42fd-82b9-efec303fcfaa |
| SCIP notification number (Denmark) | 944bad80-6cd2-44f2-a3ba-d2c5dfba9ebb |
| SCIP notification number (Finland) | ebf3fadf-af36-4a4f-a404-469e0965902e |
| SCIP notification number (France) | ce99e58d-1497-4892-b578-b4e3924b0e39 |
| SCIP notification number (Germany) | 8c9179bf-1c82-4435-b354-ca235b545d8f |
| SCIP notification number (Hungary) | eb102369-f855-41f2-86b2-82513010070d |
| SCIP notification number (Italy) | 474d4997-09dd-4dd5-8933-5766d4fe844f |
| SCIP notification number (Netherlands) | 5104c5fa-1065-4d38-a4a5-23197616c837 |
| SCIP notification number (Poland) | 5ea85053-af21-4998-bfc9-11f55146b489 |
| SCIP notification number (Romania) | 13777d39-bef8-443e-8ce2-4886868d9b8e |
| SCIP notification number (Sweden) | 689b3586-7a43-4e94-9002-058c5a71ab36 |
