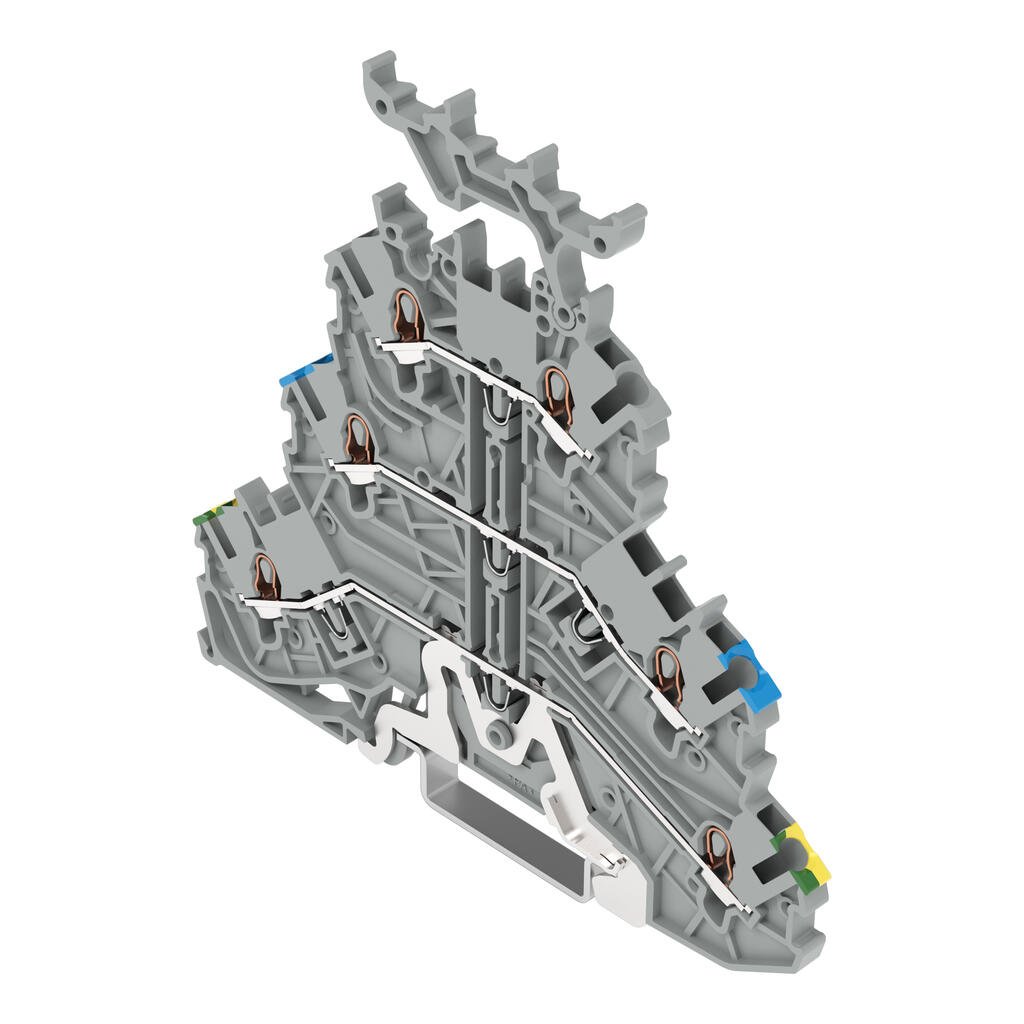

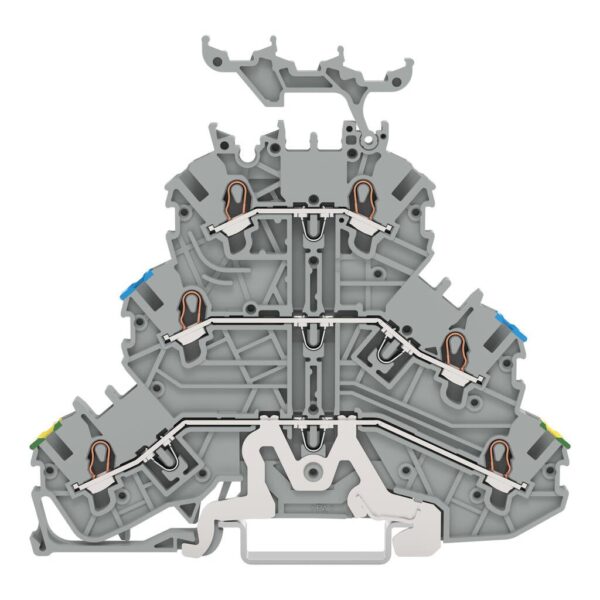

Wago 2000-3247
Triple-deck terminal block, 2000 Series, operating toolOur triple-deck terminal block (item number 2000-3247) simplifies electrical installations. Strip lengths must be between 9 and 11 mm when conne…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Triple-deck terminal block, 2000 Series, operating toolOur triple-deck terminal block (item number 2000-3247) simplifies electrical installations. Strip lengths must be between 9 and 11 mm when connecting conductors to this triple-deck terminal block. The triple-deck terminal block also functions as a through terminal block as well as a ground terminal block. This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. Both solid and fine-stranded conductors with ferrules can be inserted without needing to use any tools—all thanks to its pluggable design. This triple-deck terminal block is suitable for conductor cross sections ranging from 0.14 mm² to 1.5 mm².This product is designed for specific Ex applications (please refer to the product datasheet).
Specification
Electrical data - Ratings per IEC/EN
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
|---|
Electrical data - Ex information
| Reference to hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
|---|
Electrical data - Power Loss
| Power loss, per pole (potential) | 0.96 W |
|---|---|
| Rated current I<sub>N</sub> for power loss specification | 24 A |
| Resistance value for specified, current-dependent power loss | 0.001 Ω |
Connection data
| Total number of potentials | 3 |
|---|---|
| Number of levels | 3 |
| Number of jumper slots | 6 |
Connection data - Connection 1
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Number of connection points | 3 |
| Actuation type | Operating tool |
| Actuation direction 1 | Operation parallel to conductor entry |
| Connectable conductor materials | Copper |
| Nominal cross-section | 1 mm² |
| Solid conductor | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Solid conductor; push-in termination | 0.5 mm² / 20 AWG |
| Stranded conductor | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Fine-stranded conductor | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 0.75 mm² / 20 … 18 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 0.5 mm² / 20 AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
| Strip length | 9 … 11 mm / 0.35 … 0.43 inches |
Connection data - Connection 2
| Number of connection points | 3 |
|---|

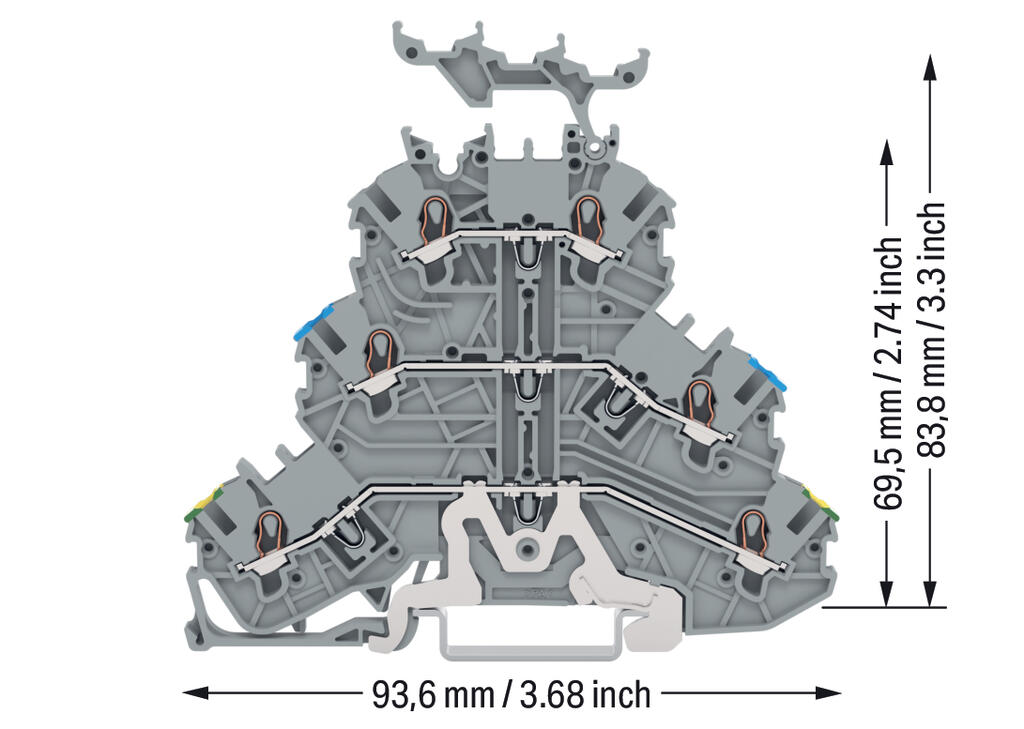

Physical data
| Width | 3.5 mm / 0.138 inches |
|---|---|
| Height | 93.6 mm / 3.685 inches |
| Depth from upper-edge of DIN-rail | 83.8 mm / 3.299 inches |
Mechanical data
| Potential marking | PE/N/L |
|---|---|
| Mounting type | DIN-35 x 15 rail, DIN-35 x 7.5 rail |
| Marking level | Center/side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.263 MJ |
| Weight | 15.5 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| PU (SPU) | 40 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | PL |
| GTIN | 4066966381160 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ETIM 9.0 | EC000897 |
| ETIM 10.0 | EC000897 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
