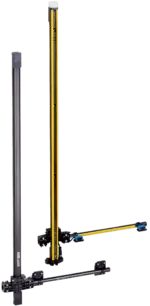

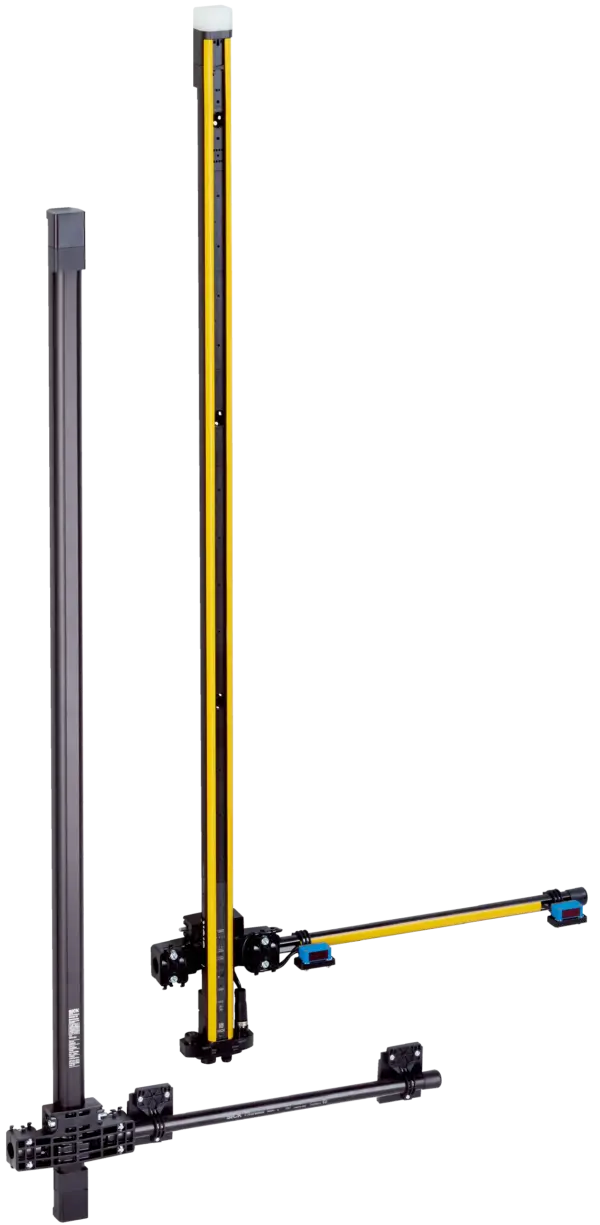

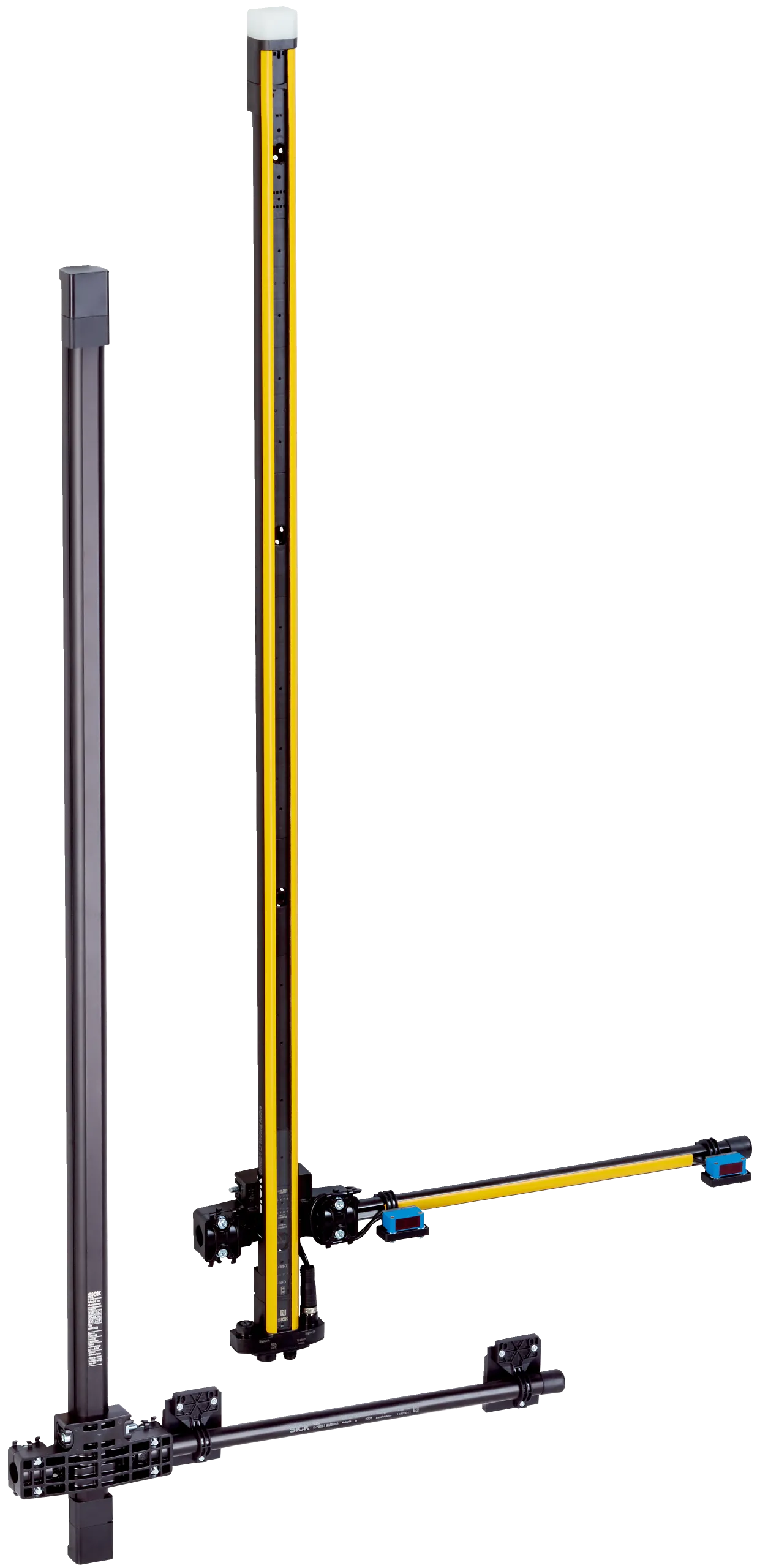

Safety light-beam sensors | deTem | L-muting right | Product version: deTem4 LT Muting A/P | Functional principle: Active/passive | System part: Muting system | Application: Normal industrial environm…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

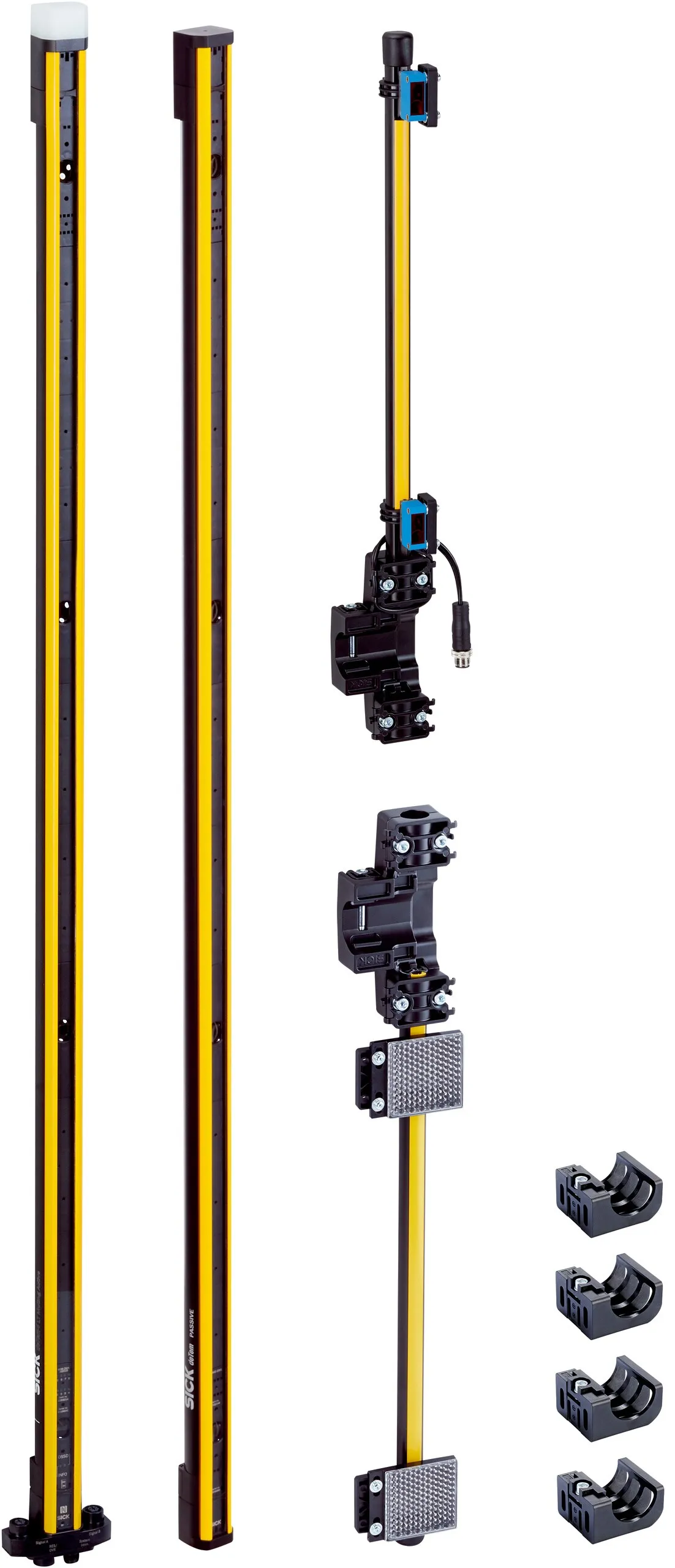

Safety light-beam sensors | deTem | L-muting right | Product version: deTem4 LT Muting A/P | Functional principle: Active/passive | System part: Muting system | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation, beam coding, restart interlock, Differentiation between person and material | Scanning range: 3.2 m | Number of beams: 4 | Beam separation: 300 mm | Connection type: Male connector M12, 8-pin | End cap with integrated LED: yes | Integrated laser alignment aid: no | Enclosure rating: IP65, IP67 | Items supplied: Active unit, Passive unit, Muting arm for active unit with mounted muting sensors with cable, Muting arm for passive unit with mounted reflectors, 4Â FlexFix brackets, safety instruction, Mounting instructions, Operating instructions for download
Specification
Features
| Product version | deTem4 LT Muting A/P |
|---|---|
| Application | Normal industrial environment |
| Functional principle | Active/passive |
| System part | Muting system |
| Scanning range | 3.2Â m |
| Typical | 0.5 m ... 3.2 m |
| Number of beams | 4 |
| Beam separation | 300Â mm |
| Response time | 20Â ms |
| End cap with integrated LED | ✔ |
| Items supplied | Active unitPassive unitMuting arm for active unit with mounted muting sensors with cableMuting arm for passive unit with mounted reflectors4Â FlexFix bracketsSafety instructionMounting instructionsOperating instructions for download |
Safety-related parameters
| Type | Type 4Â (IECÂ 61496-1) |
|---|---|
| Safety integrity level | SIL 3Â (IECÂ 61508) |
| Category | Category 4Â (ISOÂ 13849-1) |
| Performance level | PL e (ISO 13849-1) |
| PFHD (mean probability of a dangerous failure per hour) | 6.8 × 10-9 |
| TM (mission time) | 20Â years (ISOÂ 13849-1) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
Functions
| Beam coding | ✔ |
|---|---|
| Restart interlock | ✔ |
| Differentiation between man and material (muting) | ✔ |
| Type of human-material differentiation | L-muting right |
| C1 muting release | ✔ |
| Concurrence monitoring | ✔ |
| Monitoring of total muting time | ✔ |
| Sensor gap monitoring | ✔ |
| Muting with override | ✔ |
| Exit monitoring | ✔ |
| End of muting by ESPE | ✔ |
Interfaces
| System connection | Male connector M12, 8-pin |
|---|---|
| Connection for muting sensors | 2 × female connector, M12, 5-pin |
| Connection for reset/override pushbutton | Female connector M12, 5-pin |
| Configuration method | Hard wired |
| Display elements | LEDs |
| Alignment aid | Alignment quality via diagnostic LEDs |
| End cap with integrated LED | ✔ |
| Application diagnostic output (ADO) | ✔ |
| Near Field Communication (NFC) | ✔ |
Electronics
| Protection class | III (IECÂ 61140)Â 1) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ DCÂ ... 28.8Â VÂ DC)Â 2) |
| Residual ripple | ≤ 10 % 3) |
| Power consumption typical | 7Â W (DC) |
| Output signal switching devices (OSSDs) | 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 4) |
| ON state, switching voltage HIGH | 24 V DC (VS – 2.25 V DC ... VS) |
| OFF state, switching voltage LOW | ≤ 2 V DC |
| Current-carrying capacity per OSSD | ≤ 500 mA |
| Application diagnostic output (ADO) | PNP semiconductor, short-circuit protected 4) |
| Output voltage HIGH (active) | ≥ Vs – 3 V |
| Output voltage LOW (deactivated) | High resistance |
| Current loading | ≤ 100 mA |
Mechanics
| Dimensions | See dimensional drawing |
|---|
Ambient data
| Enclosure rating | IP65 (IECÂ 60529)IP67 (IECÂ 60529) |
|---|---|
| Ambient operating temperature | –30 °C ... +55 °C |
| Storage temperature | –30 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 … 150 Hz, 3,5 mm / 1 g (EN 60068-2-6) |
| Shock resistance | 15Â g / 6Â ms (ENÂ 60068-2-27) |
| Class | 3M4 (IECÂ TR 60721-4-3) |
Other information
| Type of light | Near-infrared (NIR), invisible |
|---|
Classifications
| ECLASS 5.0 | 27272703 |
|---|---|
| ECLASS 5.1.4 | 27272703 |
| ECLASS 6.0 | 27272703 |
| ECLASS 6.2 | 27272703 |
| ECLASS 7.0 | 27272703 |
| ECLASS 8.0 | 27272703 |
| ECLASS 8.1 | 27272703 |
| ECLASS 9.0 | 27272703 |
| ECLASS 10.0 | 27272703 |
| ECLASS 11.0 | 27272703 |
| ECLASS 12.0 | 27272703 |
| ETIM 5.0 | EC001832 |
| ETIM 6.0 | EC001832 |
| ETIM 7.0 | EC001832 |
| ETIM 8.0 | EC001832 |
| UNSPSC 16.0901 | 46171620 |
Reviews
Clear filtersThere are no reviews yet.
