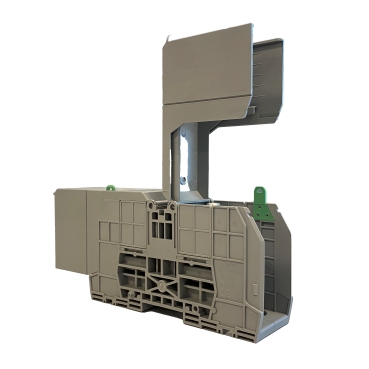

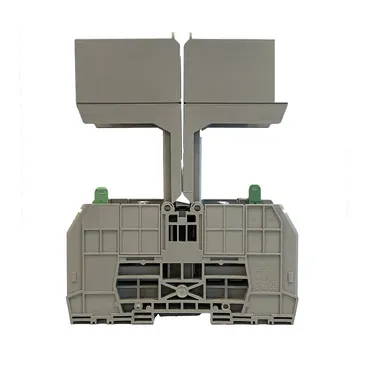

Schneider Electric NSYTRV1502B
Screw terminal, Linergy TR terminals blocks, feed through, 2 points, lug-connector, 150mm², grey
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From âĴ20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From âĴ40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | Linergy |
|---|---|
| Product name | Linergy TR |
| Product or component type | Terminal block |
| Device short name | TRV |
| Accessory / separate part category | Connection accessory |
| Terminal block type | Passthrough |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 150 mm² |
| Length | 235 mm |
| Colour | Grey |
| Quantity per set | Set of 5 |
| Width | 41 mm |
| Height | 84.5 mm |
| Connections - terminals | 1 x lug: upstream (M10), 1 x screw terminal: downstream (M10) |
| Number of connections | 2 |
| Connection position | Sideways |
| Number of measurement input | |
| Cable cross section | 6âĤ150 mm², solid, 6âĤ150 mm², flexible without cable end |
| Tightening torque | 10âĤ20 N.m upstream, 10âĤ20 N.m downstream |
| Wire stripping length | 29 mm |
| Tool type | Connection: screwdriver, Disconnection: screwdriver |
| [Ue] rated operational voltage | 1100 V IECEx conforming to EN/IEC 60947-7-1, 600 V UL recognized, 600 V CSA |
| [In] rated current | 309 A IECEx conforming to EN/IEC 60947-7-1, 310 A UL recognized, 310 A CSA |
| Material | Polyamide 6/6: insulating case, Copper alloy: connector and screw, Copper alloy: commoning link, Chromium-nickel steel: spring |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MâĤ.m conforming to IEC 60093, 10000 MâĤ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GâĤ conforming to IEC 60093, 1000 GâĤ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Range compatibility | PrismaSeT G, PrismaSeT P, PrismaSet HD, PanelSeT |
| Product compatibility | Spacial enclosures |
| Product certifications | GL, CSA, UL |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -60âĤ105 °C conforming to IEC 60947-1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 8.200 cm |
| Package 1 Length | 23.500 cm |
| Package 1 Weight | 276.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 9.300 cm |
| Package 2 Width | 24.000 cm |
| Package 2 Length | 26.000 cm |
| Package 2 Weight | 1.622 kg |
| Unit Type of Package 3 | S06 |
| Number of Units in Package 3 | 180 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 69.392 kg |
