Schneider Electric NSYTBS342912

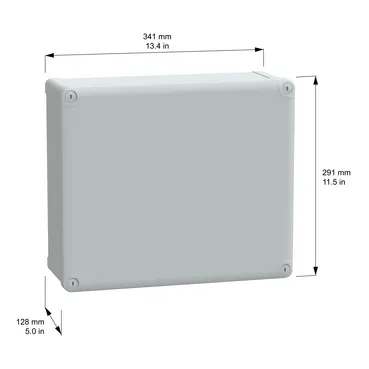

This TBS is a wall-mounted box made of ABS that is suitable for multi-purpose applications The box has a height, width, and depth of 341 mm, 291 mm, and 128 mm, respectively The internal dimensions of…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This TBS is a wall-mounted box made of ABS that is suitable for multi-purpose applications The box has a height, width, and depth of 341 mm, 291 mm, and 128 mm, respectively The internal dimensions of the box are 325 mm x 275 mm x 120 mm The box is made of ABS (acrylonitrile butadiene-styrene), which offers resistance to impact and high temperatures The box comes in a grey (RAL 7035) color It has a low plain cover that is fixed with captive flat screws The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions
Specification
| Range | PanelSeT |
|---|---|
| Device application | Multi-purpose |
| Category | Industrial box |
| Height | 341 mm |
| Width | 291 mm |
| Depth | 128 mm |
| Internal height | 325 mm |
| Internal width | 275 mm |
| Internal depth | 120 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 cover, 4 cover screw |
| Body type | One piece moulded |
| Type of front cover | Low plain cover |
| Cover fixing | Plastic screws |
| Lock type | Captive screw flat outside sealed area |
| Removable parts | Cover by captive screws |
| Material | ABS with 45% of post-industrial recycled content |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | TÃœV |
| Electrical insulation class | Class II |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Glow wire resistance | 650 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for storage | -15…40 °C |
| Operating temperature | -25…60 °C |
| Net weight | 1.16 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.000 cm |
| Package 1 Width | 30.000 cm |
| Package 1 Length | 36.000 cm |
| Package 1 Weight | 1.365 kg |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 40.000 cm |
| Package 2 Width | 40.500 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 6.370 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 135.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 87.000 kg |
| Warranty | 18 months |
