Schneider Electric NSYTBS1179H

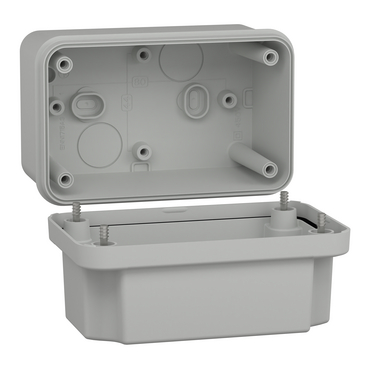

This TBS is a multi-purpose wall-mounted box made of ABS (acrylonitrile butadiene-styrene) It has a height, width, and depth of 116 mm, 116 mm, and 94 mm, respectively The internal dimensions of the b…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

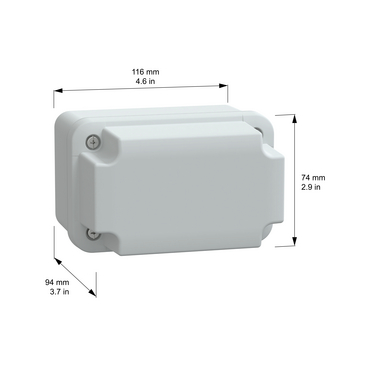

This TBS is a multi-purpose wall-mounted box made of ABS (acrylonitrile butadiene-styrene) It has a height, width, and depth of 116 mm, 116 mm, and 94 mm, respectively The internal dimensions of the box are 105 mm x 65 mm x 85 mm It comes in a grey (RAL 7035) color and has a high plain cover that is fixed with captive flat screws The box is certified by TÜV and has a class II electrical insulation that prevents electric shocks It is also fire resistant up to 650°C in accordance with IEC 60695-2-11 standard and offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and impact resistance with an IK07 rating (IEC 62262) The box can be stored in ambient air temperatures ranging from -15 to 40°C and used in ambient air temperature ranging from -25 to 60 °C without affecting its performance
Specification
| Range | PanelSeT |
|---|---|
| Device application | Multi-purpose |
| Category | Industrial box |
| Height | 116 mm |
| Width | 116 mm |
| Depth | 94 mm |
| Internal height | 105 mm |
| Internal width | 65 mm |
| Internal depth | 85 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 cover, 4 cover screw |
| Quantity per set | Set of 3 |
| Body type | One piece moulded |
| Type of front cover | High plain cover |
| Cover fixing | Plastic screws |
| Lock type | Captive screw flat outside sealed area |
| Removable parts | Cover by captive screws |
| Material | ABS with 45% of post-industrial recycled content |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | TÃœV |
| Electrical insulation class | Class II |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Glow wire resistance | 650 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for storage | -15…40 °C |
| Operating temperature | -25…60 °C |
| Net weight | 0.146 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.400 cm |
| Package 1 Width | 7.400 cm |
| Package 1 Length | 11.700 cm |
| Package 1 Weight | 146.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 63 |
| Package 2 Height | 40.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 9.920 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 756 |
| Package 3 Height | 135.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 133.000 kg |
| Warranty | 18 months |
