Schneider Electric NSYTBP1176

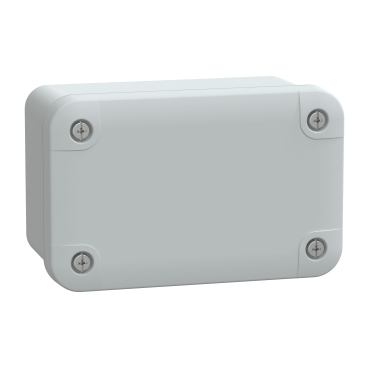

This TBP is a wall-mounted box made of polycarbonate It is designed for multi-purpose applications and can be used indoor or outdoor The box has a grey (RAL 7035) body and a low plain cover The enclos…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

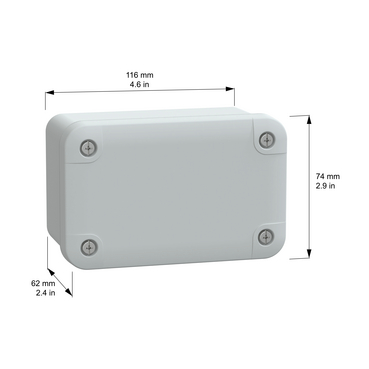

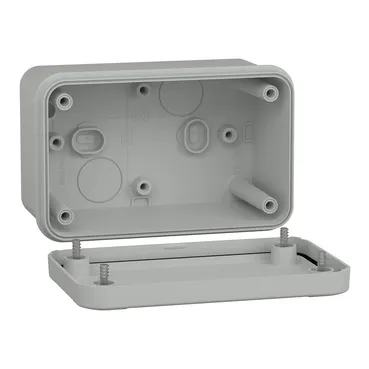

This TBP is a wall-mounted box made of polycarbonate It is designed for multi-purpose applications and can be used indoor or outdoor The box has a grey (RAL 7035) body and a low plain cover The enclosure has a nominal height, width, and depth of 116 mm, 74 mm, and 62 mm, respectively The internal dimensions of the box are 105 mm x 65 mm x 55 mm The cover is closed by four captive flat screws located outside the sealed area of the box to maintain IP The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT TBP |
| Device application | Multi-purpose |
| Category | Industrial box |
| Height | 116 mm |
| Width | 74 mm |
| Depth | 62 mm |
| Internal height | 105 mm |
| Internal width | 65 mm |
| Internal depth | 55 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 cover, 4 cover screw |
| Quantity per set | Set of 5 |
| Body type | One piece moulded |
| Type of front cover | Low plain cover |
| Cover fixing | Metal screws |
| Lock type | Captive screw flat outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Polycarbonate |
| Colour | Grey (RAL 7035) |
| Standards | UL 508 A, IEC 62208 |
| Product certifications | TÃœV, UL |
| Electrical insulation class | Class II |
| Mounting location | Outdoor (with canopy or shelter and anticondensation valve) |
| Net weight | 0.124 kg |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Fire resistance | 960 °C |
| Ambient air temperature for storage | -15…60 °C |
| Operating temperature | -25…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.680 cm |
| Package 1 Width | 2.580 cm |
| Package 1 Length | 1.700 cm |
| Package 1 Weight | 124.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 8.000 cm |
| Package 2 Width | 12.400 cm |
| Package 2 Length | 33.400 cm |
| Package 2 Weight | 620.000 g |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 105 |
| Package 3 Height | 40.000 cm |
| Package 3 Width | 40.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 14.260 kg |
| Warranty | 18 months |
