Schneider Electric NSYSM16840
Spacial SM is a steel compact floor-standing enclosure designed for multi-purpose applications It is certified by DNV, UL and BV and is designed to withstand tough environments, with its IK10 (IEC6226…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

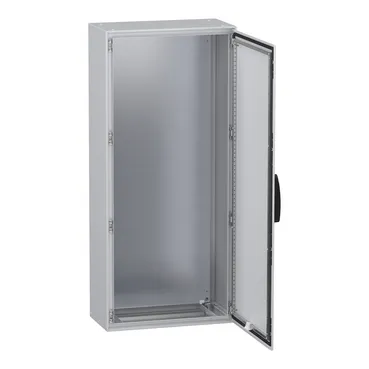

Spacial SM is a steel compact floor-standing enclosure designed for multi-purpose applications It is certified by DNV, UL and BV and is designed to withstand tough environments, with its IK10 (IEC62262) resistance to high impact and its IP55 rating (IEC60529) for dust and water resistance It has a nominal height, width and depth of 1600mm, 800mm and 400mm respectively The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) The enclosure consists of a body, a cable gland plate, four mounting plate brackets, a reversible door with a four-point lock and a handle with 5mm double-bar insert The door and the mounting plate brackets can be removed for maintenance purposes The net weight of the enclosure is 76,5kg
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |

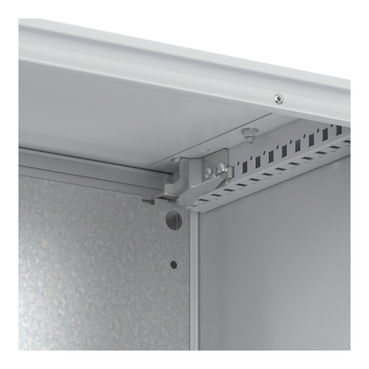

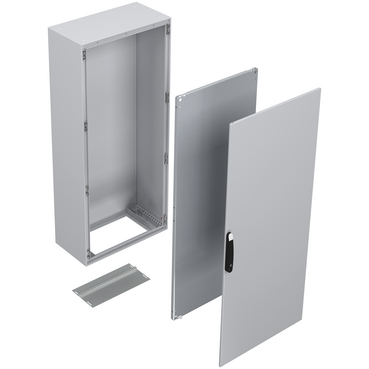

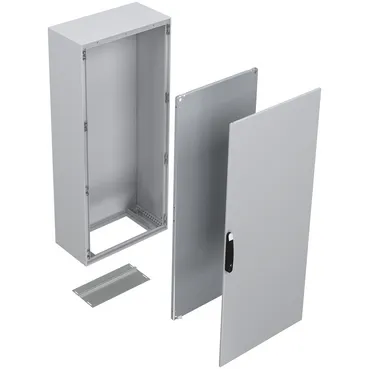

| Device composition | 1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 door |

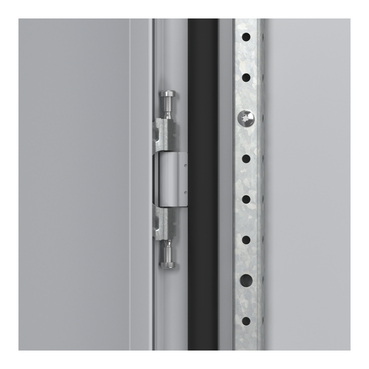

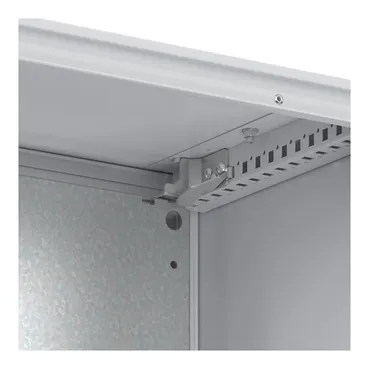

| Removable parts | Door by screws hinge, Mounting plate bracket by screws |

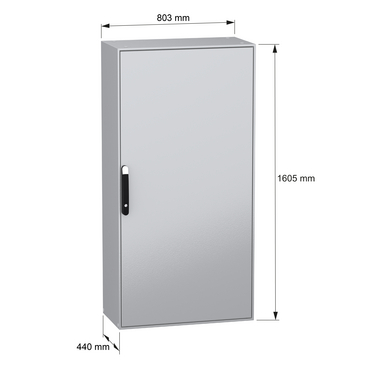

| Enclosure nominal height | 1600 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 400 mm |
| Number of doors | Front: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Door type | Plain |

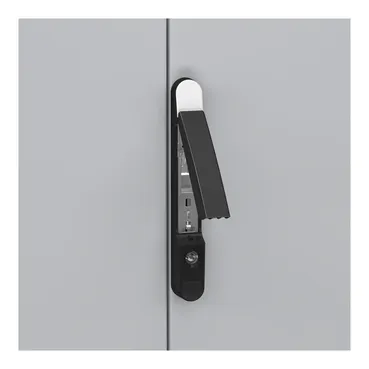

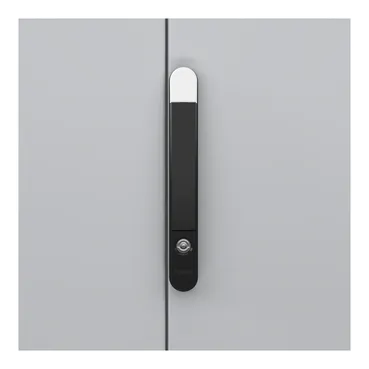

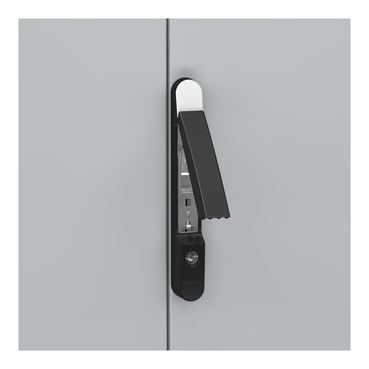

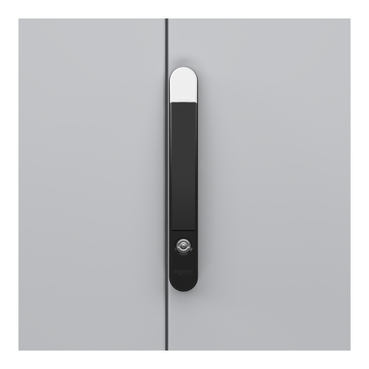

| Lock type | 4 points lock, handle with 5 mm double bar insert |

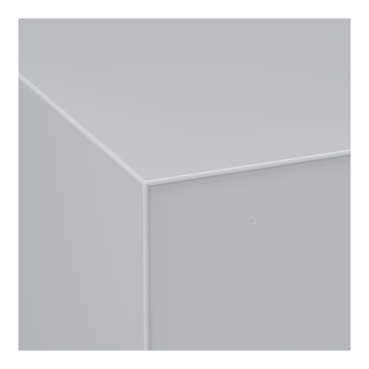

| Body type | Front part forming a rigid frame with welded corners, Single piece body with welded rear panel |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Cable entry | 1 entry |

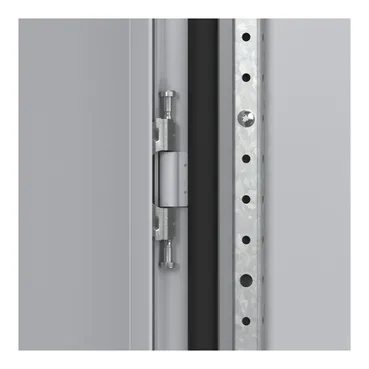

| Material | Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 76.5 kg |
| Standards | IEC 62208 |
| Product certifications | DNV, UL, BV |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 173.000 cm |
| Package 1 Width | 85.000 cm |
| Package 1 Length | 49.000 cm |
| Package 1 Weight | 77.500 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 173.000 cm |
| Package 2 Width | 85.000 cm |
| Package 2 Length | 98.000 cm |
| Package 2 Weight | 155.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
