Schneider Electric NSYSFND208T
Glazed door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H2000 W800mm
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |

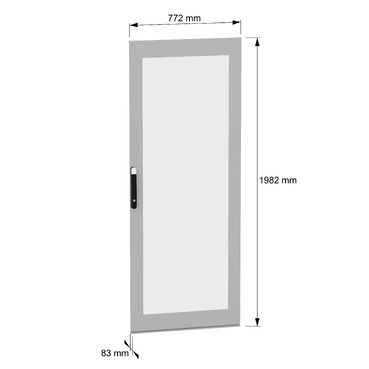

| For enclosure nominal dimensions | – H: 2000 mm W: 800 mm |
| Mounting location | Front, Side |
| Range compatibility | PanelSeT SFN |

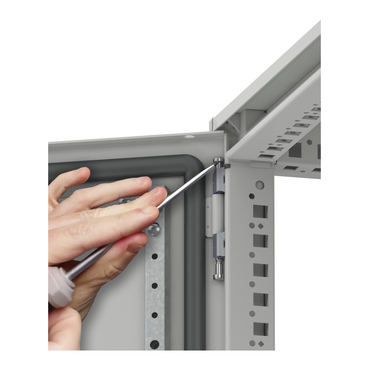

| Device composition | 1 door, 1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points, 4 hinges, 4 locking bar catches |
| Quantity per set | Set of 1 |
| Material | Door: Securit glass, Door: sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |

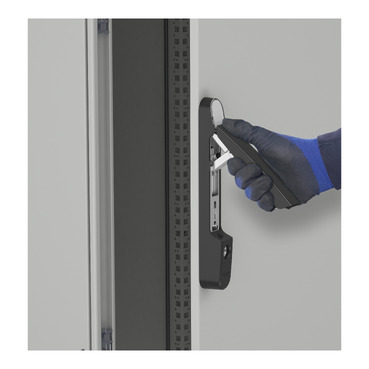

| Lock type | Lock 5 mm double bar |
| Number of locks | 1 |
| Door type | Glazed |
| Door opening side | Reversible (120 °) |
| Height | Nominal: 2000 mm |
| Width | Nominal: 769 mm |
| Net weight | 32.4 kg |
| IK degree of protection | IK08 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 78.000 cm |
| Package 1 Length | 200.000 cm |
| Package 1 Weight | 23.500 kg |
| Unit Type of Package 2 | P2M |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 68.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 200.000 cm |
| Package 2 Weight | 263.000 kg |
| Warranty | 18 months |
