Schneider Electric NSYSFND205
Plain door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H2000 W500mm
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | – H: 2000 mm W: 500 mm |
| Mounting location | Side |
| Range compatibility | PanelSeT SFN |
| Device composition | 1 door, 1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points, 1 reinforcement frame, 4 hinges, 4 locking bar catches |
| Quantity per set | Set of 1 |
| Material | Sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |

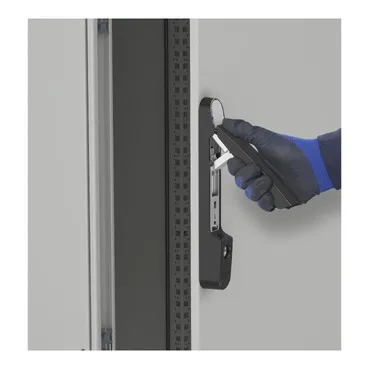

| Lock type | Lock 5 mm double bar |
| Number of locks | 1 |
| Door type | External plain |
| Door opening side | Reversible (120 °) |

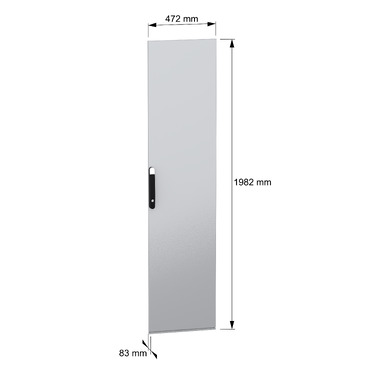

| Height | Nominal: 1966 mm |
| Width | Nominal: 469 mm |
| Net weight | 15.3 kg |
| IK degree of protection | IK10 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 49.000 cm |
| Package 1 Length | 201.000 cm |
| Package 1 Weight | 21.000 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 58.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 201.000 cm |
| Package 2 Weight | 369.000 kg |
| Warranty | 18 months |
