Schneider Electric NSYSBX303012
The Spacial SBX is a multi-purpose stainless steel 304L industrial box designed for use in harsh environments It is certified by BV, BVM and UL, and is rated IK10 (IEC 62262) for its high impact resis…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The Spacial SBX is a multi-purpose stainless steel 304L industrial box designed for use in harsh environments It is certified by BV, BVM and UL, and is rated IK10 (IEC 62262) for its high impact resistance, and IP66 (IEC 60529) for its dust and water resistance The box has a nominal height, width and depth of 300mm, 300mm and 120mm respectively It is made with a Scotch-Brite® brushed surface finish and consists of 4 cover screws, a cover and a body The cover is secured with a captive screw PZ2 outside the sealed area and can be removed for maintenance purposes The box has a net weight of 3,6kg and is compliant with IEC 62208 standards It can be stored in temperatures between -35-60°C and operated in temperatures between -35-80°C Directly wall mounted o by fixing lugs (to be ordered separately). The enclosure meets the directives IEC 62208 and UL508A, certified by BV and UL respectively. Also compliant with marine requirements of BV Marine Division. This device is qualified as a green premium product, with minimal use of harzardous substances.
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT SBX |
| Device application | Multi-purpose |
| Category | Industrial box |
| Device short name | SBX |
| Enclosure type | Flat face box |

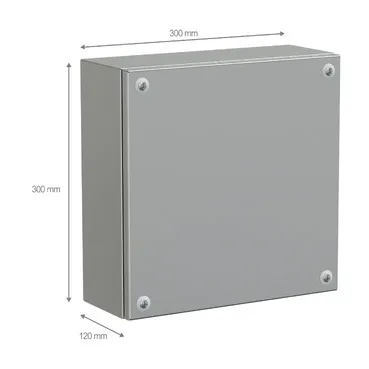

| Enclosure nominal height | 300 mm |
| Enclosure nominal width | 300 mm |
| Enclosure nominal depth | 120 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 4 cover screw, 1 cover, 1 body |
| Body type | Single piece body folded and welded |
| Type of front cover | Plain door |
| Cover fixing | Half turn metal screw |
| Lock type | Captive screw PZ2 outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Stainless steel 304L |
| Surface finish | Scotch-Brite® brushed |
| Standards | IEC 62208, UL, CUL |
| Product certifications | BV, BVM, UL |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Ambient air temperature for storage | -35…60 °C |
| Operating temperature | -35…80 °C |
| Net weight | 3.6 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.000 cm |
| Package 1 Width | 31.500 cm |
| Package 1 Length | 31.500 cm |
| Package 1 Weight | 3.644 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 143.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 231.520 kg |
| Warranty | 18 months |
