Schneider Electric NSYSBX15308
Spacial SBX stainless steel 304L industrial box is designed for a multi-purpose application It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it ha…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

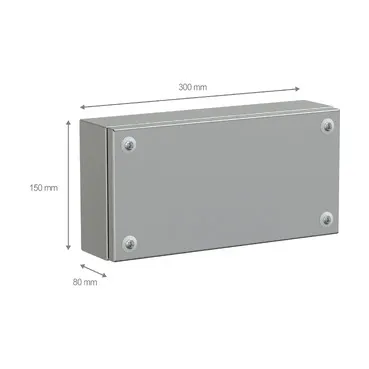

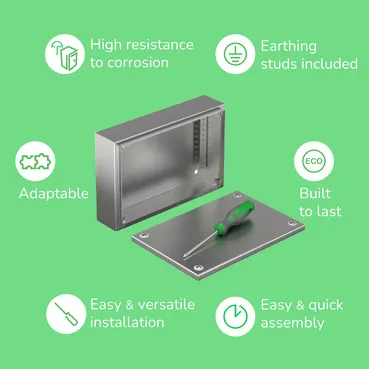

Spacial SBX stainless steel 304L industrial box is designed for a multi-purpose application It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This box has a nominal height, width and depth of 150mm, 300mm and 80mm respectively The box is made with a Scotch-Brite® brushed surface finish The box consists of 4 cover screw, a cover and a body It has a captive screw PZ2 outside the sealed area The cover can be removed for maintenance purposes The net weight of the enclosure is 1,9kg It is wall mounted and has a flat face box with a plain door The cover is fixed using a half turn metal screw
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT SBX |
| Device application | Multi-purpose |
| Category | Industrial box |
| Device short name | SBX |
| Enclosure type | Flat face box |
| Enclosure nominal height | 150 mm |
| Enclosure nominal width | 300 mm |
| Enclosure nominal depth | 80 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 4 cover screw, 1 cover, 1 body |
| Body type | Single piece body folded and welded |
| Type of front cover | Plain door |
| Cover fixing | Half turn metal screw |
| Lock type | Captive screw PZ2 outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Stainless steel 304L |
| Surface finish | Scotch-Brite® brushed |
| Standards | IEC 62208, UL, CUL |
| Product certifications | BV, BVM, UL |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Ambient air temperature for storage | -35…60 °C |
| Operating temperature | -35…80 °C |
| Net weight | 1.9 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 31.500 cm |
| Package 1 Width | 16.500 cm |
| Package 1 Length | 10.000 cm |
| Package 1 Weight | 1.904 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 56 |
| Package 2 Height | 47.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 116.624 kg |
| Warranty | 18 months |
