Schneider Electric NSYS3X8625T
Spacial S3X stainless steel 304L wall-mounting enclosure is designed for multi-purpose applications and it is perfect for harsh environments It has an IK08 rating (IEC62262) and an IP66 rating (IEC605…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

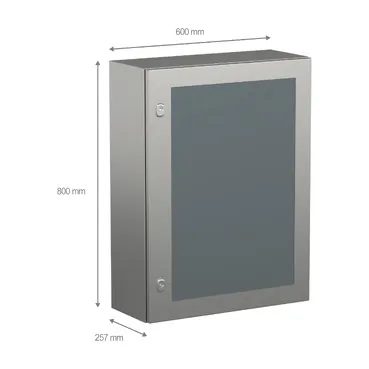

Spacial S3X stainless steel 304L wall-mounting enclosure is designed for multi-purpose applications and it is perfect for harsh environments It has an IK08 rating (IEC62262) and an IP66 rating (IEC60529) providing a high level of protection against dust and water It has a nominal height, width and depth of 800mm, 600mm and 250mm respectively The enclosure has a Scotch-Brite® brushed surface finish and it is composed of a body, a Securit glass door and a two points lock with a 3mm double-bar insert The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door can be removed for maintenance purposes
Specification
| Range | Spacial |
|---|---|
| Product name | Spacial S3X |
| Enclosure type | Multi-purpose |
| Category | Compact enclosure |
| Nominal height | 800 mm |
| Nominal width | 600 mm |
| Nominal depth | 250 mm |
| Product installation | Wall-mounting |
| Device composition | 1 body, 1 lock: door, 1 door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Glazed |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body and door: stainless steel 304L, Lock: zamak, Hinge: stainless steel, Door: Securit glass |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 22.58 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL 508 type A, CAN/CSA 22 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Environmental characteristic | Specific hygiene, Corrosive |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 82.500 cm |
| Package 1 Width | 61.000 cm |
| Package 1 Length | 82.500 cm |
| Package 1 Weight | 21.000 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 178.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 265.000 kg |
| Warranty | 18 months |
