Schneider Electric NSYMR128
Monobloc perforated plates with universal perforations for CRN, S3D, PLM. For enclosures H is1200 x W is800 mm. Multi-purpose accessory. Step slide or direct fixing on back studs mounting (M8 screws)….
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Monobloc perforated plates with universal perforations for CRN, S3D, PLM. For enclosures H is1200 x W is800 mm. Multi-purpose accessory. Step slide or direct fixing on back studs mounting (M8 screws). Telequick perforated. Cut-out dimensions is 11x26mm. Steel made, zinc coated surface finish. 1800 slots. Variant particularity is Installation in rear of enclosure.
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – H: 1200 mm W: 800 mm |
| Mounting location | Direct fixing on backstuds, Step slide |
| Mounting plate description | Telequick perforated |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | Screwed on backstuds – screw type M8, By fixing element |

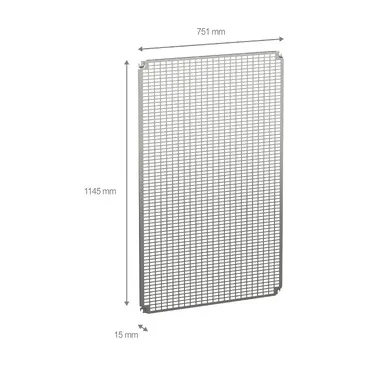

| Height | 1145 mm |
| Width | 751 mm |
| Depth | 15 mm |
| Thickness | 2 mm |
| Net weight | 6.4 kg |
| Number of slots | 1800 |
| Variant particularity | Installation in rear of enclosure |
| Cut-out dimensions | 11 x 26 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.500 cm |
| Package 1 Width | 75.000 cm |
| Package 1 Length | 114.500 cm |
| Package 1 Weight | 6.062 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 63 |
| Package 2 Height | 89.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 395.000 kg |
| Warranty | 18 months |
