Schneider Electric NSYMR126

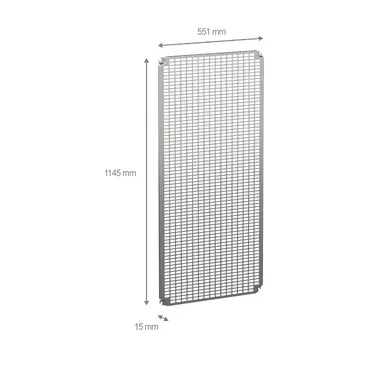

Monobloc perforated plates H1200xW600mm with universal perforations 11x26mm
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Mounting accessory |
| Product or component type |
Mounting plate |
| Device application |
Multi-purpose |
| Enclosure nominal dimensions |
– H: 1200 mm W: 1200 mm, – H: 1200 mm W: 600 mm |
| Mounting location |
Step slide, Direct fixing on backstuds |
| Mounting plate description |
Telequick perforated |
| Range compatibility |
PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set |
Set of 1 |
| Material |
Steel |
| Surface finish |
Zinc coated |
| Fixing mode |
Screwed on backstuds – screw type M8, By fixing element |
| Height |
1145 mm |
| Width |
551 mm |
| Depth |
15 mm |
| Thickness |
2 mm |
| Net weight |
4.78 kg |
| Number of slots |
1275 |
| Variant particularity |
With enclosures H1200 x W1200, Installation in rear of enclosure |
| Cut-out dimensions |
11 x 26 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
114.500 cm |
| Package 1 Width |
55.500 cm |
| Package 1 Length |
1.500 cm |
| Package 1 Weight |
4.780 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
76 |
| Package 2 Height |
90.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
383.000 kg |
| Warranty |
18 months |
