Schneider Electric NSYMR106

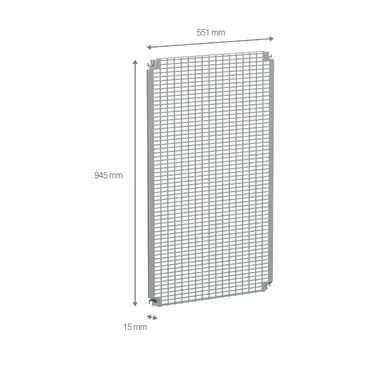

Monobloc perforated plates H1000xW600mm with universal perforations 11x26mm
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – H: 1000 mm W: 600 mm |
| Mounting location | Direct fixing on backstuds, Step slide |
| Mounting plate description | Telequick perforated |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | Screwed on backstuds – screw type M8, By fixing element |
| Height | 945 mm |
| Width | 551 mm |
| Depth | 15 mm |
| Thickness | 2 mm |
| Net weight | 4.04 kg |
| Number of slots | 1088 |
| Variant particularity | Installation in rear of enclosure |
| Cut-out dimensions | 11 x 26 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 55.500 cm |
| Package 1 Length | 94.500 cm |
| Package 1 Weight | 3.818 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 89.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 398.500 kg |
| Warranty | 18 months |
