Schneider Electric NSYCRN88200

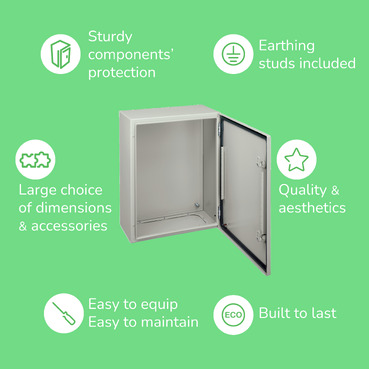

Spacial CRN steel wall-mounting enclosure is designed for multi-purpose applications and is certified by cUL, UL, and DNV-GL It has a nominal height, width, and depth of 800mm, 800mm, and 200mm, respe…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Spacial CRN steel wall-mounting enclosure is designed for multi-purpose applications and is certified by cUL, UL, and DNV-GL It has a nominal height, width, and depth of 800mm, 800mm, and 200mm, respectively The enclosure is grey-coloured (RAL 7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a plain door, a lock, and two cable gland plates (bottom) The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 25,813kg It has an IK10 (IEC 62262) rating and an IP66 rating (IEC 60529), making it suitable for use in harsh environments
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 800 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 200 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock, 2 cable gland plate: bottom |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Body type | Sides made from a single folded section, Back welded with double profile forming a protected sealed area |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, UL, DNV-GL |
| Net weight | 25.813 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 22.000 cm |
| Package 1 Width | 81.000 cm |
| Package 1 Length | 81.000 cm |
| Package 1 Weight | 25.000 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 175.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 263.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
