Schneider Electric NSYCRN54150P
Spacial CRN is a multi-purpose wall-mounting steel enclosure designed for use in harsh environments It has an IK10 (IEC 62262) and IP66 (IEC 60529) rating, providing high resistance to impacts and dus…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

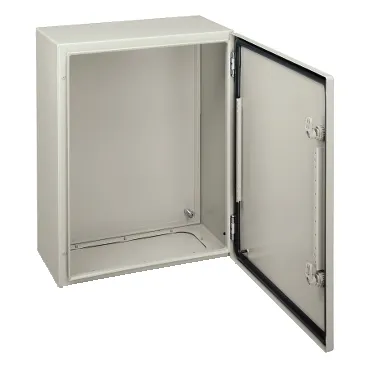

Spacial CRN is a multi-purpose wall-mounting steel enclosure designed for use in harsh environments It has an IK10 (IEC 62262) and IP66 (IEC 60529) rating, providing high resistance to impacts and dust and water This enclosure has a nominal height, width, and depth of 500mm, 400mm, and 150mm, respectively It is grey-coloured (RAL 7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door with a 3mm double-bar lock, and a mounting plate made of galvanised steel It is possible to change the opening side of the door (reversible) The door, the cable gland plate, and the mounting plate can be removed for maintenance purposes The net weight of the enclosure is 9,914kg The back of the enclosure is welded with a double profile forming a protected sealed area, while the sides are made from a single folded section The enclosure is certified by UL, cUL, and DNV-GL This compact enclosure is c.UL certified.
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 500 mm |
| Enclosure nominal width | 400 mm |
| Enclosure nominal depth | 150 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 cable gland plate, 1 door with lock, 1 mounting plate |
| Door type | Plain |
| Mounting plate description | Plain |
| Body type | Back welded with double profile forming a protected sealed area, Sides made from a single folded section |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL, cUL, DNV-GL |
| Net weight | 9.914 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 51.000 cm |
| Package 1 Width | 16.500 cm |
| Package 1 Length | 41.000 cm |
| Package 1 Weight | 9.914 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 56 |
| Package 2 Height | 178.500 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 568.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
