Schneider Electric NSYCRN325150P
Spacial CRN steel wall-mounting enclosure for multi-purpose applications It is designed for use in harsh environments, withstanding high impact due to its IK10 (IEC62262) rating and high resistance to…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

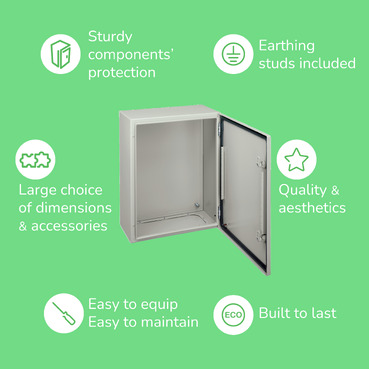

Spacial CRN steel wall-mounting enclosure for multi-purpose applications It is designed for use in harsh environments, withstanding high impact due to its IK10 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 300mm, 250mm, and 150mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door with lock, and a mounting plate It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door, cable gland plate, and mounting plate can be removed for maintenance purposes The mounting plate is made of galvanised steel and has a plain finish The net weight of the enclosure is 4,502kg This compact enclosure is c.UL certified.
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |

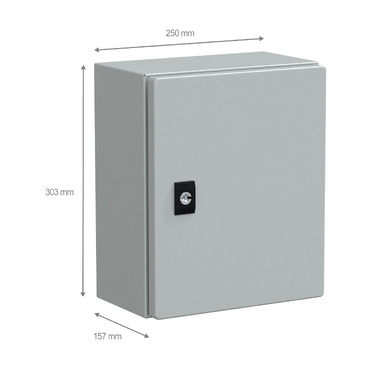

| Enclosure nominal height | 300 mm |
| Enclosure nominal width | 250 mm |
| Enclosure nominal depth | 150 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 cable gland plate, 1 door with lock, 1 mounting plate |
| Door type | Plain |
| Mounting plate description | Plain |
| Body type | Sides made from a single folded section, Back welded with double profile forming a protected sealed area |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL, cUL, DNV-GL |
| Net weight | 4.502 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 32.000 cm |
| Package 1 Width | 26.500 cm |
| Package 1 Length | 17.500 cm |
| Package 1 Weight | 4.410 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 147 |
| Package 2 Height | 194.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 661.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
