Schneider Electric NSYCRN108300P
Spacial CRN steel wall-mounting enclosure is designed for multi-purpose applications in harsh environments It has a nominal height, width, and depth of 1000mm, 800mm, and 300mm, respectively The enclo…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

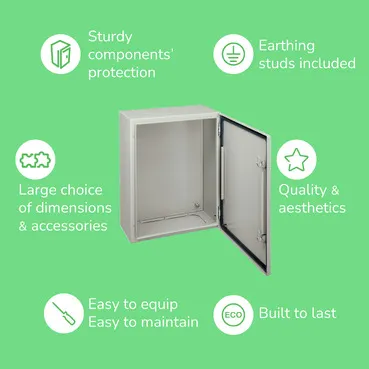

Spacial CRN steel wall-mounting enclosure is designed for multi-purpose applications in harsh environments It has a nominal height, width, and depth of 1000mm, 800mm, and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish It consists of a body, a plain door with a 3mm double-bar lock, a mounting plate, and two cable gland plates (bottom) The door can be opened up to 120°, allowing easy access to the equipment inside The door, cable gland plates, and mounting plate can be removed for maintenance purposes The mounting plate is made from galvanised steel The net weight of the enclosure is 49kg It has an IK10 (IEC62262) rating and an IP66 rating (IEC60529) for high resistance to dust and water The variant particularity includes a back welded with double profile forming a protected sealed area and sides made from a single folded section This enclosure is certified by UL, cUL, and DNV-GL
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 1000 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 300 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door with lock, 1 mounting plate, 2 cable gland plate: bottom |
| Door type | Plain |
| Mounting plate description | Plain |
| Body type | Back welded with double profile forming a protected sealed area, Sides made from a single folded section |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL, cUL, DNV-GL |
| Net weight | 49 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 32.000 cm |
| Package 1 Width | 81.000 cm |
| Package 1 Length | 102.000 cm |
| Package 1 Weight | 49.000 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 174.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 312.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
